OBD II HAND HELD SCAN TOOL BUILT IN OBD II LIBRARY

This compact, multi-function tool is one of the easiest and quickest solutions to pinpoint Onboard Diagnostic System (OBD) faults and can be used on local and imported vehicles that support the OBDII vehicle communication system.

Some of the features include:

• Works on all 1996 and later OBD II compliant vehicles.
• Reads hard and memory codes
• Turns off Check Engine Light (MIL)
• Clears codes and resets monitors
• View live data stream
• View freeze frame data
• I/M monitor readiness test
• Retrieves vehicle information (VIN)
• Multilingual menu options
• Supports CAN and all other OBD-II protocols
• Built-in OBD-II Fault Code lookup library
• Limited one (1) year warranty
• Suitable for the savvy DIY user

Specifications

Dimensions
Length: 125mm
Width: 70mm
Height: 22mm
Weight: 0.23 kg

Display: Backlit, 128 × 64 pixel display with contrast adjustment
Operating Temperature: 0 to 60° C (32 to 140 F°)
Storage Temperature: –20 to 70°C (-4 to 158 F°)
External Power: 8.0 to 18.0 V power provided via vehicle battery

Kit includes

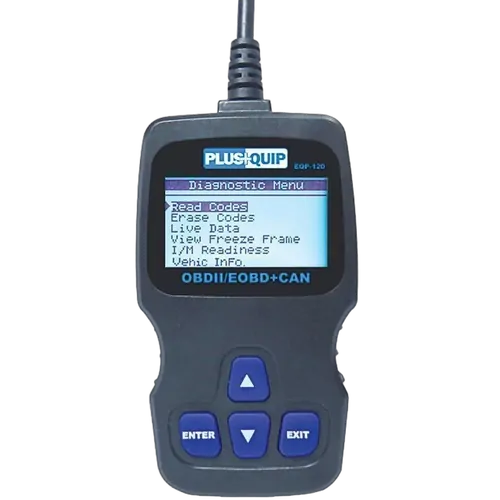

PLUSQUIP EQP-120 OBDII/EOBD Code Reader
