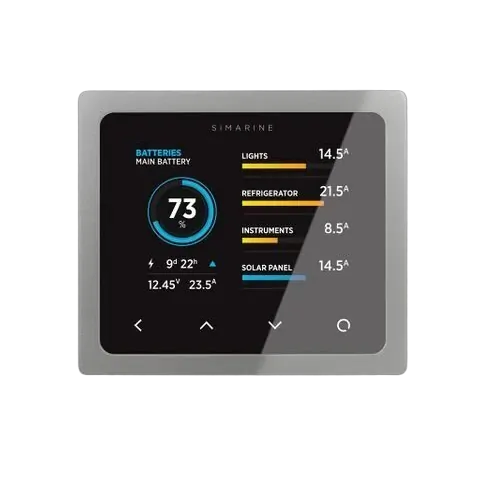

Pico Display Panel Mount SilverStock Code: Si-Pico-4

Description
Specifications

<div class="et_pb_tab clearfix et_pb_active_content et-pb-active-slide">
<div class="et_pb_tab_content">
<h2 class="yikes-custom-woo-tab-title yikes-custom-woo-tab-title-features">Features</h2><p>SIMARINE PICO sets new standards for marine battery and tank monitors in ﬁelds of design, functionality, connectivity and ease of use.</p>
<p>PICO’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It’s water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense® touch buttons.</p>
<p>The Pico system provides you with a simple overview of all important details regarding your battery (voltage, current, amp hours, battery capacity in%, battery temperature) and also tank level and temperature indications.</p>
<p style="text-align: center;">Free SIMARINE Android and iOS Apps:</p>
<p><img loading="lazy" class="aligncenter" src="https://enerdrive.com.au/wp-content/uploads/2018/11/phone2-267x300.png" alt="" width="267" height="300"></p>
<p>Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.</p>
<p><img loading="lazy" class="wp-image-14030 size-large aligncenter" src="https://enerdrive.com.au/wp-content/uploads/2018/11/Simarine-1024x874-1024x874.jpg" alt="" width="885" height="755" srcset="https://enerdrive.com.au/wp-content/uploads/2018/11/Simarine-1024x874.jpg 1024w, https://enerdrive.com.au/wp-content/uploads/2018/11/Simarine-1024x874-300x256.jpg 300w, https://enerdrive.com.au/wp-content/uploads/2018/11/Simarine-1024x874-768x656.jpg 768w, https://enerdrive.com.au/wp-content/uploads/2018/11/Simarine-1024x874-418x357.jpg 418w, https://enerdrive.com.au/wp-content/uploads/2018/11/Simarine-1024x874-600x512.jpg 600w" sizes="(max-width: 885px) 100vw, 885px"></p>

</div>
</div>

<div class="et_pb_tab clearfix et-pb-active-slide" style="z-index: 1; display: block; opacity: 1;">
<div class="et_pb_tab_content">
<h2 class="yikes-custom-woo-tab-title yikes-custom-woo-tab-title-specifications">Specifications</h2><div id="tablepress-537-scroll-wrapper" class="tablepress-scroll-wrapper">

<table id="tablepress-537" class="tablepress tablepress-id-537 tablepress-responsive">
<thead>
<tr class="row-1 odd">
   <th class="column-1">Model</th><th class="column-2">Simarine Pico</th>
</tr>
</thead>
<tbody class="row-hover">
<tr class="row-2 even">
   <td class="column-1">SI-PICO1</td><td class="column-2">Standalone Black Bezel</td>
</tr>
<tr class="row-3 odd">
   <td class="column-1">SI-PICO2</td><td class="column-2">Standalone Silver Bezel</td>
</tr>
<tr class="row-4 even">
   <td class="column-1">SI-PICO3</td><td class="column-2">Panel Mount Black Bezel</td>
</tr>
<tr class="row-5 odd">
   <td class="column-1">SI-PICO4</td><td class="column-2">Panel Mount Silver Bezel</td>
</tr>
<tr class="row-6 even">
   <td class="column-1">Power Source Voltage Range</td><td class="column-2">6-35V</td>
</tr>
<tr class="row-7 odd">
   <td class="column-1">Temperature Range</td><td class="column-2">-20 - +70°C</td>
</tr>
<tr class="row-8 even">
   <td colspan="2" class="column-1">Power Consumption at 12V</td>
</tr>
<tr class="row-9 odd">
   <td class="column-1">Operating, WiFi On, 100% Illumination</td><td class="column-2">90mA</td>
</tr>
<tr class="row-10 even">
   <td class="column-1">Operating, WiFi Off, 70% Illumination</td><td class="column-2">35mA</td>
</tr>
<tr class="row-11 odd">
   <td class="column-1">Operating, WiFi Off, 0% Illumination</td><td class="column-2">18mA</td>
</tr>
<tr class="row-12 even">
   <td class="column-1">Power Off, logger still active</td><td class="column-2">5mA</td>
</tr>
<tr class="row-13 odd">
   <td colspan="2" class="column-1">Resolution</td>
</tr>
<tr class="row-14 even">
   <td class="column-1">Current (A)</td><td class="column-2">±0.01A</td>
</tr>
<tr class="row-15 odd">
   <td class="column-1">Voltage (V)</td><td class="column-2">±0.01V</td>
</tr>
<tr class="row-16 even">
   <td class="column-1">Amp Hours (Ah)</td><td class="column-2">±0.1Ah</td>
</tr>
<tr class="row-17 odd">
   <td class="column-1">SOC - State of Charge (0-100%)</td><td class="column-2">±0.01A</td>
</tr>
<tr class="row-18 even">
   <td class="column-1">Temperature</td><td class="column-2">±0.1 °C/°F</td>
</tr>
<tr class="row-19 odd">
   <td class="column-1">Voltage Inputs Range</td><td class="column-2">0-75V</td>
</tr>
<tr class="row-20 even">
   <td class="column-1">WiFi Radio Frequency Band</td><td class="column-2">2.4GHz</td>
</tr>
<tr class="row-21 odd">
   <td colspan="2" class="column-1">Dimensions (without Connectors)</td>
</tr>
<tr class="row-22 even">
   <td class="column-1">Standalone</td><td class="column-2">89 x 84 x 10mm</td>
</tr>
<tr class="row-23 odd">
   <td class="column-1">Panel Mount</td><td class="column-2">108.5 x 94 x 10mm</td>
</tr>
<tr class="row-24 even">
   <td class="column-1">Connectivity</td><td class="column-2">Up to</td>
</tr>
<tr class="row-25 odd">
   <td class="column-1">Batteries</td><td class="column-2">6</td>
</tr>
<tr class="row-26 even">
   <td class="column-1">Shunts</td><td class="column-2">24</td>
</tr>
<tr class="row-27 odd">
   <td class="column-1">Temperature Sensors</td><td class="column-2">10</td>
</tr>
<tr class="row-28 even">
   <td class="column-1">Tank Level Sensors</td><td class="column-2">14</td>
</tr>
<tr class="row-29 odd">
   <td class="column-1">Inclinometer Sensors</td><td class="column-2">2</td>
</tr>
<tr class="row-30 even">
   <td class="column-1">Smartphone Applications</td><td class="column-2">1</td>
</tr>
<tr class="row-31 odd">
   <td class="column-1">Logger Capacity</td><td class="column-2">Up to 3 Months</td>
</tr>
</tbody>
</table>
