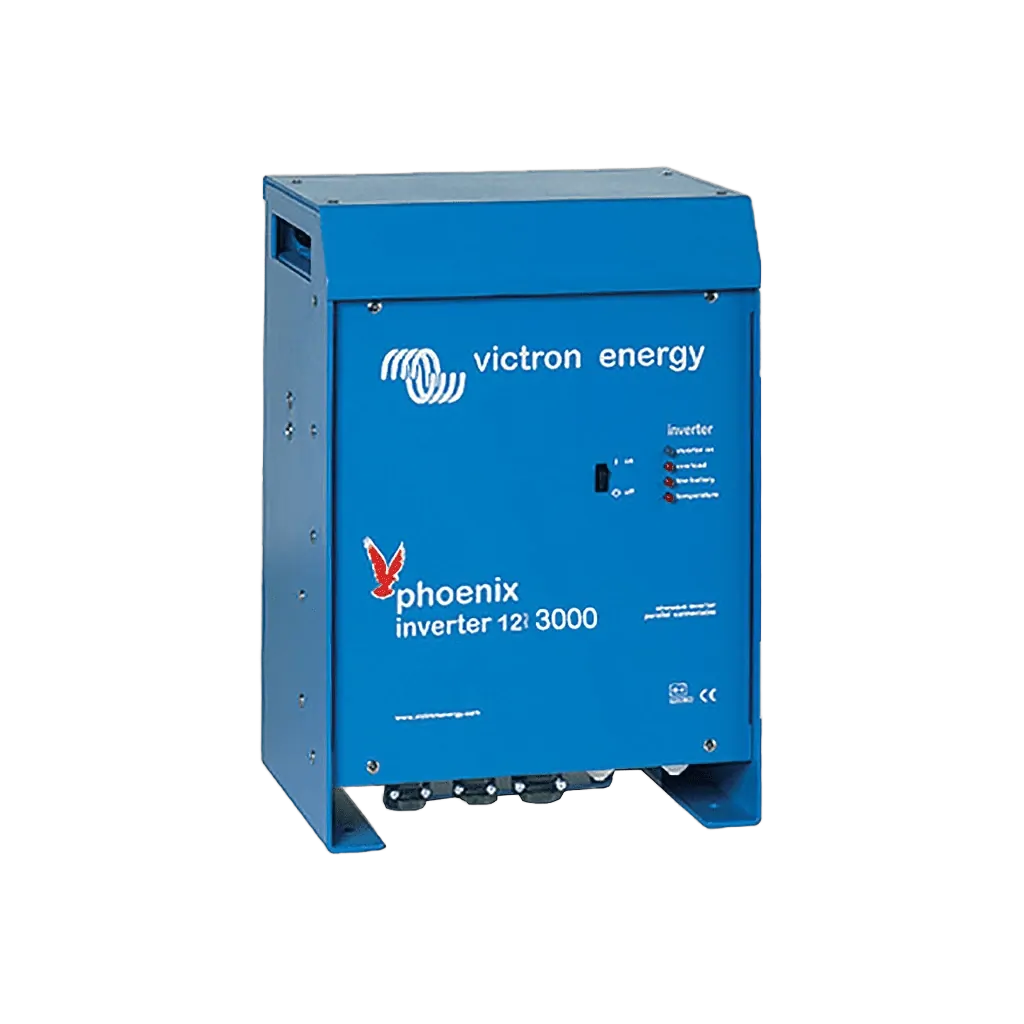

Victron Phoenix inverter:

Parallel and 3-phase operation capability-



Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.



SinusMax - Superior engineering-

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.





Extra start-up power-

A unique feature of the SinusMax technology is very high start-up power. Conventional high  frequency  technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.





Virtually unlimited power thanks to parallel and 3-phase operation capability-

Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.





To transfer the load to another AC source: the automatic transfer switch-

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The  switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).





Computer interface-

All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface

(see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.








Phoenix Inverter





12/3000





24/3000





48/3000





Parallel and 3-phase operation





Yes





INVERTER





Input voltage range (V DC)





38 – 66V











Output





Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1)





Cont. output power at 25ºC (VA) (2)





3000





Cont. output power at 25ºC (W)





2400





Cont. output power at 40ºC (W)





2200





Cont. output power at 65ºC (W)





1700





Peak power (W)





6000





Max. efficiency 12/ 24 /48 V (%)





93 / 94 / 95





Zero load power 12 / 24 / 48 V (W)





20 / 20 / 25





Zero load power in AES mode (W)





15 / 15 / 20





Zero load power in Search mode (W)





8 / 10 / 12





GENERAL





Programmable relay (3)





Yes





Protection (4)





a - g





VE.Bus communication port





For parallel and three phase operation, remote monitoring and system integration





Remote on-off





Yes





Common Characteristics





Operating temperature range: -40 to +65ºC (fan assisted cooling)





Humidity (non-condensing): max 95%





ENCLOSURE





Common Characteristics





Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21





Battery-connection





2+2 M8 bolts





230 V AC-connection





Screw terminals





Weight (kg)





18





Dimensions (hxwhd in mm)





362x258x218





STANDARDS





Safety





EN 60335-1





Emission Immunity





EN 55014-1 / EN 55014-2





1)  Canbeadjustedto60Hzandto240V





2)  Non-linear load, crest factor3:1





3)Programmable relay that can a.o. be set for general alarm, DC under voltage or genset start/stopfunction.





AC rating: 230 V / 4 A





DC rating: 4 A up to 35 VDC, 1A up to 60VDC





















SKU PIN123020000
Barcode # 8719076023579
Brand Victron
Shipping Weight 19.0000kg

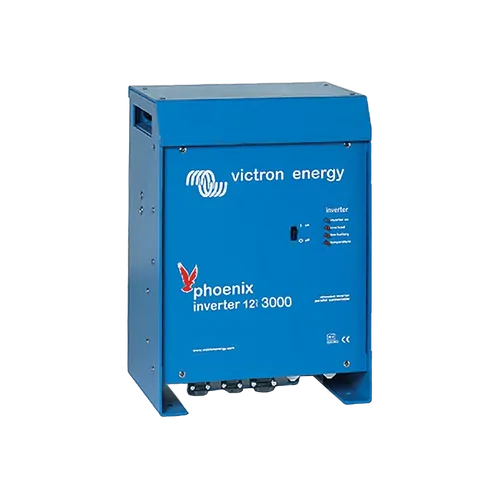

Phoenix Inverter 12/3000

SKU: PIN123020000
Sale price
$2,400.99
RRP $2,802.80
Earn 24,000 Outback Rewards Points
Sale price
$2,400.99
DON'T PAY RRP $2,802.80
PayPal Checkout
4 payments of $600.25

afterpay More info.

Make 4 payments of $600.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $600.25

Calculate Shipping
