Selected Part Number: MX800.1
General Product Information



Monoblock Amplifier


Phoenix Gold's MX amplifier series is a sub-compact series of amplifiers engineered for vehicles where space is at a premium, like trucks, jeeps and sports cars.



Small Foot Print Is Only The Beginning

Built on the heritage of Phoenix Gold Legacy, the MX Series 800 watt monoblock amplifier is built to last.



Designed with a Class-D Topology, the MX800.1 features high current MOSFETs and a unregulated power supply offering superior output performance for your subwoofer configuration.



Designed to be stable at 1 Ohm, the Phoenix Gold MX 800.1 can be used with many big and unique subwoofer installations backed with enough power to please.



To make sure it keeps its cool, each MX Amplifier features 'Balanced Flow Dissipation' BFD technology to increase the amplifiers cooling abilities in hot temperatures.



Look The Part

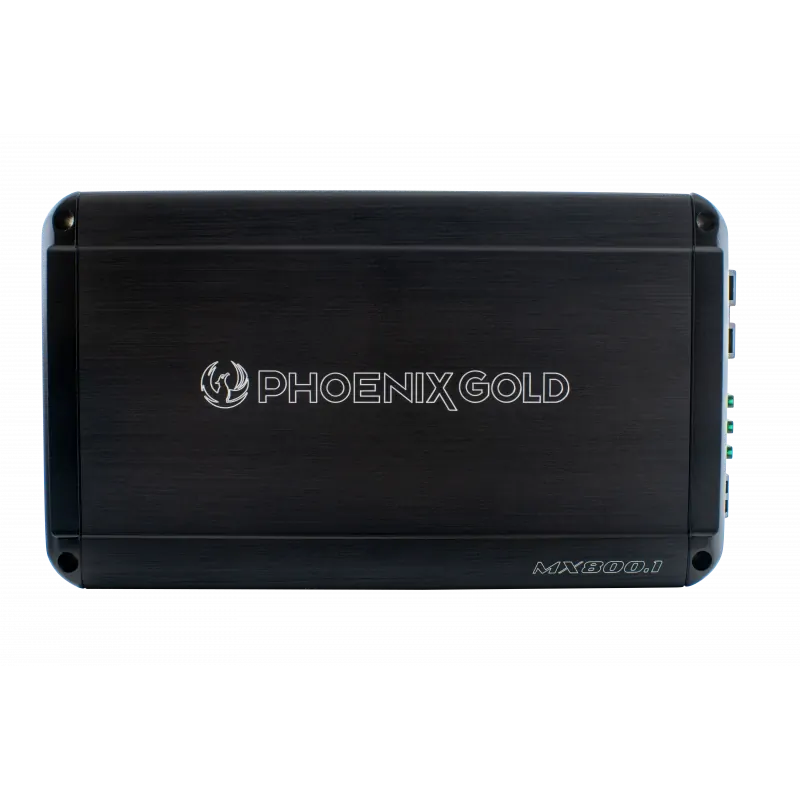

Not only does the MX Series amplifiers sound amazing, they also look stunning thanks to the black anodized brushed alloy finish and solid construction.



Each MX Amplifier is made from solid alloy with black satin end caps for a sleek and subtle finish.



Featuring Laser etched Phoenix Gold and MX logos and a small footprint, these amplifiers can be easily installed into many locations whether on display or not, will suit your installation we're sure.



Audio Precision Quality Verification

Each MX Series amplifier is bench tested in the factory using Audio Precision quality control verification for true RMS output and quality of output.



Every MX Series Phoenix Gold amplifier includes its own birth certificate with serial number, bench tested output and quality control stamp for piece of mind.







Connecting You The Right Way

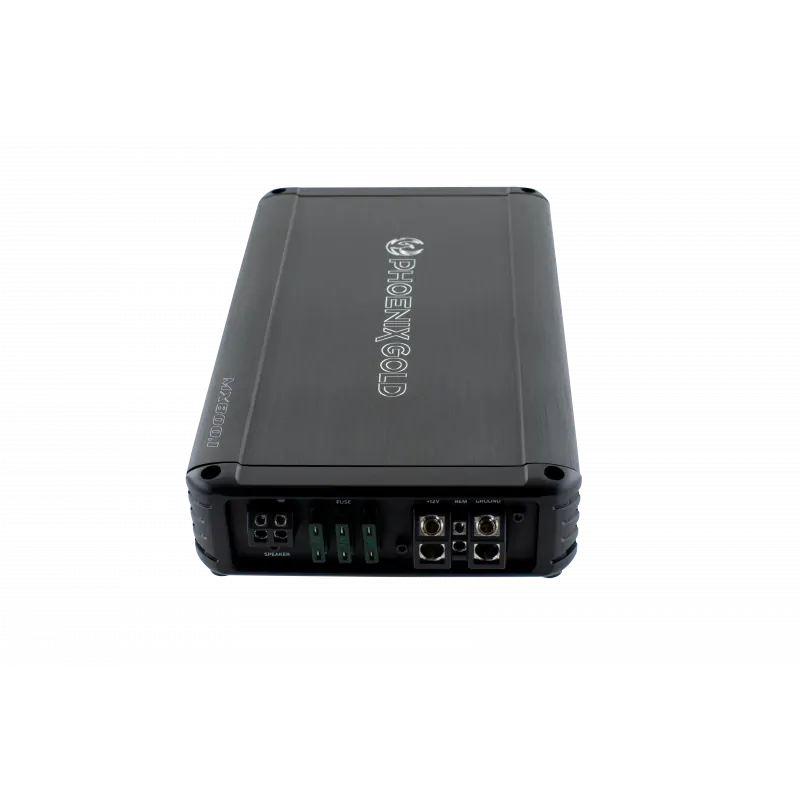

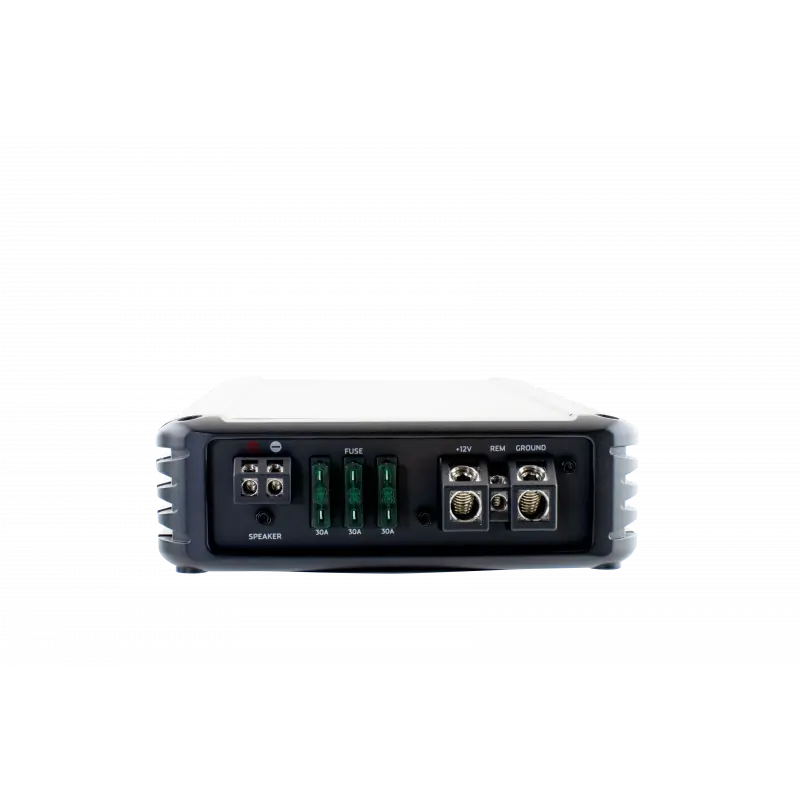

Make sure your getting the most solid connection with the MX Series Amplifier lock down Alley Key style terminals for cabling on one side of the amplifier.

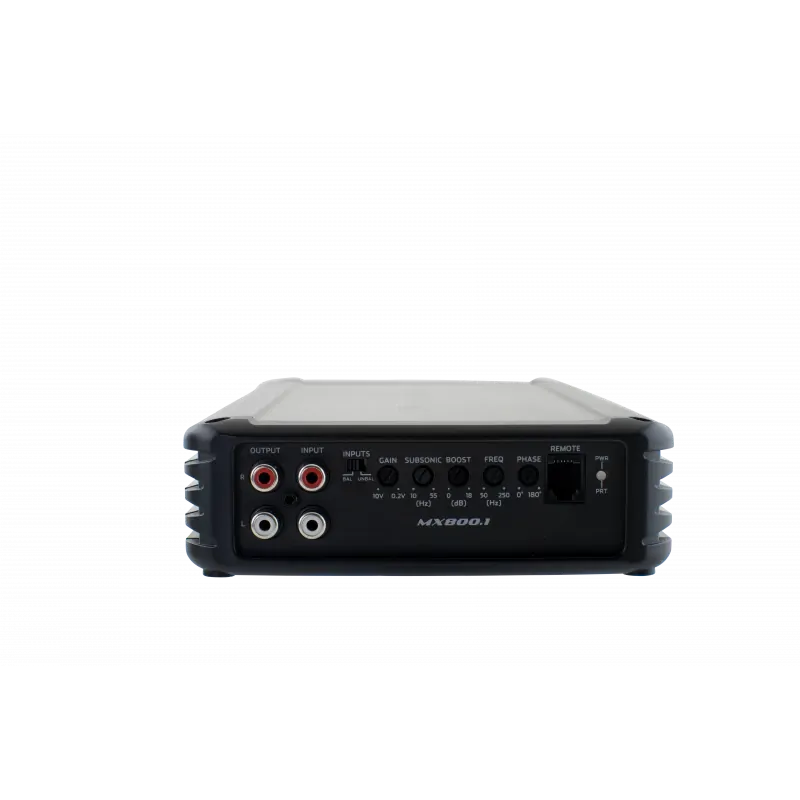

On the other end you will find RCA level inputs with RCA pre-out connections for linking multiple MX Series monoblock amplifiers, as well as a slew of pot controls for amplifier level matching and setup.



Remain In Control

Control your subwoofer level directly from your drivers seat with the included flush mount bass control knob and harness included with every MX Series monoblock amplifier.











What Do You Get?

Specifications

Inputs

  • Preamp Inputs: 2 Balanced or Unbalanced
  • Preamp Input Voltage Range:

500 mV – 10 Vrms (Balanced)

200mV to 6 Vrms (Unbalanced)



Outputs

Rated Continuous (RMS) Power at 14.4V:

  • 4 Ω – 350 W RMS
  • 2 Ω – 500 W RMS
  • 1 Ω – 800 W RMS
  • Preamp Output: 2CH Pass Through



Performance

  • Frequency Response: 15 Hz – 250 kHz
  • Signal to Noise: CEA Standard >90dB
  • THD+N: < 1%
  • Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 3 x 30 A
  • Crossover: 12 dB/octave Linkwitz-Riley, 50Hz – 250Hz
  • PFM Subsonic Filter: 10Hz – 55Hz 12 dB/octave Linkwitz-Riley
  • Bass Boost 0 – +18dB @ 45Hz
  • Variable Phase 0 – 180 Degrees



Whats In The Box

1x Amplifier

3x 30 Amp Fuses

1x Bass Control Knob

1x Manual

1x That Fresh Funky Feeling

Check Out These Recommended Accessories

4GA Amplifier Wiring Kit

Part Number: SK4241

4000 Series RCA Lead

Part Number: SI4217

12" Slimline Subwoofer

Part Number: MX12D4

12" Performance Subwoofer

Part Number: RX212S

Important Product Compatibility Information
Rated Continuous (RMS) Power @ 14.4v

4Ω – 350w RMS / 2Ω – 520w RMS / 1Ω – 800w RMS

Input Channels

2 Channel RCA

RCA Pre-Outs

2 Channel Stereo

Total Harmonic Distortion Rating

Less Than 1%

Crossover Type

LINKWITZ RILEY 12dB FLAT/HP/LP

Crossover Frequency

Adjustable from 50Hz to 250Hz

Dimensions

258mm x 150mm x 48.5mm

Product Vehicle Applications
SKU MX800.1
Barcode # 609098828925
Brand Phoenix Gold
Shipping Weight 5.0000kg

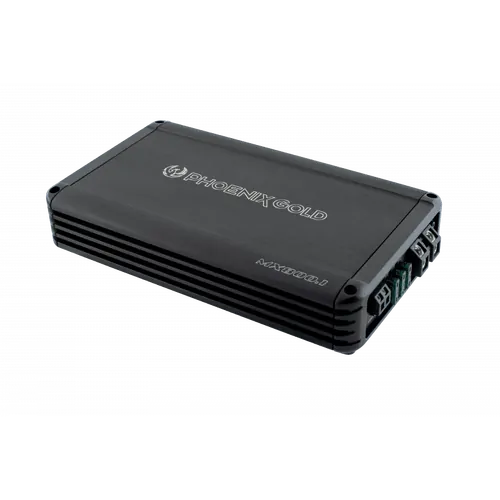

Phoenix Gold Mx Series Monoblock, 800 Watt - Class D
