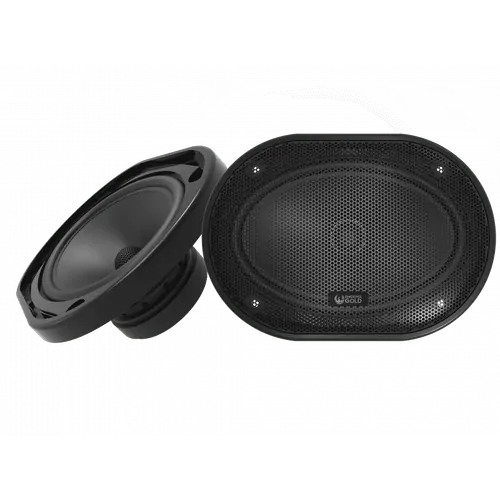

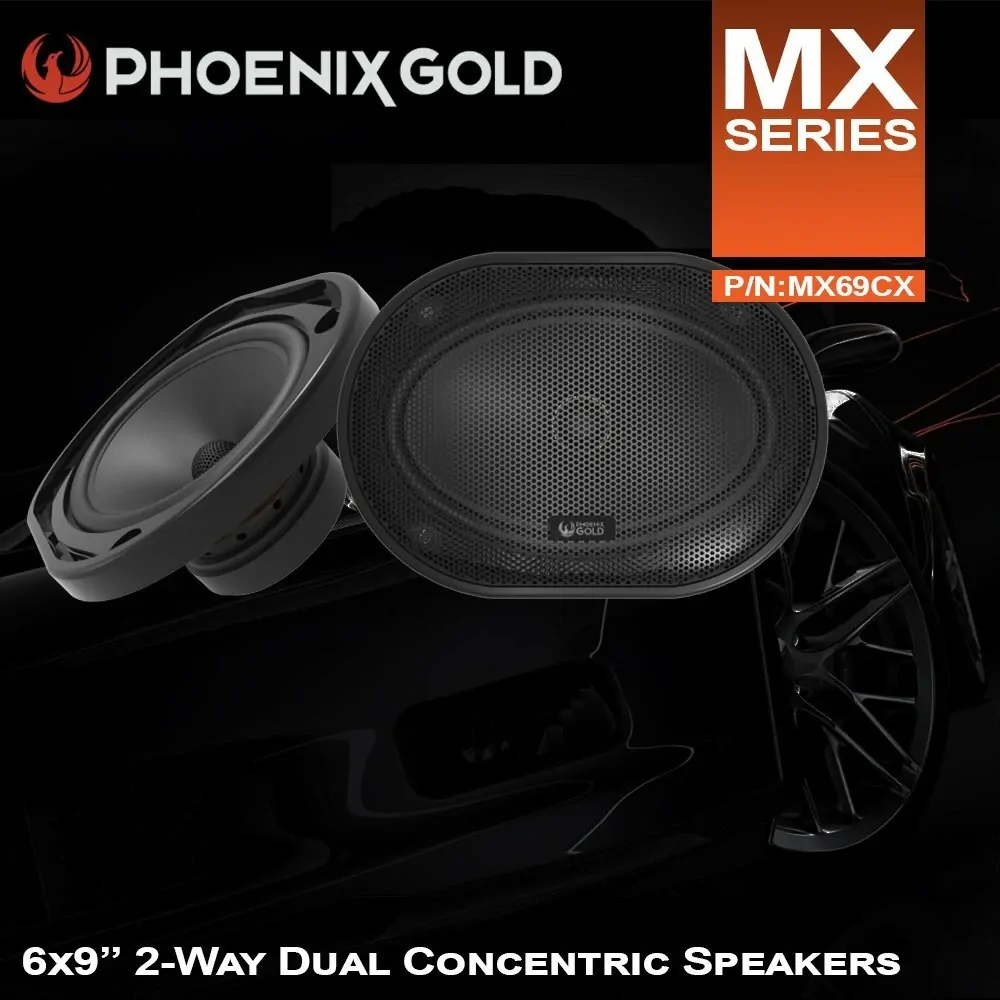

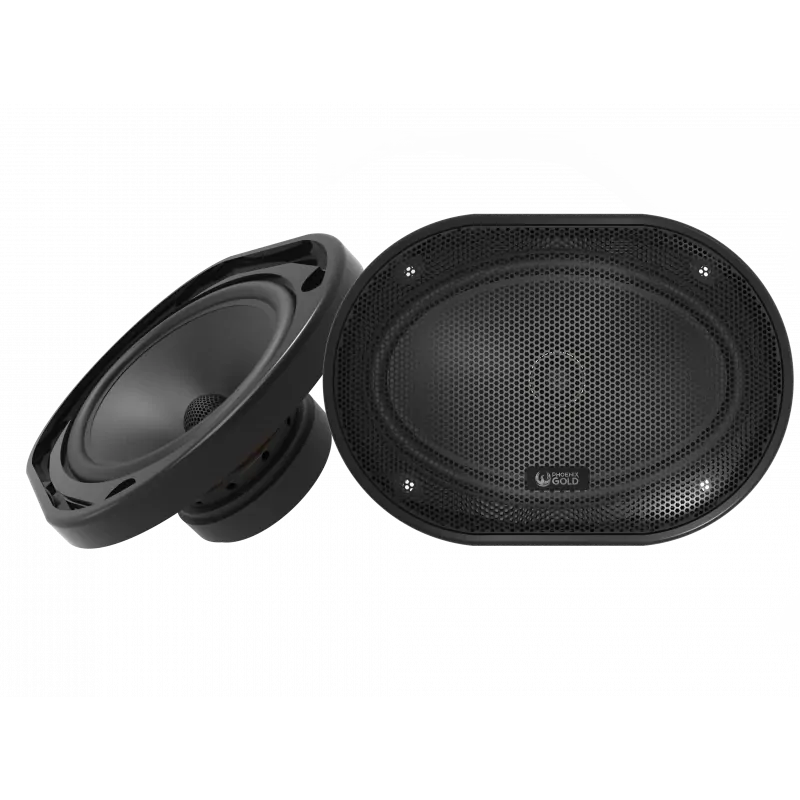

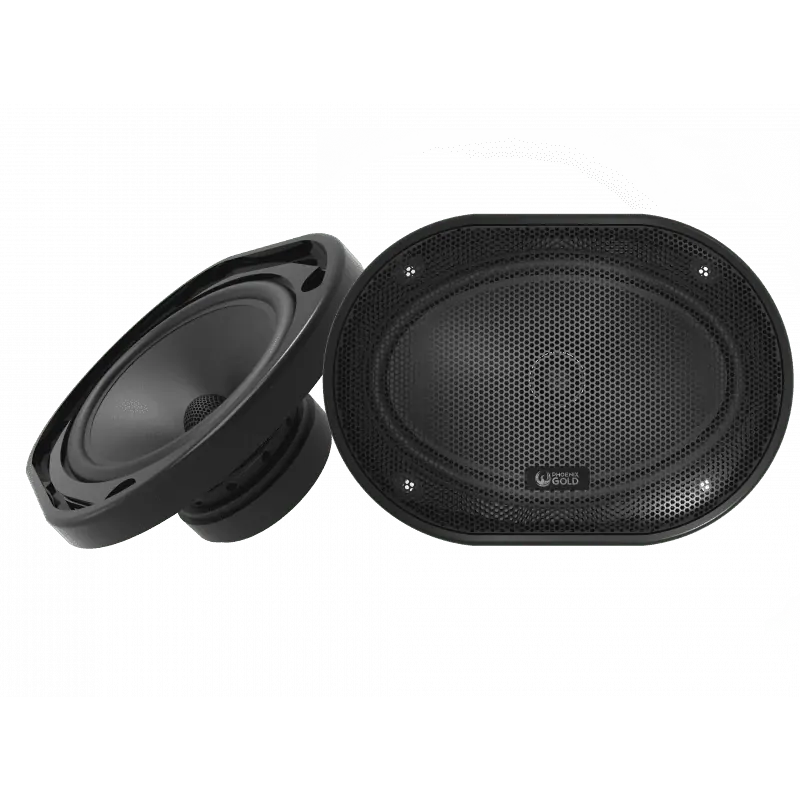

MX Series Concentric 6×9 Speakers
Create an engrossing listening experience in your vehicle with detail, impact and tonality with PG
Not Your Ordinary Speaker
With its 'Dual Concentric Coaxial Design', the MX Series allows sound to emanate from a single point eliminating cancellation and phase issues found in most common 'Coaxial Speaker' design.
Each speaker is fitted with a unique waveguide focusing the tweeter providing a smooth blend of mid-range and higher frequencies for a very even sound not found in classic 2-way coaxial speaker design.
Great In Factory Applications
With all the combined speaker design cues of the MX Series, application into factory speaker vehicle locations are where it really shines.
As vehicle speaker locations are not always optimal, the unique concentric speaker setup offers amazing off-axis performance creating an engrossing listening experience with detail, impact and tonality.
Headunit or Amplifier Applications
With a 100w RMS power rating, the Phoenix Gold MX Series speakers can be easily driven off a high powered amplifier for optimum audio performance.
Don't have an amplifier? Even at reduced power levels, the MX Series full range speakers still sound amazing off a headunit.
What Do You Get?
Specifications
Power Handling
- RMS Power Handling – 100 Watts
- Peak Power Handling – 150 Watts
Speaker Dimensions
- Speaker Size – 6×9"
- Mounting Depth – 75mm
- Tweeter Size – 25mm
Hardcore Specifications
- Frequency Response 55hz-20khz
- Impedance 4ohm
- FS 55hz
- Vas 19.581Lrt
- Xmax 11mm
- Qts 0.592
- Sensitivity (1W/M) 90dB
- Cone Material PP cone
- Surround Material rubber surround
- Tweeter Material silk
- Magnet diameter φ100x15mm
- Magnet Weight 469.5g
What's In The Box
2x 6.5" MX Series Full Range Speakers
2x Metal Mesh Speaker Grills
1x Phoenix Gold Decal
1x Manual Card
| Woofer Size |
6×9" |
|---|---|
| Power Rating |
100w RMS / 200w MAX |
| Voice Coil Configuration |
Single 4 Ohm |
| Woofer Mounting Depth |
75mm |
| SKU | MX69CX |
|---|---|
| Barcode # | 609098829199 |
| Brand | Phoenix Gold |
| Shipping Weight | 4.0000kg |
