Selected Part Number: MX57CX
General Product Information



MX Series Concentric 5×7 Speakers


Create an engrossing listening experience in your vehicle with detail, impact and tonality with PG



Not Your Ordinary Speaker

With its 'Dual Concentric Coaxial Design', the MX Series allows sound to emanate from a single point eliminating cancellation and phase issues found in most common 'Coaxial Speaker' design.



Each speaker is fitted with a unique waveguide focusing the tweeter providing a smooth blend of mid-range and higher frequencies for a very even sound not found in classic 2-way coaxial speaker design.



Great In Factory Applications

With all the combined speaker design cues of the MX Series, application into factory speaker vehicle locations are where it really shines.

As vehicle speaker locations are not always optimal, the unique concentric speaker setup offers amazing off-axis performance creating an engrossing listening experience with detail, impact and tonality.



Headunit or Amplifier Applications

With a 100w RMS power rating, the Phoenix Gold MX Series speakers can be easily driven off a high powered amplifier for optimum audio performance.



Don't have an amplifier? Even at reduced power levels, the MX Series full range speakers still sound amazing off a headunit.



What Do You Get?

Specifications

Power Handling

  • RMS Power Handling – 100 Watts
  • Peak Power Handling – 150 Watts



Speaker Dimensions

  • Speaker Size – 5×7"
  • Mounting Diameter – 126 x 182mm
  • Mounting Depth – 56mm
  • Tweeter Size – 19mm



Hardcore Specifications

  • Frequency Response 67hz-20khz
  • Impedance 4ohm
  • FS 67hz
  • Vas 10.90Lrt
  • Xmax 10mm
  • Qts 1.278
  • Sensitivity (1W/M) 90dB
  • Cone Material PP cone
  • Surround Material rubber surround
  • Tweeter Material silk
  • Magnet diameter φ80x12mm
  • Magnet Weight 226g



What's In The Box

2x 5×7" MX Series Full Range Speakers

2x Metal Mesh Speaker Grills

1x Phoenix Gold Decal

1x Manual Card

Important Product Compatibility Information
Woofer Size

5×7"

Power Rating

100w RMS / 150w MAX

Voice Coil Configuration

Single 4 Ohm

Woofer Mounting Depth

56mm

Product Vehicle Applications
SKU MX57CX
Barcode # 609098829205
Brand Phoenix Gold
Shipping Weight 5.0000kg

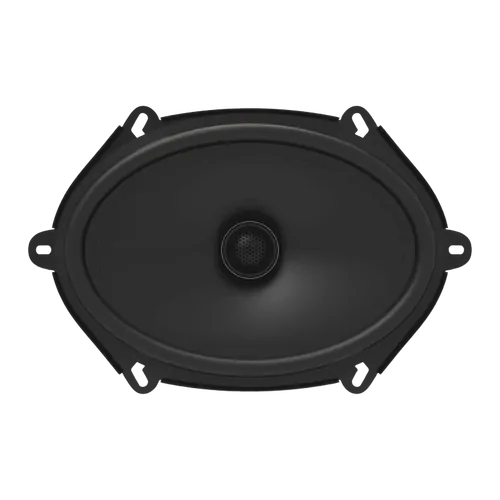

Phoenix Gold Mx Series 5X7" Coaxial Speaker
