800w 5 Channel Amplifier
Wanting a single high power, high quality amplifier to run your entire audio system?
The MX800.5 is a fantastic all-in-one amplifier choice for your vehicle.
Small Foot Print Is Only The Beginning
Built on the heritage of Phoenix Gold Legacy, the MX Series 800 watt 5 channel amplifier is built to last.
Designed with a Class-D Topology, the MX800.5 features high current MOSFETs and a unregulated power supply offering superior output performance for your subwoofer and speaker installation.
To make sure it keeps its cool, each MX Amplifier features 'Balanced Flow Dissipation' BFD technology to increase the amplifiers cooling abilities in hot temperatures.
Look The Part
Not only does the MX Series amplifiers sound amazing, they also look stunning thanks to the black anodized brushed alloy finish and solid construction.
Each MX Amplifier is made from solid alloy with black satin end caps for a sleek and subtle finish.
Featuring Laser etched Phoenix Gold and MX logos and a small footprint, these amplifiers can be easily installed into many locations whether on display or not, will suit your installation we're sure.
Audio Precision Quality Verification
Each MX Series amplifier is bench tested in the factory using Audio Precision quality control verification for true RMS output and quality of output.
Every MX Series Phoenix Gold amplifier includes its own birth certificate with serial number, bench tested output and quality control stamp for piece of mind.
Connecting You The Right Way

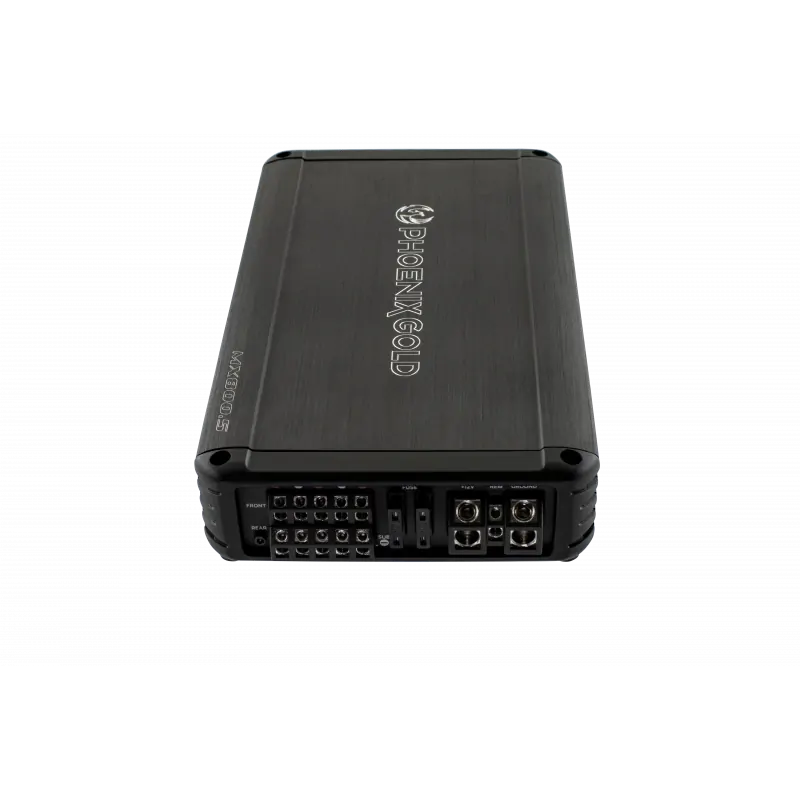

Make sure your getting the most solid connection with the MX Series Amplifier lock down Alley Key style terminals for cabling on one side of the amplifier.

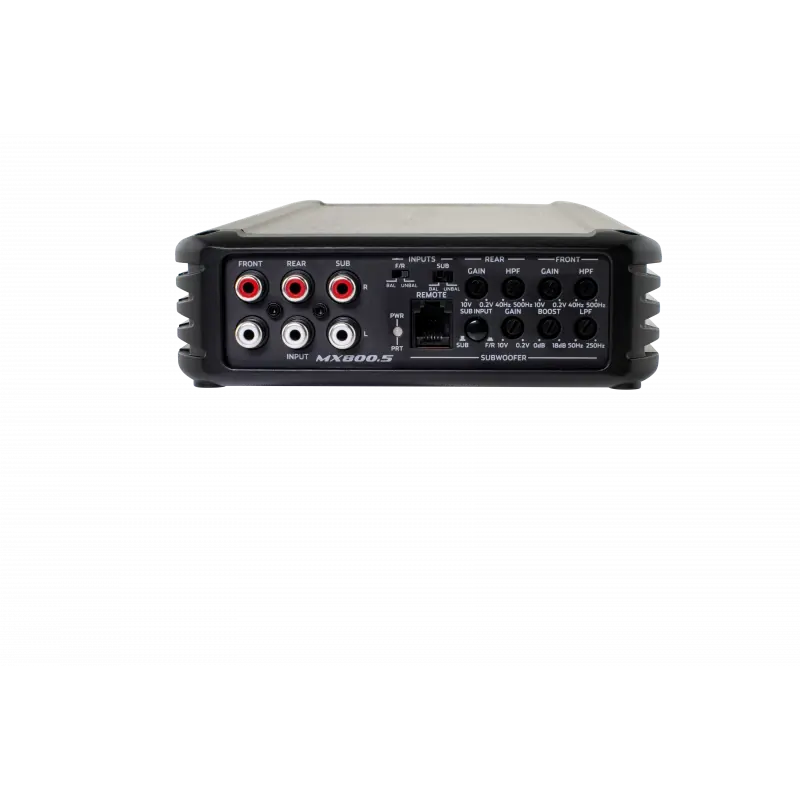

On the other end you will find RCA level inputs with a slew of pot controls for amplifier level matching and setup of the amplifier in your vehicle.
Remain In Control

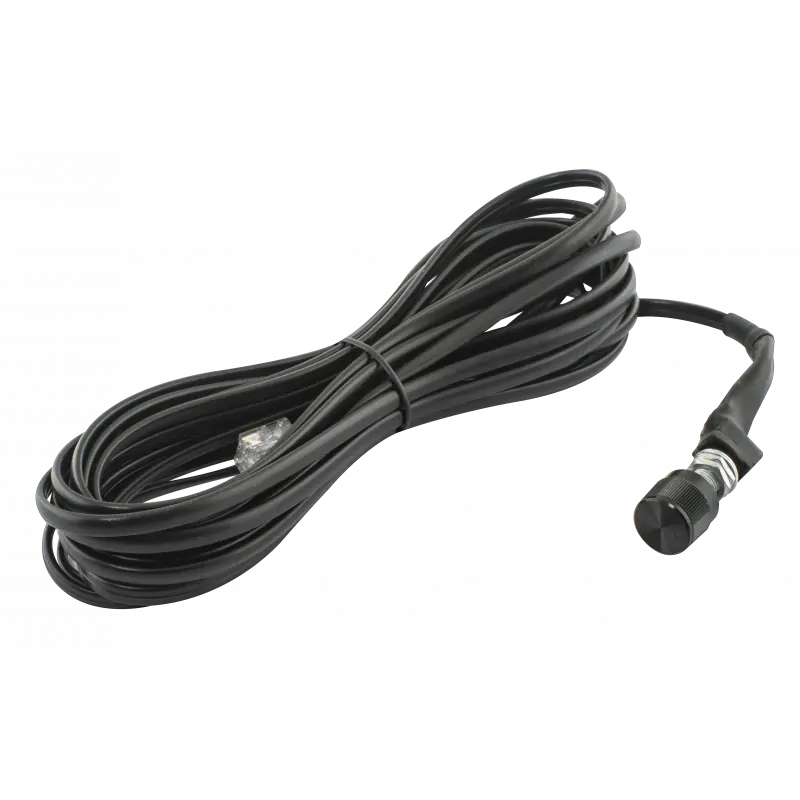

Control your subwoofer level directly from your drivers seat with the included flush mount bass control knob and harness included with every MX Series 5 channel amplifier.
What Do You Get?
Specifications
Inputs
- Preamp Inputs: 6 Balanced or Unbalanced
- Preamp Input Voltage Range:
500 mV – 10 Vrms (Balanced)
200mV to 6 Vrms (Unbalanced)
Outputs
Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 70 W RMS (Channels 1 – 4)
- 2 Ω – 100 W RMS (Channels 1 – 4)
- 4 Ω – 300 W RMS (Channel 5)
- 2 Ω – 400 W RMS (Channel 5)
Performance
- Frequency Response: 10 Hz – 40 kHz (Channels 1 – 4)
- Frequency Response: 15 Hz – 250 kHz (Channel 5)
- Signal to Noise: CEA Standard >80dB
- THD+N: < 1%
- Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 2 x 40 A
- Crossover: 12 dB/octave Linkwitz-Riley, 50Hz – 250Hz (CH1-4)
- Crossover: 12 dB/octave Linkwitz-Riley, 50Hz – 250Hz (CH 5)
- Bass Boost 0 – +18dB @ 45Hz
- Recommended Inline Fuse – 70 Amp
Whats In The Box
1x Amplifier
2x 40 Amp Fuses
1x Bass Control Knob
1x Manual
1x That Fresh Funky Feeling
Check Out These Recommended Accessories
4GA Amplifier Wiring Kit
Part Number: SK4241
4000 Series RCA Lead
Part Number: SI4217
12" Slimline Subwoofer
Part Number: MX12D4
6×9 Point Source Speakers
Part Number: MX69CX
| Rated Continuous (RMS) Power @ 14.4v |
4Ω – 70w x 4 RMS / 2Ω – 100w x 4 RMS (CH1-4), 4Ω – 300w RMS, 2Ω – 400w RMS (CH5) |
|---|---|
| Input Channels |
6 Channel RCA |
| RCA Pre-Outs |
NONE |
| Total Harmonic Distortion Rating |
Less Than 1% |
| Crossover Type |
LINKWITZ RILEY 12dB FLAT/HP/LP |
| Crossover Frequency |
Adjustable from 50Hz to 250Hz |
| Dimensions |
258mm x 150mm x 48.5mm |
| SKU | MX800.5 |
|---|---|
| Barcode # | 609098828932 |
| Brand | Phoenix Gold |
| Shipping Weight | 5.0000kg |
