600w 4 Channel Amplifier
Phoenix Gold's MX amplifier series is a sub-compact series of amplifiers engineered for vehicles where space is at a premium, like trucks, jeeps and sports cars.
Small Foot Print Is Only The Beginning
Built on the heritage of Phoenix Gold Legacy, the MX Series 600 watt 4 channel amplifier is built to last.
Designed with a Class-D Topology, the MX600.4 features high current MOSFETs and a unregulated power supply offering superior output performance for your subwoofer configuration.
With smooth, clean and powerful output, this is a great option for use with high quality speakers to complete your vehicle experience.
To make sure it keeps its cool, each MX Amplifier features 'Balanced Flow Dissipation' BFD technology to increase the amplifiers cooling abilities in hot temperatures.
Look The Part
Not only does the MX Series amplifiers sound amazing, they also look stunning thanks to the black anodized brushed alloy finish and solid construction.
Each MX Amplifier is made from solid alloy with black satin end caps for a sleek and subtle finish.
Featuring Laser etched Phoenix Gold and MX logos and a small footprint, these amplifiers can be easily installed into many locations whether on display or not, will suit your installation we're sure.
Audio Precision Quality Verification
Each MX Series amplifier is bench tested in the factory using Audio Precision quality control verification for true RMS output and quality of output.
Every MX Series Phoenix Gold amplifier includes its own birth certificate with serial number, bench tested output and quality control stamp for piece of mind.
Connecting You The Right Way
Make sure your getting the most solid connection with the MX Series Amplifier lock down Alley Key style terminals for cabling on one side of the amplifier.

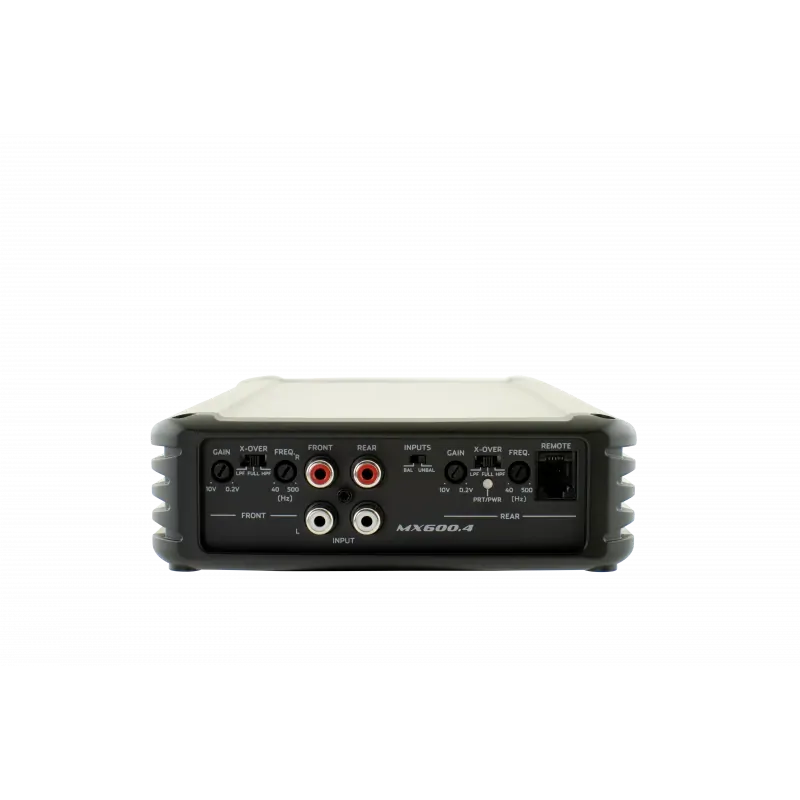

On the other end you will find RCA level inputs as well as a slew of pot controls for amplifier level matching and setup.
Remain In Control
Control your subwoofer level directly from your drivers seat with the included flush mount bass control knob and harness included with every MX Series 4 Channel amplifier just in case your using a subwoofer as well as speakers.
What Do You Get?
Specifications
Inputs
- Preamp Inputs: 4 Balanced or Unbalanced
- Preamp Input Voltage Range:
500 mV – 10 Vrms (Balanced)
200mV to 5 Vrms (Unbalanced)
Outputs
Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 100 W RMS x 4
- 2 Ω – 150 W RMS x 4
2CH Mode
- 4 Ω – 300 W RMS x 2 (1+2 Bridged / 3+4 Bridged)
3CH Mode
- 4 Ω – 100 W RMS x 2 (Channel 1 and Channel 2)
- 2 Ω – 150 W RMS x 2 (Channel 1 and Channel 2)
- 4 Ω – 300 W RMS x 1 (Channel 3 + Channel 4 Bridged)
Performance
- Frequency Response: 10 Hz – 40 kHz
- Signal to Noise: CEA Standard >80dB
- THD+N: < 1%
- Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 2 x 30 A
- Crossover: 12 dB/octave Linkwitz-Riley, 40Hz – 500Hz
Whats In The Box
1x Amplifier
2x 30 Amp Fuses
1x Bass Control Knob
1x Manual
1x That Fresh Funky Feeling
Check Out These Recommended Accessories
4GA Amplifier Wiring Kit
Part Number: SK4241
4000 Series RCA Lead
Part Number: SI4217
6.5" Point Source Speakers
Part Number: MX65CX
12" Performance Subwoofer
Part Number: RX212S
Rated Continuous (RMS) Power @ 14.4v |
4Ω – 100w x 4 RMS / 2Ω – 150w x 4 RMS, BRIDGED – 4Ω – 200w RMS |
---|---|
Input Channels |
4 Channel RCA |
RCA Pre-Outs |
NONE |
Total Harmonic Distortion Rating |
Less Than 1% |
Crossover Type |
LINKWITZ RILEY 12dB FLAT/HP/LP |
Crossover Frequency |
Adjustable from 40Hz to 500Hz |
Dimensions |
258mm x 150mm x 48.5mm |
SKU | MX600.4 |
---|---|
Barcode # | 609098828918 |
Brand | Phoenix Gold |
Shipping Weight | 5.0000kg |
