12" GX Series Subwoofer
Phoenix Gold's GX subwoofers are engineered for heart pounding performance
and a breath taking sound experience.
When The Goal Is Bass…
Each GX Subwoofer is designed with a dual cone design to strengthen the rigidity of the woofer’s cone body to minimize the distortion while increasing the handling of high pressure produced in the subwoofer enclosure.
Featuring a Magnetic FEA High Efficiency Vented Motor and large 2.5" voice coil, the GX Series provide better thermal efficiency for extended low frequency response with power handling to match.
Transferring power to each woofer is made possible by double looped and sleeved tinsel leads for long life and increased flexibility.
Handle the Signal With Ease
Each woofer comes complete with transferring power to each woofer is made possible by double looped and sleeved tinsel leads for long life and increased flexibility.

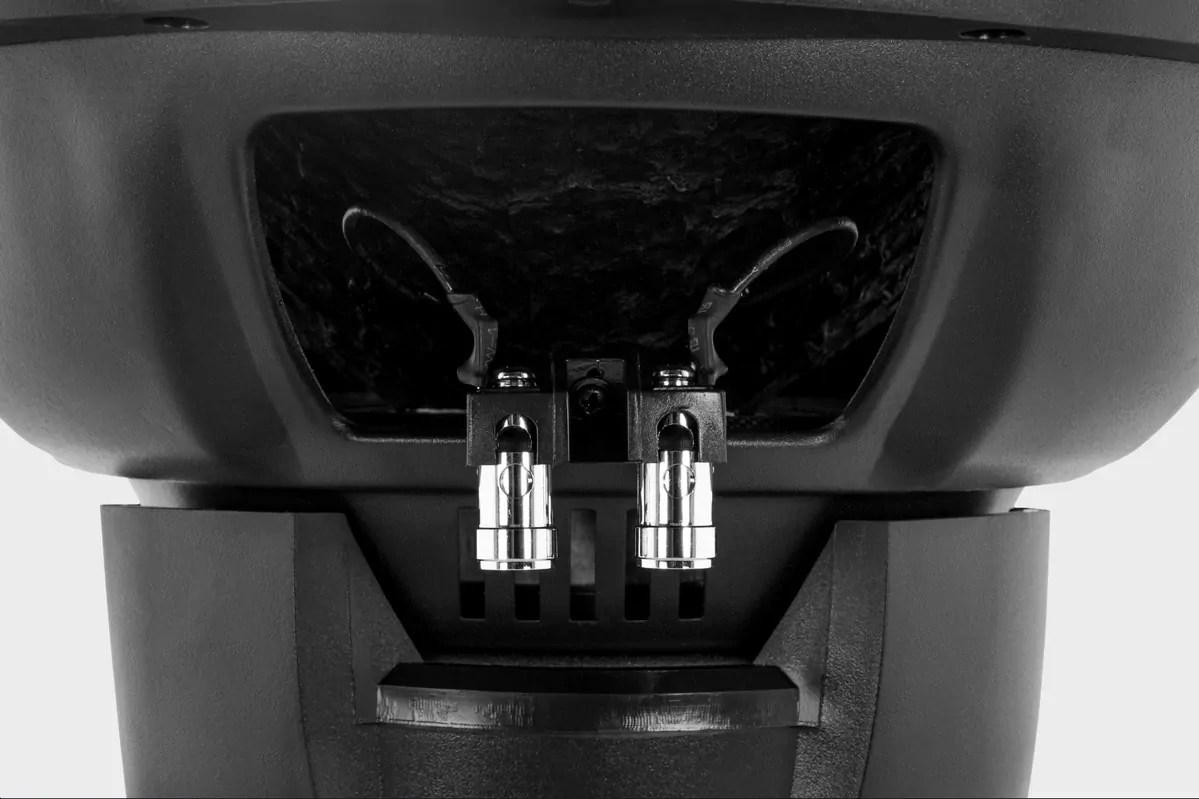

Designed to handle up to 12 gauge speaker cable via solid chrome push in terminals.
Subtle Clean Looks
Looking for clean subtle looks with class?
Each GX Series subwoofer offer a clean stylish look with chrome accent and embossed Phoenix Gold and GX logos which looks at home even in highest specifications and series of vehicles.
Designed For Enclosures
Ported? Sealed? The GX Series of subwoofers can be used in both applications whether your after smooth even bass output or louder applications.
Each GX Subwoofer comes with cut sheets and subwoofer enclosure designs for optimum performance even for the most basic DIY'er.
Protect Your Investment
Available separately, the G110 and G112 series subwoofer grills from Phoenix Gold can be used on 10" and 12" GX Series subwoofers for added protection while maintaining stylish looks. AVAILABLE SEPARATELY.
What Do You Get?
Specifications
Woofer Size
- 12" Woofer
Inputs
- 12 Gauge Terminals
Outputs
Rated Continuous (RMS) Power:
- 400 W RMS
Maximum Power Rating:
- 800 W RMS
Voice Coil Design
- Dual 4 Ω
Enclosure Applications
- Sealed
- Ported
Performance
- Frequency Response: 30 Hz – 500 Hz
- Signal to Noise: CEA Standard >87.72dB
- Resonance Frequency (FS) – 21.80Hz
- Voice Coil Diameter – 2.5Inch (63.5mm)
- Mounting Depth – 6.26inch (159mm)
Whats In The Box
1x 12" Subwoofer
1x Instructional Manual
Check Out These Recommended Accessories
4GA Amplifier Wiring Kit
Part Number: SK4241
Subwoofer Grill
Part Number: G112
800w Monoblock Amplifier
Part Number: MX800.1
1500w Monoblock Amplifier
Part Number: AC-LC-1.1500
| Woofer Size |
12″ / (305MM) |
|---|---|
| Power Rating |
400w RMS / 800w MAX |
| Voice Coil Configuration |
Dual 4-Ohm |
| Terminal Size |
12 Gauge |
| Woofer Mounting Depth |
6.26 in/159 mm |
| SKU | GX12D4 |
|---|---|
| Barcode # | 609098833004 |
| Brand | Phoenix Gold |
| Shipping Weight | 5.0000kg |

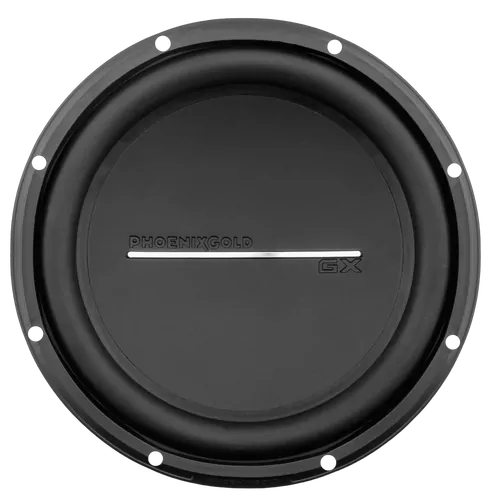

Phoenix Gold Gx Series 12" Dual 4Ohm Subwoofer
