Description

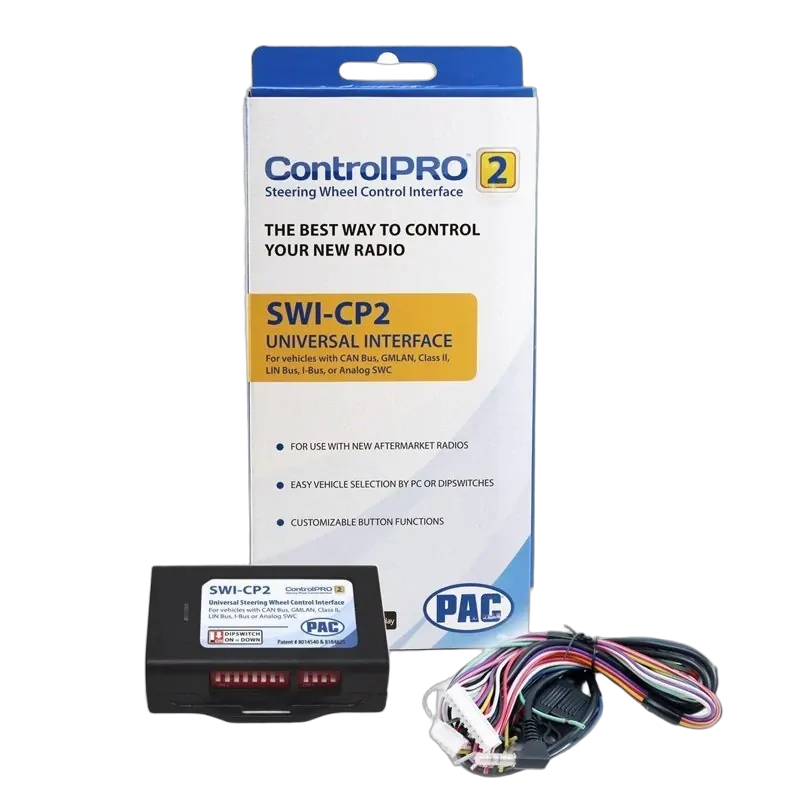

Selected Part Number: PACSWICP2
General Product Information
Steering Wheel Control Interface
Retain your factory audio steering wheel controls for use with your aftermarket radio
thanks to the PACSWICP2 from PAC Audio
Works With Analog Vehicles
Based on the reliability of PAC long line of steering wheel retention interfaces, the PACSWICP2 allows easy retention of your steering wheel mounted audio control buttons in vehicles featuring analogue (resistive) wiring styles.
Data Compatible
If your vehicle features more complex data network, there's a good chance your audio mounted steering wheel buttons are data based. With its data network compatibility, the PACSWICP2 allows easy retention of audio steering wheel buttons for your aftermarket radio.
Compatible vehicle networks include:
- GMLAN
- CLASS II
- LIN-BUS
- I-BUS
- CAN BUS
(Check vehicle application listing for compatibility information)
Programming Is Easy as 1,2,3
Programming is made easy with select vehicle profiles preloaded which can be easily setup using the DIP switch settings found on the module.
Simply set the switches and plug the module in to the supplied harness (requires to be hardwired into the vehicle or can be used with select plug and play harnesses avail separately in packages) and away you go.
No preset available? Want to customize your steering wheel button features? No worries!
You can easily manually map your vehicles buttons into the vehicle and customise the button features* (dependant on the aftermarket radios remote control features. See Installation manual for total list of features)
Major Brands Supported
Designed to work with a wide range of vehicles, the PACSWICP2 is compatible with the following brands of aftermarket radios
- Alpine
- Clarion
- Fusion
- JVC
- Kenwood
- Lightning Audio
- Nakamichi
- Pioneer
- Sony
- Stinger
Does your radio only have a 2 wire connection?
There's a good chance the PACSWICP2 will work with its built-in '2 Wire Resistive' feature however compatibility cannot be confirmed.
Feature Packed
Speed through your radio replacement installation when using the PACSWICP2 to retain your factory steering wheel controls.
- Quick and easy pre-programmed button function by DIP switch selection
- Works on Analog (resistive) and Data SWC systems
- For vehicles with CAN-Bus, GMLAN, CLASS II, LIN-Bus, I-BUS, or analogue SWC
- Supports classic, SWI-RC style button programming
- Customizable button functions (short press/long press/button reassignment)
- Provides 2 amp, 12volt accessory output
(CAN-Bus, LAN and Class II applications)
- Compatible with a wide range of late model brands of radios with 3.5mm or two wire connections
What Do You Get?

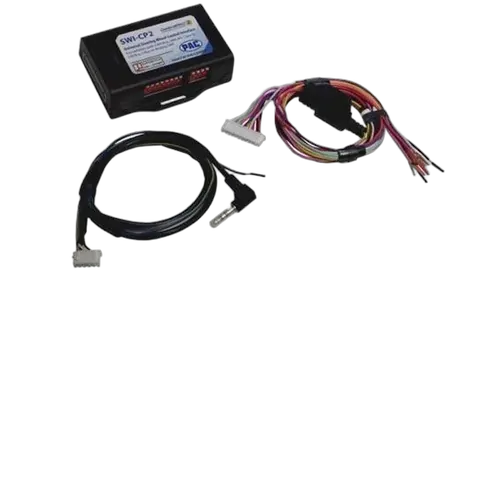

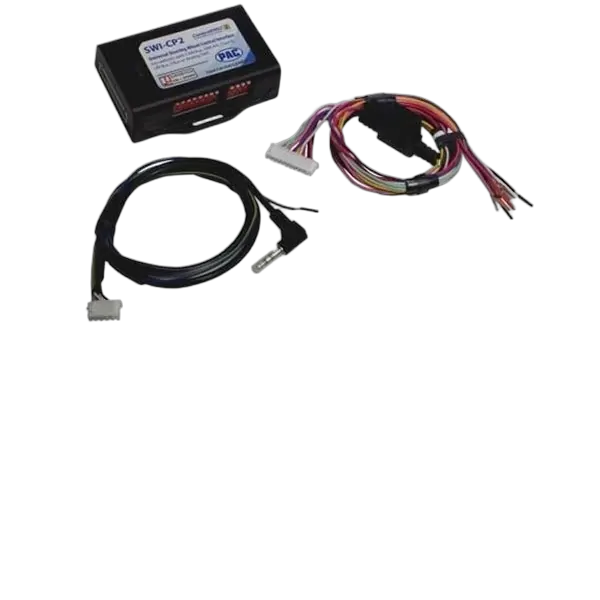

The PACSWICP2 includes
- Vehicle Interface
- Universal Bare Wire Harness
- Quick Start Guide
- Radio Adaptor Harness
Compatibility Notes
- Does not retain HVAC controls found in General Motors Vehicles
- CAN-BUS vehicles cannot be manually programmed.
- ACC 12v output only available on CAN vehicles where IGN data is available
- Buttons can only be remapped to what is available selected brand of aftermarket radio
- 2-Wire Resistive option is not compatible with all radios featuring this. Manual programming is done via the aftermarket head unit. We cannot guarantee compatibility.
- FORD, EXPLORER 2002-2005 — Models with 24 Pin Connector
- FORD, FIESTA 2002-2006 Models with 3 section headunit
- FORD, FIESTA 2009-2016 — Models with monochrome screen (Clock & Trip screen access is lost)
- FORD, FOCUS (Incl XR5) 1999-2004 — Models with 17 Pin Connector
- FORD, FOCUS (Incl XR5) 2005-2008 — Models with 24 Pin Connector
- HOLDEN, BARINA 2012-2016 — Non MyLink Models (Will lose access to vehicle settings)
- HOLDEN, BARINA SPARK 2010-2016 — 2010-2012 Models with 44 Pin Connector
- HOLDEN, CAPTIVA 7 2006-2015 — Nav Models will lose screen
- HOLDEN, COLORADO (Incl 7) 2012-2013 — Models with 16 Pin Connector
- HOLDEN, COLORADO (Incl 7) 2014-2016 — Models with 16 Pin Connector
- HOLDEN, VIVA, 2006-2011 — Models with 18 Pin Connector
- HONDA, ACCORD EURO 2008-2015 — Models with 24 Pin Connector
- HONDA, CITY, 2015-2018 — Models with mechless head unit
- HONDA, CIVIC HATCH, 2006-2011 — Will not retain OE display above head unit
- HONDA, CIVIC HATCH, 2012-2015 — Nav models – Unable to adjust clock on HUD
- HONDA, CRV, 2007-2011 — Models with 20 Pin Connector
- HONDA, CRV, 2012-2015 — Nav models – Unable to adjust clock on HUD
- HONDA, HRV, 2015-2017 — Models with mechless head unit
- HONDA, HRV, 2017-2018 —Models with mechless head unit
- HONDA, JAZZ, 2008-2013 — Models with 24 Pin Connector
- HONDA, JAZZ, 2014-2016 — Models with mechless head unit
- HONDA, JAZZ, 2017-2018 — Models with mechless head unit with 24 Pin Connector
- HONDA, MDX, 2001-2006 — Models with 20 Pin Connector
- HONDA, ODYSSEY, 2005-2009 — Models with 20 Pin Connector
- HONDA, ODYSSEY, 2009-2013 — Models with 20 Pin Connector
- HONDA, ODYSSEY, 2014-2016 — Unable to adjust clock in cluster
- HYUNDAI, ACCENT, 2006-2008 — Models with 24 Pin Connector
- HYUNDAI, ACCENT, 2011-2018 — Models with 24 Pin Connector
- HYUNDAI, ELANTRA, 2007-2010 — Models with 24 Pin Connector
- HYUNDAI, ELANTRA, 2011-2013 — Models with 24 Pin Connector
- HYUNDAI, GRANDEUR, 2006-2010 — Models with 24 Pin Connector
- HYUNDAI, i30, 2012- 2016 — Nav Models with 24 Pin Connector
- HYUNDAI, ILOAD (Incl IMAX), 2016-2018 — Models with 38 Pin Connector
- HYUNDAI, SONATA, 2006-2008 — Models with 24 Pin Connector
- IVECO, DAILY, 2015-2017 — Models with 12 Pin Connector
- KIA, CARNIVAL (Incl Grand), 2006-2015 — Models with mini ISO Connector
- KIA, CERATO, 2010-2013 — Models with mini ISO Connector
- KIA, SORENTO, 2009-2012 — Non Amplified Models
- LAND ROVER, DISCOVERY III, 2005-2010 — Non Amplified Models
- LAND ROVER, FREELANDER II, 2007-2011 — Non Amplified Models
- LAND ROVER, RANGE ROVER, 2005-2010 — Non Amplified Models
- LAND ROVER, RANGE ROVER 2011-2014 — Non Amplified Models
- LEXUS, IS, 1999-2005 — Non Navigation Models
- MAZDA, 3, 2009-2013 — Non Amplified Models (Will not retain clock & trip display)
- MAZDA, 6, 2010-2012 — Non Amplified Models (Will not retain clock & trip display)
- MAZDA, MX5, 1998-2005 — Non Amplified Models
- MAZDA, MX5, 2006-2008 — Non Amplified Models
- MAZDA, MX5, 2009-2013 — Non Amplified Models
- MAZDA, TRIBUTE, 2001-2005 — Models with 14 Pin Connector
- MITSUBISHI, ASX, 2013-2018 — Amplified Models (AXTO-MI2 also required)
- MITSUBISHI, LANCER (Inc Evolution), 2014-2018 — Amplified Models (AXTO-MI2 also required)
- MITSUBISHI, MAGNA (Inc Verada), 1997-2005 — Models with 6 Pin Connector
- MITSUBISHI, OUTLANDER, 2013-2018 — Amplified Models (AXTO-MI3 also required)
- MITSUBISHI, PAJERO SPORT, 2015-2018 — Amplified Models (AXTO-MI3 also required)
- MITSUBISHI, TRITON, 2007-2013 — Models with trip display
- MITSUBISHI, TRITON, 2013-2015 — Models with trip display
- NISSAN, 350Z, 2006-2008 — Models with 32 Pin Connector
- NISSAN, MAXIMA, 1995-2003 — Models with 32 Pin Connector
- NISSAN, PATHFINDER, 2005-2013 — Models with 16A Connector
- NISSAN, SKYLINE, 2001-2004 — Models with 16 Pin Connector
- SUZUKI, GRAND VITARA, 2005-2014 — 2011+ Models
- SUZUKI, SWIFT, 2011-2016 — 2011+ Models
- TOYOTA, CAMRY, 2018-2018 — Models with 28 Pin Connectors
Important Product Compatibility Information
| Plug & Play | NO |
|---|---|
| Manual Programming Feature | YES – SWC Button remapping via control button |
| Retain Factory Steering Wheel Audio Controls? | YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios |
Product Vehicle Applications
This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| AUDI | A4 (Incl S4) | 2001 - 2008 (B6-B7) |
| BMW | 3 SERIES (Incl M3) | 1997 - 2005 (E46) |
| BMW | 5 SERIES (Incl M5) | 1996 - 2003 (E39) |
| BMW | 5 SERIES (Incl M5) | 2004 - 2011 (E60) |
| BMW | 7 SERIES | 1994 - 2001 (E38) |
| BMW | X5 | 2000 - 2005 (E53) |
| BMW | X5 | 2006 - 2011 (E70) |
| BMW | Z3 | 1996 - 2002 (E36-E37-E38) |
| BMW | Z4 | 2003 - 2008 (E85-E86) |
| CADILLAC | ESCALADE | 1999 - 2001 (FIRST GEN) |
| CADILLAC | ESCALADE | 2002 - 2006 (SECOND GEN) |
| CHEVROLET | AVALANCHE | 1999 - 2002 (FIRST GEN) |
| CHEVROLET | AVALANCHE | 2003 - 2006 (SECOND GEN) |
| CHEVROLET | AVALANCHE | 2007 - 2011 (THIRD GEN) |
| CHEVROLET | CAMARO | 1990 - 1992 (3RD GEN) |
| CHEVROLET | CAMARO | 1993 - 2002 (4TH GEN) |
| CHEVROLET | CORVETTE | 1984 - 1989 (C4) |
| CHEVROLET | CORVETTE | 1990 - 1996 (C4) |
| CHEVROLET | CORVETTE | 1997 - 2004 (C5) |
| CHEVROLET | CORVETTE | 2005 - 2013 (C6) |
| CHEVROLET | SILVERADO | 1999 - 2006 (FIRST GEN) |
| CHEVROLET | SSR | 2003 - 2006 (Super Sports Roadster) |
| CHEVROLET | SUBURBAN | 2000 - 2006 (NINTH GEN) |
| CHRYSLER | NEON | 1996 - 1999 (FIRST GEN) |
| CHRYSLER | NEON | 2000 - 2006 (SECOND GEN) |
| CHRYSLER | PROWLER | 2002 - 2002 (GRRRR…) |
| CHRYSLER | PT CRUISER | 2001 - 2005 (FIRST GEN) |
| CHRYSLER | PT CRUISER | 2006 - 2011 (SECOND GEN) |
| CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 1996 - 2001 (3RD GEN) |
| CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 2001 - 2007 (4TH GEN) |
| CITROEN | DS3 | 2009 - 2016 (FIRST GEN) |
| DODGE | CALIBER | 2006 - 2009 (FIRST GEN) |
| DODGE | RAM | 2002 - 2005 (3RD GEN) |
| FIAT | DUCATO | 2015 - 2018 (FOURTH GEN) |
| FORD | COUGAR | 1999 - 2000 (MK1) |
| FORD | ESCAPE | 2001 - 2007 (FIRST GEN) |
| FORD | ESCAPE | 2006 - 2011 (2ND GEN) |
| FORD | EXPLORER | 1995 - 2001 (UN - US) |
| FORD | EXPLORER | 2002 - 2005 (UT - UX) |
| FORD | EXPLORER | 2006 - 2011 (UZ) |
| FORD | F SERIES | 1995 - 2004 (10th Gen) |
| FORD | F SERIES | 2005 - 2008 (11th Gen) |
| FORD | FALCON | 1998 - 2002 (AU) |
| FORD | FALCON | 2003 - 2008 (BA-BF) |
| FORD | FALCON | 2009 - 2011 (FG) |
| FORD | FIESTA | 2006 - 2008 (WQ) |
| FORD | FIESTA | 2009 - 2016 (WS-WT-WZ) |
| FORD | FOCUS (Incl XR5) | 2005 - 2007 (LS-LT) |
| FORD | TRANSIT | 2007 - 2014 (VM) |
| FOTON | TUNLAND | 2012 - 2016 (E3) |
| GMC | SIERRA | 1999 - 2006 (FIRST GEN) |
| GMC | YUKON | 2007 - 2014 (GMT900 (3RD GEN)) |
| GREAT WALL | STEED | 2016 - 2018 (NBP) |
| GREAT WALL | V200 + V240 | 2009 - 2014 (K2) |
| GREAT WALL | X240 | 2010 - 2011 (H5) |
| HARLEY DAVIDSON | STREET GLIDE | 1998 - 2013 (MOTORBIKE) |
| HARLEY DAVIDSON | ULTRA GLIDE | 1998 - 2013 (MOTORBIKE) |
| HOLDEN | BARINA | 2006 - 2011 (TK) |
| HOLDEN | BARINA | 2012 - 2016 (TM) |
| HOLDEN | BARINA SPARK | 2010 - 2016 (MJ) |
| HOLDEN | CAPTIVA 7 (Incl Variants) | 2006 - 2015 (CG) |
| HOLDEN | COLORADO (Incl 7) | 2012 - 2013 (RG) |
| HOLDEN | COLORADO (Incl 7) | 2014 - 2016 (RG) |
| HOLDEN | COMMODORE | 1997 - 2002 (VT-VX) |
| HOLDEN | COMMODORE | 2002 - 2007 (VY-VZ) |
| HOLDEN | EPICA | 2006 - 2011 (EP) |
| HOLDEN | EQUINOX | 2017 - 2018 (EQ) |
| HOLDEN | TIGRA | 2004 - 2009 (XC) |
| HOLDEN | VECTRA | 2003 - 2011 (ZC) |
| HOLDEN | VIVA | 2006 - 2011 (JF) |
| HONDA | ACCORD | 1989 - 1993 (4TH GEN) |
| HONDA | ACCORD | 1993 - 1997 (5TH GEN) |
| HONDA | ACCORD | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD | 2008 - 2012 (8TH GEN) |
| HONDA | ACCORD EURO | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD EURO | 2008 - 2015 (8TH GEN) |
| HONDA | CITY | 2009 - 2013 (GM) |
| HONDA | CITY | 2013 - 2015 (GM) |
| HONDA | CITY | 2015 - 2019 (GM) |
| HONDA | CIVIC HATCH | 2001 - 2005 (7TH GEN) |
| HONDA | CIVIC HATCH | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC HATCH | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC HATCH | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2001 - 2005 (7TH GEN) |
| HONDA | CIVIC SEDAN | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC SEDAN | 2012 - 2015 (9TH GEN) |
| HONDA | CRV | 1997 - 2006 (RD) |
| HONDA | CRV | 2007 - 2011 (RE) |
| HONDA | CRV | 2012 - 2015 (RM) |
| HONDA | CRV | 2015 - 2016 (RM) |
| HONDA | CRZ | 2010 - 2014 (ZF) |
| HONDA | HRV | 2015 - 2017 (2ND GEN) |
| HONDA | HRV | 2017 - 2019 (2ND GEN) |
| HONDA | INSIGHT | 2009 - 2013 (ZE) |
| HONDA | INTEGRA | 1993 - 2001 (DB - DC1 - DC2) |
| HONDA | INTEGRA | 2002 - 2006 (DC5) |
| HONDA | JAZZ | 2001 - 2007 (GD) |
| HONDA | JAZZ | 2008 - 2013 (GE) |
| HONDA | JAZZ | 2014 - 2016 (GF) |
| HONDA | JAZZ | 2017 - 2019 (GF) |
| HONDA | LEGEND | 1990 - 1996 (KA7-KA8) |
| HONDA | LEGEND | 1996 - 2003 (KA9) |
| HONDA | MDX | 2001 - 2006 (YD1) |
| HONDA | ODYSSEY | 1995 - 1999 (1ST GEN (RA1 - RA5)) |
| HONDA | ODYSSEY | 2004 - 2009 (3RD GEN (RB1 - RB2)) |
| HONDA | ODYSSEY | 2009 - 2013 (4TH GEN (RB3 - RB4)) |
| HONDA | ODYSSEY | 2014 - 2018 (5TH GEN (RC1 - RC2)) |
| HONDA | PRELUDE | 1991 - 1996 (4TH GEN (BA - BB)) |
| HONDA | PRELUDE | 1997 - 2001 (5TH GEN (BB5-BB9)) |
| HONDA | S2000 | 1999 - 2011 (AP1 - AP2) |
| HUMMER | H2 | 2002 - 2007 (H2) |
| HUMMER | H2 | 2008 - 2011 (H2) |
| HYUNDAI | ACCENT | 2006 - 2008 (MC) |
| HYUNDAI | ACCENT | 2011 - 2019 (RB) |
| HYUNDAI | ELANTRA | 2007 - 2010 (HD) |
| HYUNDAI | ELANTRA | 2011 - 2013 (MD-MD2) |
| HYUNDAI | ELANTRA | 2014 - 2015 (MD3) |
| HYUNDAI | ELANTRA | 2016 - 2018 (AD) |
| HYUNDAI | GETZ | 2002 - 2010 (TB) |
| HYUNDAI | GRANDEUR | 2006 - 2010 (TG) |
| HYUNDAI | i20 | 2010 - 2012 (PB) |
| HYUNDAI | i20 | 2012 - 2015 (PB) |
| HYUNDAI | i30 | 2007 - 2011 (FD) |
| HYUNDAI | i30 | 2012 - 2016 (GD-GD2) |
| HYUNDAI | i40 | 2012 - 2018 (VF-VF2-VF3) |
| HYUNDAI | i45 | 2010 - 2012 (YF) |
| HYUNDAI | ILOAD (Incl IMAX) | 2008 - 2016 (TQ) |
| HYUNDAI | ILOAD (Incl IMAX) | 2016 - 2018 (TQ3-V Series II) |
| HYUNDAI | ILOAD (Incl IMAX) | 2018 - 2019 (TQ4) |
| HYUNDAI | ix35 | 2010 - 2013 (LM) |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITH NAV |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITHOUT NAV |
| HYUNDAI | SANTA FE | 2001 - 2006 (SM) |
| HYUNDAI | SANTA FE | 2009 - 2012 (CM) |
| HYUNDAI | SANTA FE | 2012 - 2018 (DM) |
| HYUNDAI | SONATA | 1995 - 2001 (Y3) |
| HYUNDAI | SONATA | 2002 - 2005 (EF) |
| HYUNDAI | SONATA | 2006 - 2008 (NF) |
| HYUNDAI | SONATA | 2009 - 2011 (YF) |
| HYUNDAI | TIBURON | 1997 - 2002 (RD - RD2) |
| HYUNDAI | TIBURON | 2003 - 2008 (GK) |
| HYUNDAI | TUCSON | 2015 - 2018 (TL) |
| HYUNDAI | VELOSTER | 2012 - 2017 (1ST GEN) |
| ISUZU | DMAX | 2012 - 2016 (RT50 - RT85) |
| ISUZU | DMAX | 2016 - 2019 (RT50 - RT85) |
| ISUZU | MUX | 2013 - 2015 (RF10) |
| ISUZU | MUX | 2016 - 2017 (RF20) |
| IVECO | DAILY | 2007 - 2014 (5TH GEN) |
| IVECO | DAILY | 2015 - 2017 (6TH GEN) |
| IVECO | DAILY | 2018 - 2019 (6TH GEN) |
| JAGUAR | S-TYPE | 2000 - 2002 (No Chassis Code) |
| JAGUAR | S-TYPE | 2003 - 2008 (No Chassis Code) |
| JAGUAR | X-TYPE | 2002 - 2015 (No Chassis Code) |
| JEEP | CHEROKEE | 1994 - 2001 (XJ) |
| JEEP | CHEROKEE | 2001 - 2007 (KJ) |
| JEEP | COMMANDER | 2005 - 2008 (XK) |
| JEEP | COMPASS | 2007 - 2009 (MK) |
| JEEP | GRAND CHEROKEE | 1999 - 2004 (WJ-WG) |
| JEEP | GRAND CHEROKEE | 2005 - 2007 (WH-WK) |
| JEEP | PATRIOT | 2007 - 2009 (MK) |
| JEEP | WRANGLER | 1986 - 2004 (YJ - TJ) |
| JEEP | WRANGLER | 2003 - 2006 (TJ) |
| KIA | CARNIVAL (Incl Grand) | 1998 - 2005 (KV-II) |
| KIA | CARNIVAL (Incl Grand) | 2006 - 2015 (VQ) |
| KIA | CERATO | 2010 - 2012 (TD) |
| KIA | CERATO | 2013 - 2018 (YD) |
| KIA | CERATO | 2019 - 2021 (BD) |
| KIA | MAGENTIS | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2010 - 2013 (TF1) |
| KIA | OPTIMA | 2013 - 2015 (TF2) |
| KIA | PICANTO | 2016 - 2017 (TA) |
| KIA | PRO CEED | 2014 - 2015 (JD) |
| KIA | RIO | 2010 - 2014 (UB) |
| KIA | RIO | 2014 - 2017 (UB) |
| KIA | RONDO | 2007 - 2012 (UN) |
| KIA | RONDO | 2013 - 2018 (RP) |
| KIA | SORENTO | 2007 - 2008 (BL) |
| KIA | SORENTO | 2009 - 2012 (XM) |
| KIA | SORENTO | 2013 - 2015 (XM) |
| KIA | SORENTO EX | 2003 - 2009 (BL) |
| KIA | SORENTO LX | 2001 - 2003 (BL) |
| KIA | SORENTO LX | 2007 - 2009 (BL) |
| KIA | SOUL | 2009 - 2011 (AM) |
| KIA | SOUL | 2014 - 2018 (PS) |
| KIA | SPORTAGE | 2010 - 2015 (SL) |
| KIA | SPORTAGE | 2016 - 2018 (QL) |
| LAMBORGHINI | GALLARDO | 2005 - 2011 (No Chassis Code) |
| LAND ROVER | DISCOVERY III | 2005 - 2010 (L319) |
| LAND ROVER | RANGE ROVER (Incl HSE - VOGUE) | 2002 - 2012 (L322) |
| LEXUS | ES | 1992 - 1996 (XV10) |
| LEXUS | ES | 1997 - 2001 (XV20) |
| LEXUS | ES | 2002 - 2006 (XV30) |
| LEXUS | GS | 1998 - 2006 (S160) |
| LEXUS | IS | 1999 - 2005 (XE10) |
| LEXUS | LX | 1998 - 2007 (J100) |
| LEXUS | RX | 2003 - 2008 (XU30) |
| MAZDA | 2 | 2007 - 2015 (DE) |
| MAZDA | 3 | 2004 - 2009 (BK) |
| MAZDA | 3 | 2009 - 2013 (BL) |
| MAZDA | 3 | 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY |
| MAZDA | 323 | 1986 - 1994 (BF - BG) |
| MAZDA | 6 | 2003 - 2005 (GG) |
| MAZDA | 6 | 2005 - 2008 (GG) |
| MAZDA | 6 | 2010 - 2012 (GH) |
| MAZDA | BT-50 | 2015 - 2019 (UR) WITH 7inch NAV |
| MAZDA | CX-3 | 2015 - 2021 |
| MAZDA | CX5 | 2015 - 2017 (KE) |
| MAZDA | CX7 | 2006 - 2010 (ER) |
| MAZDA | CX7 | 2010 - 2011 (ER) |
| MAZDA | MPV | 2000 - 2006 (LW) |
| MAZDA | MX5 | 1998 - 2005 (NB) |
| MAZDA | MX5 | 2006 - 2008 (NC) |
| MAZDA | MX5 | 2009 - 2013 (ND) |
| MAZDA | PREMACY | 2000 - 2006 (1ST GEN) |
| MAZDA | RX8 | 2004 - 2008 (FE) |
| MAZDA | RX8 | 2008 - 2012 (FE) |
| MAZDA | TRIBUTE | 2001 - 2006 (1ST GEN) |
| MAZDA | TRIBUTE | 2006 - 2011 (2ND GEN) |
| MITSUBISHI | 380 | 2004 - 2011 (DB) |
| MITSUBISHI | ASX | 2010 - 2013 (XA) |
| MITSUBISHI | ASX | 2013 - 2019 (XB - XC) |
| MITSUBISHI | CHALLENGER | 2009 - 2013 (PB) |
| MITSUBISHI | CHALLENGER | 2013 - 2015 (PC) |
| MITSUBISHI | DELICA | 2007 - 2010 (5TH GEN) |
| MITSUBISHI | LANCER (Inc Evolution) | 2007 - 2013 (CJ) |
| MITSUBISHI | LANCER (Inc Evolution) | 2014 - 2018 (CF) |
| MITSUBISHI | MAGNA (Inc Verada) | 1997 - 2005 (TF) |
| MITSUBISHI | MIRAGE | 2013 - 2019 (LA) |
| MITSUBISHI | OUTLANDER | 2003 - 2006 (ZE-ZF) |
| MITSUBISHI | OUTLANDER | 2007 - 2012 (ZG-ZH) |
| MITSUBISHI | OUTLANDER | 2013 - 2018 (ZJ-ZK) |
| MITSUBISHI | PAJERO | 2006 - 2015 (NS-NT-NW) |
| MITSUBISHI | PAJERO | 2015 - 2021 (NT-NX) |
| MITSUBISHI | PAJERO SPORT | 2016 - 2018 (KR - KS - QE) |
| MITSUBISHI | TRITON | 2007 - 2013 (ML) |
| MITSUBISHI | TRITON | 2013 - 2015 (MN) |
| MITSUBISHI | TRITON | 2015 - 2018 (MQ) |
| MITSUBISHI | TRITON | 2019 - 2021 (MR) |
| NISSAN | 200SX | 1999 - 2002 (S14) |
| NISSAN | 350Z | 2003 - 2005 (Z33) |
| NISSAN | 350Z | 2006 - 2008 (Z33) |
| NISSAN | 370Z | 2009 - 2011 (Z34) |
| NISSAN | DUALIS | 2007 - 2013 (J10) |
| NISSAN | ELGRAND | 2001 - 2004 (E51) |
| NISSAN | ELGRAND | 2005 - 2010 (E51) |
| NISSAN | JUKE | 2013 - 2015 (F15) |
| NISSAN | JUKE | 2016 - 2018 (F15) |
| NISSAN | MAXIMA | 1995 - 2003 (A33) |
| NISSAN | MICRA | 2003 - 2009 (K12) |
| NISSAN | MURANO | 2005 - 2008 (Z50) |
| NISSAN | MURANO | 2009 - 2011 (Z51) |
| NISSAN | NAVARA | 2005 - 2015 (D22-D40) |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) RX-DX MODELS |
| NISSAN | NAVARA | 2019 - 2020 (D23) |
| NISSAN | PATHFINDER | 1996 - 2005 (R50) |
| NISSAN | PATHFINDER | 2003 - 2004 (WX-WX2) |
| NISSAN | PATHFINDER | 2005 - 2013 (R51) |
| NISSAN | PATROL | 1998 - 2009 (Y61) |
| NISSAN | PATROL | 2010 - 2013 (Y61) |
| NISSAN | PULSAR | 2013 - 2016 (C12) |
| NISSAN | SKYLINE | 1999 - 2002 (R34) |
| NISSAN | SKYLINE | 2001 - 2004 (V35) |
| NISSAN | SKYLINE | 2005 - 2007 (V35) |
| NISSAN | TIIDA | 2006 - 2011 (C2) |
| NISSAN | XTRAIL | 2003 - 2007 (T30) |
| NISSAN | XTRAIL | 2007 - 2013 (T31) |
| NISSAN | XTRAIL | 2019 - 2020 (T32) |
| PEUGEOT | 4008 | 2010 - 2014 (No Chassis Code) |
| PEUGEOT | 4008 | 2014 - 2017 (No Chassis Code) |
| PONTIAC | FIREBIRD | 1993 - 2002 (5th GEN) |
| PONTIAC | GRAND AM | 1992 - 1997 (3rd GEN) |
| PORSCHE | CAYENNE | 2002 - 2012 (9PA) |
| PROTON | GEN2 | 2005 - 2009 (CM) |
| PROTON | PERSONA | 1999 - 2004 (CM) |
| PROTON | PREVE + SUPRIMA | 2012 - 2015 (CR) |
| PROTON | SATRIA (Incl GTI) | 1999 - 2004 (BS) |
| PROTON | SAVVY | 2005 - 2009 (BT - BT S2) |
| SAAB | 93 | 1998 - 2004 (440) |
| SAAB | 93 | 2004 - 2014 (442) |
| SAAB | 95 | 2000 - 2005 (YS3E) |
| SAAB | 95 | 2005 - 2011 (YS3G) |
| SAAB | 97 | 2006 - 2011 (No Chassis Code) |
| SSANGYONG | ACTYON | 2006 - 2013 (100 Series) |
| SSANGYONG | KORANDO | 2011 - 2012 (C200) |
| SSANGYONG | KORANDO | 2013 - 2015 (C200) |
| SSANGYONG | KYRON | 2006 - 2011 (D100) |
| SSANGYONG | REXTON | 2006 - 2011 (Y250) |
| SSANGYONG | STAVIC | 2006 - 2012 (A100) |
| SSANGYONG | STAVIC | 2013 - 2015 (A100) |
| SUBARU | BRZ | 2017 - 2020 (POST-FACELIFT) |
| SUBARU | FORESTER | 1998 - 2006 (SF - SG) |
| SUBARU | FORESTER | 2007 - 2012 (SH) |
| SUBARU | FORESTER | 2013 - 2014 (SJ) |
| SUBARU | FORESTER | 2015 - 2018 (SJ) |
| SUBARU | GL (Incl DL) | 1981 - 1989 (No Chassis Code) |
| SUBARU | IMPREZA | 2016 - 2018 (GK-GT) |
| SUBARU | IMPREZA (Inc WRX) | 1993 - 2006 (GC-GD-GG) |
| SUBARU | IMPREZA (Inc WRX) | 2007 - 2012 (GE-GH-GR-GV) |
| SUBARU | IMPREZA (Inc WRX) | 2012 - 2014 (GP-GJ) |
| SUBARU | IMPREZA (Inc WRX) | 2015 - 2016 (GP-GJ) |
| SUBARU | LEVORG | 2016 - 2018 (V1) |
| SUBARU | LIBERTY (Inc Outback) | 1995 - 2003 (BE-BH-BT) |
| SUBARU | LIBERTY (Inc Outback) | 2004 - 2005 (BL-BP) |
| SUBARU | LIBERTY (Inc Outback) | 2006 - 2008 (BL-BP) |
| SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITH NAV |
| SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITHOUT NAV |
| SUBARU | LIBERTY (Inc Outback) | 2015 - 2017 (BN-BS) |
| SUBARU | LIBERTY (Inc Outback) | 2018 - 2020 (BN-BS) |
| SUBARU | WRX (Inc STI) | 2015 - 2018 (VA) |
| SUBARU | XV | 2012 - 2014 (GP) |
| SUBARU | XV | 2015 - 2016 (GP Facelift) |
| SUBARU | XV | 2017 - 2021 (GT) |
| SUZUKI | BALENO | 2016 - 2018 (EW) |
| SUZUKI | GRAND VITARA | 2003 - 2005 (SQ625) |
| SUZUKI | GRAND VITARA | 2005 - 2014 (JB) |
| SUZUKI | GRAND VITARA | 2015 - 2018 (JB) |
| SUZUKI | KIZASHI | 2010 - 2014 (FR) |
| SUZUKI | LIANA | 2005 - 2008 (RH416 - RH518) |
| SUZUKI | SWIFT | 2006 - 2010 (RS416) |
| SUZUKI | SWIFT | 2011 - 2016 (FZ) |
| SUZUKI | SWIFT | 2017 - 2020 (AZ) |
| SUZUKI | SX4 (Incl S-Cross) | 2007 - 2011 (GYB - GYC) |
| SUZUKI | SX4 (Incl S-Cross) | 2014 - 2016 (GYA) |
| SUZUKI | VITARA | 2015 - 2016 (LY) |
| SUZUKI | XL7 | 2007 - 2009 (JA) |
| TOYOTA | 86 | 2017 - 2020 (POST-FACELIFT) |
| TOYOTA | ALPHARD | 2008 - 2014 (AH20 Series) |
| TOYOTA | ALPHARD | 2015 - 2017 (AH30 Series) |
| TOYOTA | AURION | 2006 - 2011 (XV40 Series) |
| TOYOTA | AURION | 2012 - 2015 (XV50 Series) |
| TOYOTA | AURION | 2015 - 2017 (XV50 Series) |
| TOYOTA | C-HR | 2017 - 2019 (AX10 Series) |
| TOYOTA | CAMRY | 2002 - 2006 (XV30 Series) |
| TOYOTA | CAMRY | 2007 - 2011 (XV40 Series) |
| TOYOTA | CAMRY | 2012 - 2017 (XV50 Series) |
| TOYOTA | CAMRY | 2018 - 2020 (XV70 Series) |
| TOYOTA | CELICA | 2000 - 2005 (T230 Series) |
| TOYOTA | COROLLA | 1998 - 2002 (E110 Series) |
| TOYOTA | COROLLA | 2003 - 2009 (E140 - E160 Series) |
| TOYOTA | COROLLA | 2009 - 2012 (E120 Series) |
| TOYOTA | COROLLA HATCH | 2013 - 2015 (E180 Series) |
| TOYOTA | COROLLA HATCH | 2015 - 2018 (E180 - E200 Series) |
| TOYOTA | COROLLA SEDAN | 2014 - 2016 (E170 Series) |
| TOYOTA | COROLLA SEDAN | 2017 - 2018 (E170 Series) |
| TOYOTA | ECHO | 2000 - 2004 (XP10 Series) |
| TOYOTA | ESTIMA | 2000 - 2005 (XR30-XR40 Series) |
| TOYOTA | ESTIMA | 2006 - 2016 (XR50 Series) |
| TOYOTA | FORTUNER | 2015 - 2019 (AN150 - AN160 Series) |
| TOYOTA | HIACE | 2005 - 2019 (H200 Series) |
| TOYOTA | HILUX | 1997 - 2004 (N140 - N150 - N160 - N170 Series) |
| TOYOTA | HILUX | 2005 - 2010 (AN10 - AN20 - AN30 Series) |
| TOYOTA | HILUX | 2011 - 2013 (AN10 - AN20 - AN30 Series) |
| TOYOTA | HILUX | 2013 - 2015 (AN10 - AN20 - AN30 Series) |
| TOYOTA | HILUX | 2015 - 2020 (AN120 - AN130 Series) |
| TOYOTA | HILUX | 2020 - 2021 (AN120 - AN130 Series) |
| TOYOTA | KLUGER | 2003 - 2006 (XU20 Series) |
| TOYOTA | KLUGER | 2007 - 2013 (XU40 Series) |
| TOYOTA | KLUGER | 2014 - 2019 (XU50 Series) |
| TOYOTA | LANDCRUISER | 2001 - 2008 (100 Series) |
| TOYOTA | LANDCRUISER | 2002 - 2009 (120 Series) |
| TOYOTA | LANDCRUISER | 2008 - 2012 (200 Series) |
| TOYOTA | LANDCRUISER | 2013 - 2015 (200 Series) |
| TOYOTA | LANDCRUISER | 2016 - 2021 (200 Series) |
| TOYOTA | LANDCRUISER PRADO | 2002 - 2009 (120 Series) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series with NAV) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series without NAV) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) |
| TOYOTA | MR2 | 2000 - 2005 (W30 Series) |
| TOYOTA | PRIUS | 1997 - 2003 (XW10 Series) |
| TOYOTA | PRIUS | 2004 - 2009 (XW20 Series) |
| TOYOTA | PRIUS | 2010 - 2015 (XW30 Series) |
| TOYOTA | PRIUS | 2017 - 2019 (XW50 Series) |
| TOYOTA | PRIUS C | 2012 - 2018 (XP130 Series) |
| TOYOTA | PRIUS V | 2012 - 2015 (ZVW40R Series) |
| TOYOTA | PRIUS V | 2015 - 2019 (ZVW40- ZVW41 Series) |
| TOYOTA | RAV4 | 2001 - 2005 (XA20 Series) |
| TOYOTA | RAV4 | 2006 - 2011 (XA30 Series) |
| TOYOTA | RAV4 | 2012 - 2013 (XA40 Series) |
| TOYOTA | RAV4 | 2014 - 2018 (XA40 Series) |
| TOYOTA | RAV4 | 2019 - 2022 (XA50 Series) |
| TOYOTA | RUKUS | 2010 - 2014 (E150 Series) |
| TOYOTA | TARAGO | 2005 - 2017 (XR50 Series) |
| TOYOTA | TUNDRA | 2007 - 2013 (XK50 Series) |
| TOYOTA | TUNDRA | 2014 - 2017 (XK50 Series) |
| TOYOTA | YARIS | 2005 - 2011 (XP90 Series) |
| TOYOTA | YARIS | 2012 - 2014 (XP90 Series) |
| TOYOTA | YARIS | 2014 - 2017 (XP130 Series) |
| TOYOTA | YARIS | 2018 - 2019 (XP130 Series) |
| VOLVO | S80 | 1998 - 2006 (1st Generation) |
| VOLVO | V70 | 2000 - 2004 (2nd Generation) |
| VOLVO | XC70 | 2003 - 2007 (2nd Generation) |
| VOLVO | XC90 | 2002 - 2014 (1st Generation) |
Specifications
| SKU | PACSWICP2 |
|---|---|
| Barcode # | 609098818582 |
| Brand | Pac Audio |
| Shipping Weight | 1.5000kg |
More infoMake 4 payments of $47.50 over 8 weeks and get it now!
Calculate Shipping
Description
Selected Part Number: PACSWICP2
General Product Information
Steering Wheel Control Interface
Retain your factory audio steering wheel controls for use with your aftermarket radio
thanks to the PACSWICP2 from PAC Audio
Works With Analog Vehicles
Based on the reliability of PAC long line of steering wheel retention interfaces, the PACSWICP2 allows easy retention of your steering wheel mounted audio control buttons in vehicles featuring analogue (resistive) wiring styles.
Data Compatible
If your vehicle features more complex data network, there's a good chance your audio mounted steering wheel buttons are data based. With its data network compatibility, the PACSWICP2 allows easy retention of audio steering wheel buttons for your aftermarket radio.
Compatible vehicle networks include:
- GMLAN
- CLASS II
- LIN-BUS
- I-BUS
- CAN BUS
(Check vehicle application listing for compatibility information)
Programming Is Easy as 1,2,3
Programming is made easy with select vehicle profiles preloaded which can be easily setup using the DIP switch settings found on the module.
Simply set the switches and plug the module in to the supplied harness (requires to be hardwired into the vehicle or can be used with select plug and play harnesses avail separately in packages) and away you go.
No preset available? Want to customize your steering wheel button features? No worries!
You can easily manually map your vehicles buttons into the vehicle and customise the button features* (dependant on the aftermarket radios remote control features. See Installation manual for total list of features)
Major Brands Supported
Designed to work with a wide range of vehicles, the PACSWICP2 is compatible with the following brands of aftermarket radios
- Alpine
- Clarion
- Fusion
- JVC
- Kenwood
- Lightning Audio
- Nakamichi
- Pioneer
- Sony
- Stinger
Does your radio only have a 2 wire connection?
There's a good chance the PACSWICP2 will work with its built-in '2 Wire Resistive' feature however compatibility cannot be confirmed.
Feature Packed
Speed through your radio replacement installation when using the PACSWICP2 to retain your factory steering wheel controls.
- Quick and easy pre-programmed button function by DIP switch selection
- Works on Analog (resistive) and Data SWC systems
- For vehicles with CAN-Bus, GMLAN, CLASS II, LIN-Bus, I-BUS, or analogue SWC
- Supports classic, SWI-RC style button programming
- Customizable button functions (short press/long press/button reassignment)
- Provides 2 amp, 12volt accessory output
(CAN-Bus, LAN and Class II applications)
- Compatible with a wide range of late model brands of radios with 3.5mm or two wire connections
What Do You Get?
The PACSWICP2 includes
- Vehicle Interface
- Universal Bare Wire Harness
- Quick Start Guide
- Radio Adaptor Harness
Compatibility Notes
- Does not retain HVAC controls found in General Motors Vehicles
- CAN-BUS vehicles cannot be manually programmed.
- ACC 12v output only available on CAN vehicles where IGN data is available
- Buttons can only be remapped to what is available selected brand of aftermarket radio
- 2-Wire Resistive option is not compatible with all radios featuring this. Manual programming is done via the aftermarket head unit. We cannot guarantee compatibility.
- FORD, EXPLORER 2002-2005 — Models with 24 Pin Connector
- FORD, FIESTA 2002-2006 Models with 3 section headunit
- FORD, FIESTA 2009-2016 — Models with monochrome screen (Clock & Trip screen access is lost)
- FORD, FOCUS (Incl XR5) 1999-2004 — Models with 17 Pin Connector
- FORD, FOCUS (Incl XR5) 2005-2008 — Models with 24 Pin Connector
- HOLDEN, BARINA 2012-2016 — Non MyLink Models (Will lose access to vehicle settings)
- HOLDEN, BARINA SPARK 2010-2016 — 2010-2012 Models with 44 Pin Connector
- HOLDEN, CAPTIVA 7 2006-2015 — Nav Models will lose screen
- HOLDEN, COLORADO (Incl 7) 2012-2013 — Models with 16 Pin Connector
- HOLDEN, COLORADO (Incl 7) 2014-2016 — Models with 16 Pin Connector
- HOLDEN, VIVA, 2006-2011 — Models with 18 Pin Connector
- HONDA, ACCORD EURO 2008-2015 — Models with 24 Pin Connector
- HONDA, CITY, 2015-2018 — Models with mechless head unit
- HONDA, CIVIC HATCH, 2006-2011 — Will not retain OE display above head unit
- HONDA, CIVIC HATCH, 2012-2015 — Nav models – Unable to adjust clock on HUD
- HONDA, CRV, 2007-2011 — Models with 20 Pin Connector
- HONDA, CRV, 2012-2015 — Nav models – Unable to adjust clock on HUD
- HONDA, HRV, 2015-2017 — Models with mechless head unit
- HONDA, HRV, 2017-2018 —Models with mechless head unit
- HONDA, JAZZ, 2008-2013 — Models with 24 Pin Connector
- HONDA, JAZZ, 2014-2016 — Models with mechless head unit
- HONDA, JAZZ, 2017-2018 — Models with mechless head unit with 24 Pin Connector
- HONDA, MDX, 2001-2006 — Models with 20 Pin Connector
- HONDA, ODYSSEY, 2005-2009 — Models with 20 Pin Connector
- HONDA, ODYSSEY, 2009-2013 — Models with 20 Pin Connector
- HONDA, ODYSSEY, 2014-2016 — Unable to adjust clock in cluster
- HYUNDAI, ACCENT, 2006-2008 — Models with 24 Pin Connector
- HYUNDAI, ACCENT, 2011-2018 — Models with 24 Pin Connector
- HYUNDAI, ELANTRA, 2007-2010 — Models with 24 Pin Connector
- HYUNDAI, ELANTRA, 2011-2013 — Models with 24 Pin Connector
- HYUNDAI, GRANDEUR, 2006-2010 — Models with 24 Pin Connector
- HYUNDAI, i30, 2012- 2016 — Nav Models with 24 Pin Connector
- HYUNDAI, ILOAD (Incl IMAX), 2016-2018 — Models with 38 Pin Connector
- HYUNDAI, SONATA, 2006-2008 — Models with 24 Pin Connector
- IVECO, DAILY, 2015-2017 — Models with 12 Pin Connector
- KIA, CARNIVAL (Incl Grand), 2006-2015 — Models with mini ISO Connector
- KIA, CERATO, 2010-2013 — Models with mini ISO Connector
- KIA, SORENTO, 2009-2012 — Non Amplified Models
- LAND ROVER, DISCOVERY III, 2005-2010 — Non Amplified Models
- LAND ROVER, FREELANDER II, 2007-2011 — Non Amplified Models
- LAND ROVER, RANGE ROVER, 2005-2010 — Non Amplified Models
- LAND ROVER, RANGE ROVER 2011-2014 — Non Amplified Models
- LEXUS, IS, 1999-2005 — Non Navigation Models
- MAZDA, 3, 2009-2013 — Non Amplified Models (Will not retain clock & trip display)
- MAZDA, 6, 2010-2012 — Non Amplified Models (Will not retain clock & trip display)
- MAZDA, MX5, 1998-2005 — Non Amplified Models
- MAZDA, MX5, 2006-2008 — Non Amplified Models
- MAZDA, MX5, 2009-2013 — Non Amplified Models
- MAZDA, TRIBUTE, 2001-2005 — Models with 14 Pin Connector
- MITSUBISHI, ASX, 2013-2018 — Amplified Models (AXTO-MI2 also required)
- MITSUBISHI, LANCER (Inc Evolution), 2014-2018 — Amplified Models (AXTO-MI2 also required)
- MITSUBISHI, MAGNA (Inc Verada), 1997-2005 — Models with 6 Pin Connector
- MITSUBISHI, OUTLANDER, 2013-2018 — Amplified Models (AXTO-MI3 also required)
- MITSUBISHI, PAJERO SPORT, 2015-2018 — Amplified Models (AXTO-MI3 also required)
- MITSUBISHI, TRITON, 2007-2013 — Models with trip display
- MITSUBISHI, TRITON, 2013-2015 — Models with trip display
- NISSAN, 350Z, 2006-2008 — Models with 32 Pin Connector
- NISSAN, MAXIMA, 1995-2003 — Models with 32 Pin Connector
- NISSAN, PATHFINDER, 2005-2013 — Models with 16A Connector
- NISSAN, SKYLINE, 2001-2004 — Models with 16 Pin Connector
- SUZUKI, GRAND VITARA, 2005-2014 — 2011+ Models
- SUZUKI, SWIFT, 2011-2016 — 2011+ Models
- TOYOTA, CAMRY, 2018-2018 — Models with 28 Pin Connectors
Important Product Compatibility Information
| Plug & Play | NO |
|---|---|
| Manual Programming Feature | YES – SWC Button remapping via control button |
| Retain Factory Steering Wheel Audio Controls? | YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios |
Product Vehicle Applications
This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| AUDI | A4 (Incl S4) | 2001 - 2008 (B6-B7) |
| BMW | 3 SERIES (Incl M3) | 1997 - 2005 (E46) |
| BMW | 5 SERIES (Incl M5) | 1996 - 2003 (E39) |
| BMW | 5 SERIES (Incl M5) | 2004 - 2011 (E60) |
| BMW | 7 SERIES | 1994 - 2001 (E38) |
| BMW | X5 | 2000 - 2005 (E53) |
| BMW | X5 | 2006 - 2011 (E70) |
| BMW | Z3 | 1996 - 2002 (E36-E37-E38) |
| BMW | Z4 | 2003 - 2008 (E85-E86) |
| CADILLAC | ESCALADE | 1999 - 2001 (FIRST GEN) |
| CADILLAC | ESCALADE | 2002 - 2006 (SECOND GEN) |
| CHEVROLET | AVALANCHE | 1999 - 2002 (FIRST GEN) |
| CHEVROLET | AVALANCHE | 2003 - 2006 (SECOND GEN) |
| CHEVROLET | AVALANCHE | 2007 - 2011 (THIRD GEN) |
| CHEVROLET | CAMARO | 1990 - 1992 (3RD GEN) |
| CHEVROLET | CAMARO | 1993 - 2002 (4TH GEN) |
| CHEVROLET | CORVETTE | 1984 - 1989 (C4) |
| CHEVROLET | CORVETTE | 1990 - 1996 (C4) |
| CHEVROLET | CORVETTE | 1997 - 2004 (C5) |
| CHEVROLET | CORVETTE | 2005 - 2013 (C6) |
| CHEVROLET | SILVERADO | 1999 - 2006 (FIRST GEN) |
| CHEVROLET | SSR | 2003 - 2006 (Super Sports Roadster) |
| CHEVROLET | SUBURBAN | 2000 - 2006 (NINTH GEN) |
| CHRYSLER | NEON | 1996 - 1999 (FIRST GEN) |
| CHRYSLER | NEON | 2000 - 2006 (SECOND GEN) |
| CHRYSLER | PROWLER | 2002 - 2002 (GRRRR…) |
| CHRYSLER | PT CRUISER | 2001 - 2005 (FIRST GEN) |
| CHRYSLER | PT CRUISER | 2006 - 2011 (SECOND GEN) |
| CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 1996 - 2001 (3RD GEN) |
| CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 2001 - 2007 (4TH GEN) |
| CITROEN | DS3 | 2009 - 2016 (FIRST GEN) |
| DODGE | CALIBER | 2006 - 2009 (FIRST GEN) |
| DODGE | RAM | 2002 - 2005 (3RD GEN) |
| FIAT | DUCATO | 2015 - 2018 (FOURTH GEN) |
| FORD | COUGAR | 1999 - 2000 (MK1) |
| FORD | ESCAPE | 2001 - 2007 (FIRST GEN) |
| FORD | ESCAPE | 2006 - 2011 (2ND GEN) |
| FORD | EXPLORER | 1995 - 2001 (UN - US) |
| FORD | EXPLORER | 2002 - 2005 (UT - UX) |
| FORD | EXPLORER | 2006 - 2011 (UZ) |
| FORD | F SERIES | 1995 - 2004 (10th Gen) |
| FORD | F SERIES | 2005 - 2008 (11th Gen) |
| FORD | FALCON | 1998 - 2002 (AU) |
| FORD | FALCON | 2003 - 2008 (BA-BF) |
| FORD | FALCON | 2009 - 2011 (FG) |
| FORD | FIESTA | 2006 - 2008 (WQ) |
| FORD | FIESTA | 2009 - 2016 (WS-WT-WZ) |
| FORD | FOCUS (Incl XR5) | 2005 - 2007 (LS-LT) |
| FORD | TRANSIT | 2007 - 2014 (VM) |
| FOTON | TUNLAND | 2012 - 2016 (E3) |
| GMC | SIERRA | 1999 - 2006 (FIRST GEN) |
| GMC | YUKON | 2007 - 2014 (GMT900 (3RD GEN)) |
| GREAT WALL | STEED | 2016 - 2018 (NBP) |
| GREAT WALL | V200 + V240 | 2009 - 2014 (K2) |
| GREAT WALL | X240 | 2010 - 2011 (H5) |
| HARLEY DAVIDSON | STREET GLIDE | 1998 - 2013 (MOTORBIKE) |
| HARLEY DAVIDSON | ULTRA GLIDE | 1998 - 2013 (MOTORBIKE) |
| HOLDEN | BARINA | 2006 - 2011 (TK) |
| HOLDEN | BARINA | 2012 - 2016 (TM) |
| HOLDEN | BARINA SPARK | 2010 - 2016 (MJ) |
| HOLDEN | CAPTIVA 7 (Incl Variants) | 2006 - 2015 (CG) |
| HOLDEN | COLORADO (Incl 7) | 2012 - 2013 (RG) |
| HOLDEN | COLORADO (Incl 7) | 2014 - 2016 (RG) |
| HOLDEN | COMMODORE | 1997 - 2002 (VT-VX) |
| HOLDEN | COMMODORE | 2002 - 2007 (VY-VZ) |
| HOLDEN | EPICA | 2006 - 2011 (EP) |
| HOLDEN | EQUINOX | 2017 - 2018 (EQ) |
| HOLDEN | TIGRA | 2004 - 2009 (XC) |
| HOLDEN | VECTRA | 2003 - 2011 (ZC) |
| HOLDEN | VIVA | 2006 - 2011 (JF) |
| HONDA | ACCORD | 1989 - 1993 (4TH GEN) |
| HONDA | ACCORD | 1993 - 1997 (5TH GEN) |
| HONDA | ACCORD | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD | 2008 - 2012 (8TH GEN) |
| HONDA | ACCORD EURO | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD EURO | 2008 - 2015 (8TH GEN) |
| HONDA | CITY | 2009 - 2013 (GM) |
| HONDA | CITY | 2013 - 2015 (GM) |
| HONDA | CITY | 2015 - 2019 (GM) |
| HONDA | CIVIC HATCH | 2001 - 2005 (7TH GEN) |
| HONDA | CIVIC HATCH | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC HATCH | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC HATCH | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2001 - 2005 (7TH GEN) |
| HONDA | CIVIC SEDAN | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC SEDAN | 2012 - 2015 (9TH GEN) |
| HONDA | CRV | 1997 - 2006 (RD) |
| HONDA | CRV | 2007 - 2011 (RE) |
| HONDA | CRV | 2012 - 2015 (RM) |
| HONDA | CRV | 2015 - 2016 (RM) |
| HONDA | CRZ | 2010 - 2014 (ZF) |
| HONDA | HRV | 2015 - 2017 (2ND GEN) |
| HONDA | HRV | 2017 - 2019 (2ND GEN) |
| HONDA | INSIGHT | 2009 - 2013 (ZE) |
| HONDA | INTEGRA | 1993 - 2001 (DB - DC1 - DC2) |
| HONDA | INTEGRA | 2002 - 2006 (DC5) |
| HONDA | JAZZ | 2001 - 2007 (GD) |
| HONDA | JAZZ | 2008 - 2013 (GE) |
| HONDA | JAZZ | 2014 - 2016 (GF) |
| HONDA | JAZZ | 2017 - 2019 (GF) |
| HONDA | LEGEND | 1990 - 1996 (KA7-KA8) |
| HONDA | LEGEND | 1996 - 2003 (KA9) |
| HONDA | MDX | 2001 - 2006 (YD1) |
| HONDA | ODYSSEY | 1995 - 1999 (1ST GEN (RA1 - RA5)) |
| HONDA | ODYSSEY | 2004 - 2009 (3RD GEN (RB1 - RB2)) |
| HONDA | ODYSSEY | 2009 - 2013 (4TH GEN (RB3 - RB4)) |
| HONDA | ODYSSEY | 2014 - 2018 (5TH GEN (RC1 - RC2)) |
| HONDA | PRELUDE | 1991 - 1996 (4TH GEN (BA - BB)) |
| HONDA | PRELUDE | 1997 - 2001 (5TH GEN (BB5-BB9)) |
| HONDA | S2000 | 1999 - 2011 (AP1 - AP2) |
| HUMMER | H2 | 2002 - 2007 (H2) |
| HUMMER | H2 | 2008 - 2011 (H2) |
| HYUNDAI | ACCENT | 2006 - 2008 (MC) |
| HYUNDAI | ACCENT | 2011 - 2019 (RB) |
| HYUNDAI | ELANTRA | 2007 - 2010 (HD) |
| HYUNDAI | ELANTRA | 2011 - 2013 (MD-MD2) |
| HYUNDAI | ELANTRA | 2014 - 2015 (MD3) |
| HYUNDAI | ELANTRA | 2016 - 2018 (AD) |
| HYUNDAI | GETZ | 2002 - 2010 (TB) |
| HYUNDAI | GRANDEUR | 2006 - 2010 (TG) |
| HYUNDAI | i20 | 2010 - 2012 (PB) |
| HYUNDAI | i20 | 2012 - 2015 (PB) |
| HYUNDAI | i30 | 2007 - 2011 (FD) |
| HYUNDAI | i30 | 2012 - 2016 (GD-GD2) |
| HYUNDAI | i40 | 2012 - 2018 (VF-VF2-VF3) |
| HYUNDAI | i45 | 2010 - 2012 (YF) |
| HYUNDAI | ILOAD (Incl IMAX) | 2008 - 2016 (TQ) |
| HYUNDAI | ILOAD (Incl IMAX) | 2016 - 2018 (TQ3-V Series II) |
| HYUNDAI | ILOAD (Incl IMAX) | 2018 - 2019 (TQ4) |
| HYUNDAI | ix35 | 2010 - 2013 (LM) |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITH NAV |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITHOUT NAV |
| HYUNDAI | SANTA FE | 2001 - 2006 (SM) |
| HYUNDAI | SANTA FE | 2009 - 2012 (CM) |
| HYUNDAI | SANTA FE | 2012 - 2018 (DM) |
| HYUNDAI | SONATA | 1995 - 2001 (Y3) |
| HYUNDAI | SONATA | 2002 - 2005 (EF) |
| HYUNDAI | SONATA | 2006 - 2008 (NF) |
| HYUNDAI | SONATA | 2009 - 2011 (YF) |
| HYUNDAI | TIBURON | 1997 - 2002 (RD - RD2) |
| HYUNDAI | TIBURON | 2003 - 2008 (GK) |
| HYUNDAI | TUCSON | 2015 - 2018 (TL) |
| HYUNDAI | VELOSTER | 2012 - 2017 (1ST GEN) |
| ISUZU | DMAX | 2012 - 2016 (RT50 - RT85) |
| ISUZU | DMAX | 2016 - 2019 (RT50 - RT85) |
| ISUZU | MUX | 2013 - 2015 (RF10) |
| ISUZU | MUX | 2016 - 2017 (RF20) |
| IVECO | DAILY | 2007 - 2014 (5TH GEN) |
| IVECO | DAILY | 2015 - 2017 (6TH GEN) |
| IVECO | DAILY | 2018 - 2019 (6TH GEN) |
| JAGUAR | S-TYPE | 2000 - 2002 (No Chassis Code) |
| JAGUAR | S-TYPE | 2003 - 2008 (No Chassis Code) |
| JAGUAR | X-TYPE | 2002 - 2015 (No Chassis Code) |
| JEEP | CHEROKEE | 1994 - 2001 (XJ) |
| JEEP | CHEROKEE | 2001 - 2007 (KJ) |
| JEEP | COMMANDER | 2005 - 2008 (XK) |
| JEEP | COMPASS | 2007 - 2009 (MK) |
| JEEP | GRAND CHEROKEE | 1999 - 2004 (WJ-WG) |
| JEEP | GRAND CHEROKEE | 2005 - 2007 (WH-WK) |
| JEEP | PATRIOT | 2007 - 2009 (MK) |
| JEEP | WRANGLER | 1986 - 2004 (YJ - TJ) |
| JEEP | WRANGLER | 2003 - 2006 (TJ) |
| KIA | CARNIVAL (Incl Grand) | 1998 - 2005 (KV-II) |
| KIA | CARNIVAL (Incl Grand) | 2006 - 2015 (VQ) |
| KIA | CERATO | 2010 - 2012 (TD) |
| KIA | CERATO | 2013 - 2018 (YD) |
| KIA | CERATO | 2019 - 2021 (BD) |
| KIA | MAGENTIS | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2010 - 2013 (TF1) |
| KIA | OPTIMA | 2013 - 2015 (TF2) |
| KIA | PICANTO | 2016 - 2017 (TA) |
| KIA | PRO CEED | 2014 - 2015 (JD) |
| KIA | RIO | 2010 - 2014 (UB) |
| KIA | RIO | 2014 - 2017 (UB) |
| KIA | RONDO | 2007 - 2012 (UN) |
| KIA | RONDO | 2013 - 2018 (RP) |
| KIA | SORENTO | 2007 - 2008 (BL) |
| KIA | SORENTO | 2009 - 2012 (XM) |
| KIA | SORENTO | 2013 - 2015 (XM) |
| KIA | SORENTO EX | 2003 - 2009 (BL) |
| KIA | SORENTO LX | 2001 - 2003 (BL) |
| KIA | SORENTO LX | 2007 - 2009 (BL) |
| KIA | SOUL | 2009 - 2011 (AM) |
| KIA | SOUL | 2014 - 2018 (PS) |
| KIA | SPORTAGE | 2010 - 2015 (SL) |
| KIA | SPORTAGE | 2016 - 2018 (QL) |
| LAMBORGHINI | GALLARDO | 2005 - 2011 (No Chassis Code) |
| LAND ROVER | DISCOVERY III | 2005 - 2010 (L319) |
| LAND ROVER | RANGE ROVER (Incl HSE - VOGUE) | 2002 - 2012 (L322) |
| LEXUS | ES | 1992 - 1996 (XV10) |
| LEXUS | ES | 1997 - 2001 (XV20) |
| LEXUS | ES | 2002 - 2006 (XV30) |
| LEXUS | GS | 1998 - 2006 (S160) |
| LEXUS | IS | 1999 - 2005 (XE10) |
| LEXUS | LX | 1998 - 2007 (J100) |
| LEXUS | RX | 2003 - 2008 (XU30) |
| MAZDA | 2 | 2007 - 2015 (DE) |
| MAZDA | 3 | 2004 - 2009 (BK) |
| MAZDA | 3 | 2009 - 2013 (BL) |
| MAZDA | 3 | 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY |
| MAZDA | 323 | 1986 - 1994 (BF - BG) |
| MAZDA | 6 | 2003 - 2005 (GG) |
| MAZDA | 6 | 2005 - 2008 (GG) |
| MAZDA | 6 | 2010 - 2012 (GH) |
| MAZDA | BT-50 | 2015 - 2019 (UR) WITH 7inch NAV |
| MAZDA | CX-3 | 2015 - 2021 |
| MAZDA | CX5 | 2015 - 2017 (KE) |
| MAZDA | CX7 | 2006 - 2010 (ER) |
| MAZDA | CX7 | 2010 - 2011 (ER) |
| MAZDA | MPV | 2000 - 2006 (LW) |
| MAZDA | MX5 | 1998 - 2005 (NB) |
| MAZDA | MX5 | 2006 - 2008 (NC) |
| MAZDA | MX5 | 2009 - 2013 (ND) |
| MAZDA | PREMACY | 2000 - 2006 (1ST GEN) |
| MAZDA | RX8 | 2004 - 2008 (FE) |
| MAZDA | RX8 | 2008 - 2012 (FE) |
| MAZDA | TRIBUTE | 2001 - 2006 (1ST GEN) |
| MAZDA | TRIBUTE | 2006 - 2011 (2ND GEN) |
| MITSUBISHI | 380 | 2004 - 2011 (DB) |
| MITSUBISHI | ASX | 2010 - 2013 (XA) |
| MITSUBISHI | ASX | 2013 - 2019 (XB - XC) |
| MITSUBISHI | CHALLENGER | 2009 - 2013 (PB) |
| MITSUBISHI | CHALLENGER | 2013 - 2015 (PC) |
| MITSUBISHI | DELICA | 2007 - 2010 (5TH GEN) |
| MITSUBISHI | LANCER (Inc Evolution) | 2007 - 2013 (CJ) |
| MITSUBISHI | LANCER (Inc Evolution) | 2014 - 2018 (CF) |
| MITSUBISHI | MAGNA (Inc Verada) | 1997 - 2005 (TF) |
| MITSUBISHI | MIRAGE | 2013 - 2019 (LA) |
| MITSUBISHI | OUTLANDER | 2003 - 2006 (ZE-ZF) |
| MITSUBISHI | OUTLANDER | 2007 - 2012 (ZG-ZH) |
| MITSUBISHI | OUTLANDER | 2013 - 2018 (ZJ-ZK) |
| MITSUBISHI | PAJERO | 2006 - 2015 (NS-NT-NW) |
| MITSUBISHI | PAJERO | 2015 - 2021 (NT-NX) |
| MITSUBISHI | PAJERO SPORT | 2016 - 2018 (KR - KS - QE) |
| MITSUBISHI | TRITON | 2007 - 2013 (ML) |
| MITSUBISHI | TRITON | 2013 - 2015 (MN) |
| MITSUBISHI | TRITON | 2015 - 2018 (MQ) |
| MITSUBISHI | TRITON | 2019 - 2021 (MR) |
| NISSAN | 200SX | 1999 - 2002 (S14) |
| NISSAN | 350Z | 2003 - 2005 (Z33) |
| NISSAN | 350Z | 2006 - 2008 (Z33) |
| NISSAN | 370Z | 2009 - 2011 (Z34) |
| NISSAN | DUALIS | 2007 - 2013 (J10) |
| NISSAN | ELGRAND | 2001 - 2004 (E51) |
| NISSAN | ELGRAND | 2005 - 2010 (E51) |
| NISSAN | JUKE | 2013 - 2015 (F15) |
| NISSAN | JUKE | 2016 - 2018 (F15) |
| NISSAN | MAXIMA | 1995 - 2003 (A33) |
| NISSAN | MICRA | 2003 - 2009 (K12) |
| NISSAN | MURANO | 2005 - 2008 (Z50) |
| NISSAN | MURANO | 2009 - 2011 (Z51) |
| NISSAN | NAVARA | 2005 - 2015 (D22-D40) |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) RX-DX MODELS |
| NISSAN | NAVARA | 2019 - 2020 (D23) |
| NISSAN | PATHFINDER | 1996 - 2005 (R50) |
| NISSAN | PATHFINDER | 2003 - 2004 (WX-WX2) |
| NISSAN | PATHFINDER | 2005 - 2013 (R51) |
| NISSAN | PATROL | 1998 - 2009 (Y61) |
| NISSAN | PATROL | 2010 - 2013 (Y61) |
| NISSAN | PULSAR | 2013 - 2016 (C12) |
| NISSAN | SKYLINE | 1999 - 2002 (R34) |
| NISSAN | SKYLINE | 2001 - 2004 (V35) |
| NISSAN | SKYLINE | 2005 - 2007 (V35) |
| NISSAN | TIIDA | 2006 - 2011 (C2) |
| NISSAN | XTRAIL | 2003 - 2007 (T30) |
| NISSAN | XTRAIL | 2007 - 2013 (T31) |
| NISSAN | XTRAIL | 2019 - 2020 (T32) |
| PEUGEOT | 4008 | 2010 - 2014 (No Chassis Code) |
| PEUGEOT | 4008 | 2014 - 2017 (No Chassis Code) |
| PONTIAC | FIREBIRD | 1993 - 2002 (5th GEN) |
| PONTIAC | GRAND AM | 1992 - 1997 (3rd GEN) |
| PORSCHE | CAYENNE | 2002 - 2012 (9PA) |
| PROTON | GEN2 | 2005 - 2009 (CM) |
| PROTON | PERSONA | 1999 - 2004 (CM) |
| PROTON | PREVE + SUPRIMA | 2012 - 2015 (CR) |
| PROTON | SATRIA (Incl GTI) | 1999 - 2004 (BS) |
| PROTON | SAVVY | 2005 - 2009 (BT - BT S2) |
| SAAB | 93 | 1998 - 2004 (440) |
| SAAB | 93 | 2004 - 2014 (442) |
| SAAB | 95 | 2000 - 2005 (YS3E) |
| SAAB | 95 | 2005 - 2011 (YS3G) |
| SAAB | 97 | 2006 - 2011 (No Chassis Code) |
| SSANGYONG | ACTYON | 2006 - 2013 (100 Series) |
| SSANGYONG | KORANDO | 2011 - 2012 (C200) |
| SSANGYONG | KORANDO | 2013 - 2015 (C200) |
| SSANGYONG | KYRON | 2006 - 2011 (D100) |
| SSANGYONG | REXTON | 2006 - 2011 (Y250) |
| SSANGYONG | STAVIC | 2006 - 2012 (A100) |
| SSANGYONG | STAVIC | 2013 - 2015 (A100) |
| SUBARU | BRZ | 2017 - 2020 (POST-FACELIFT) |
| SUBARU | FORESTER | 1998 - 2006 (SF - SG) |
| SUBARU | FORESTER | 2007 - 2012 (SH) |
| SUBARU | FORESTER | 2013 - 2014 (SJ) |
| SUBARU | FORESTER | 2015 - 2018 (SJ) |
| SUBARU | GL (Incl DL) | 1981 - 1989 (No Chassis Code) |
| SUBARU | IMPREZA | 2016 - 2018 (GK-GT) |
| SUBARU | IMPREZA (Inc WRX) | 1993 - 2006 (GC-GD-GG) |
| SUBARU | IMPREZA (Inc WRX) | 2007 - 2012 (GE-GH-GR-GV) |
| SUBARU | IMPREZA (Inc WRX) | 2012 - 2014 (GP-GJ) |
| SUBARU | IMPREZA (Inc WRX) | 2015 - 2016 (GP-GJ) |
| SUBARU | LEVORG | 2016 - 2018 (V1) |
| SUBARU | LIBERTY (Inc Outback) | 1995 - 2003 (BE-BH-BT) |
| SUBARU | LIBERTY (Inc Outback) | 2004 - 2005 (BL-BP) |
| SUBARU | LIBERTY (Inc Outback) | 2006 - 2008 (BL-BP) |
| SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITH NAV |
| SUBARU | LIBERTY (Inc Outback) | 2009 - 2014 (BM-BR) WITHOUT NAV |
| SUBARU | LIBERTY (Inc Outback) | 2015 - 2017 (BN-BS) |
| SUBARU | LIBERTY (Inc Outback) | 2018 - 2020 (BN-BS) |
| SUBARU | WRX (Inc STI) | 2015 - 2018 (VA) |
| SUBARU | XV | 2012 - 2014 (GP) |
| SUBARU | XV | 2015 - 2016 (GP Facelift) |
| SUBARU | XV | 2017 - 2021 (GT) |
| SUZUKI | BALENO | 2016 - 2018 (EW) |
| SUZUKI | GRAND VITARA | 2003 - 2005 (SQ625) |
| SUZUKI | GRAND VITARA | 2005 - 2014 (JB) |
| SUZUKI | GRAND VITARA | 2015 - 2018 (JB) |
| SUZUKI | KIZASHI | 2010 - 2014 (FR) |
| SUZUKI | LIANA | 2005 - 2008 (RH416 - RH518) |
| SUZUKI | SWIFT | 2006 - 2010 (RS416) |
| SUZUKI | SWIFT | 2011 - 2016 (FZ) |
| SUZUKI | SWIFT | 2017 - 2020 (AZ) |
| SUZUKI | SX4 (Incl S-Cross) | 2007 - 2011 (GYB - GYC) |
| SUZUKI | SX4 (Incl S-Cross) | 2014 - 2016 (GYA) |
| SUZUKI | VITARA | 2015 - 2016 (LY) |
| SUZUKI | XL7 | 2007 - 2009 (JA) |
| TOYOTA | 86 | 2017 - 2020 (POST-FACELIFT) |
| TOYOTA | ALPHARD | 2008 - 2014 (AH20 Series) |
| TOYOTA | ALPHARD | 2015 - 2017 (AH30 Series) |
| TOYOTA | AURION | 2006 - 2011 (XV40 Series) |
| TOYOTA | AURION | 2012 - 2015 (XV50 Series) |
| TOYOTA | AURION | 2015 - 2017 (XV50 Series) |
| TOYOTA | C-HR | 2017 - 2019 (AX10 Series) |
| TOYOTA | CAMRY | 2002 - 2006 (XV30 Series) |
| TOYOTA | CAMRY | 2007 - 2011 (XV40 Series) |
| TOYOTA | CAMRY | 2012 - 2017 (XV50 Series) |
| TOYOTA | CAMRY | 2018 - 2020 (XV70 Series) |
| TOYOTA | CELICA | 2000 - 2005 (T230 Series) |
| TOYOTA | COROLLA | 1998 - 2002 (E110 Series) |
| TOYOTA | COROLLA | 2003 - 2009 (E140 - E160 Series) |
| TOYOTA | COROLLA | 2009 - 2012 (E120 Series) |
| TOYOTA | COROLLA HATCH | 2013 - 2015 (E180 Series) |
| TOYOTA | COROLLA HATCH | 2015 - 2018 (E180 - E200 Series) |
| TOYOTA | COROLLA SEDAN | 2014 - 2016 (E170 Series) |
| TOYOTA | COROLLA SEDAN | 2017 - 2018 (E170 Series) |
| TOYOTA | ECHO | 2000 - 2004 (XP10 Series) |
| TOYOTA | ESTIMA | 2000 - 2005 (XR30-XR40 Series) |
| TOYOTA | ESTIMA | 2006 - 2016 (XR50 Series) |
| TOYOTA | FORTUNER | 2015 - 2019 (AN150 - AN160 Series) |
| TOYOTA | HIACE | 2005 - 2019 (H200 Series) |
| TOYOTA | HILUX | 1997 - 2004 (N140 - N150 - N160 - N170 Series) |
| TOYOTA | HILUX | 2005 - 2010 (AN10 - AN20 - AN30 Series) |
| TOYOTA | HILUX | 2011 - 2013 (AN10 - AN20 - AN30 Series) |
| TOYOTA | HILUX | 2013 - 2015 (AN10 - AN20 - AN30 Series) |
| TOYOTA | HILUX | 2015 - 2020 (AN120 - AN130 Series) |
| TOYOTA | HILUX | 2020 - 2021 (AN120 - AN130 Series) |
| TOYOTA | KLUGER | 2003 - 2006 (XU20 Series) |
| TOYOTA | KLUGER | 2007 - 2013 (XU40 Series) |
| TOYOTA | KLUGER | 2014 - 2019 (XU50 Series) |
| TOYOTA | LANDCRUISER | 2001 - 2008 (100 Series) |
| TOYOTA | LANDCRUISER | 2002 - 2009 (120 Series) |
| TOYOTA | LANDCRUISER | 2008 - 2012 (200 Series) |
| TOYOTA | LANDCRUISER | 2013 - 2015 (200 Series) |
| TOYOTA | LANDCRUISER | 2016 - 2021 (200 Series) |
| TOYOTA | LANDCRUISER PRADO | 2002 - 2009 (120 Series) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series with NAV) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series without NAV) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) |
| TOYOTA | MR2 | 2000 - 2005 (W30 Series) |
| TOYOTA | PRIUS | 1997 - 2003 (XW10 Series) |
| TOYOTA | PRIUS | 2004 - 2009 (XW20 Series) |
| TOYOTA | PRIUS | 2010 - 2015 (XW30 Series) |
| TOYOTA | PRIUS | 2017 - 2019 (XW50 Series) |
| TOYOTA | PRIUS C | 2012 - 2018 (XP130 Series) |
| TOYOTA | PRIUS V | 2012 - 2015 (ZVW40R Series) |
| TOYOTA | PRIUS V | 2015 - 2019 (ZVW40- ZVW41 Series) |
| TOYOTA | RAV4 | 2001 - 2005 (XA20 Series) |
| TOYOTA | RAV4 | 2006 - 2011 (XA30 Series) |
| TOYOTA | RAV4 | 2012 - 2013 (XA40 Series) |
| TOYOTA | RAV4 | 2014 - 2018 (XA40 Series) |
| TOYOTA | RAV4 | 2019 - 2022 (XA50 Series) |
| TOYOTA | RUKUS | 2010 - 2014 (E150 Series) |
| TOYOTA | TARAGO | 2005 - 2017 (XR50 Series) |
| TOYOTA | TUNDRA | 2007 - 2013 (XK50 Series) |
| TOYOTA | TUNDRA | 2014 - 2017 (XK50 Series) |
| TOYOTA | YARIS | 2005 - 2011 (XP90 Series) |
| TOYOTA | YARIS | 2012 - 2014 (XP90 Series) |
| TOYOTA | YARIS | 2014 - 2017 (XP130 Series) |
| TOYOTA | YARIS | 2018 - 2019 (XP130 Series) |
| VOLVO | S80 | 1998 - 2006 (1st Generation) |
| VOLVO | V70 | 2000 - 2004 (2nd Generation) |
| VOLVO | XC70 | 2003 - 2007 (2nd Generation) |
| VOLVO | XC90 | 2002 - 2014 (1st Generation) |
Specifications
| SKU | PACSWICP2 |
|---|---|
| Barcode # | 609098818582 |
| Brand | Pac Audio |
| Shipping Weight | 1.5000kg |
