Selected Part Number: PACAP4-TY12
General Product Information

The PAC AmpPRO AP4-TY12 provides a 6-channel RCA output from the factory infotainment system for use with aftermarket audio equipment including Aftermarket Amplifiers and Digital Sound Processors.


Designed for SELECT Lexus / Toyota Vehicles

Aftermarket Amplifier Integration Made Easy

Many of today's vehicles have fancy radios with lots of features, Bluetooth, vehicle settings, climate control, amplified audio systems and more.


When you want to get better quality sound and more power, adding an amplifier is great way to improve your audio system.


This can be difficult and time consuming on a-lot of vehicles.

PAC simplifies this with AmpPRO, the plug and play amplifier integration solution.

Compatible With Nearly Every Aftermarket Amplifier

Featuring 6 channels of RCA output, the AmpPRO interface is designed to be used with many aftermarket amplifiers offering front, rear and sub-woofer outputs.


As long as your aftermarket amplifier has RCA inputs, your set to go

Complete Control At Your Fingertips

Most modern vehicles have extensive data control networks like CANBUS. The AmpPRO Interface is designed to communicate with these networks giving you complete control from your factory infotainment system like from factory including

  • Bass
  • Treble
  • Fading
  • Balance

You even get a 3 Band adjustable EQ (via PAC AmpPRO Application for Windows) where you can adjust

  • Frequency
  • Q Factor
  • Gain
  • Warning Chime Levels (vehicle dependant)

Digital Expandability

Installing a digital sound processor or a high end amplifier with TOSlink Input?


With the optional APA-TOS1 interface (sold separately) you can feed a digital stereo signal straight to your amplifier or DSP for the best quality sound.


(Fading control not possible with using Toslink output)

Plug and Play With Ease

Each AmpPRO interface includes a vehicle specific Plug and Play harness. This harness saves time having to hard-wire in like conventional line out converters and also offers the ability to retain extra factory audio channels like Bluetooth and navigation audio.


Plugs into the OEM Radio at the dash board and away you go.

With the supplied bass control knob, you can directly adjust the volume of the sub-woofer channels even if your factory radio didn't have it.

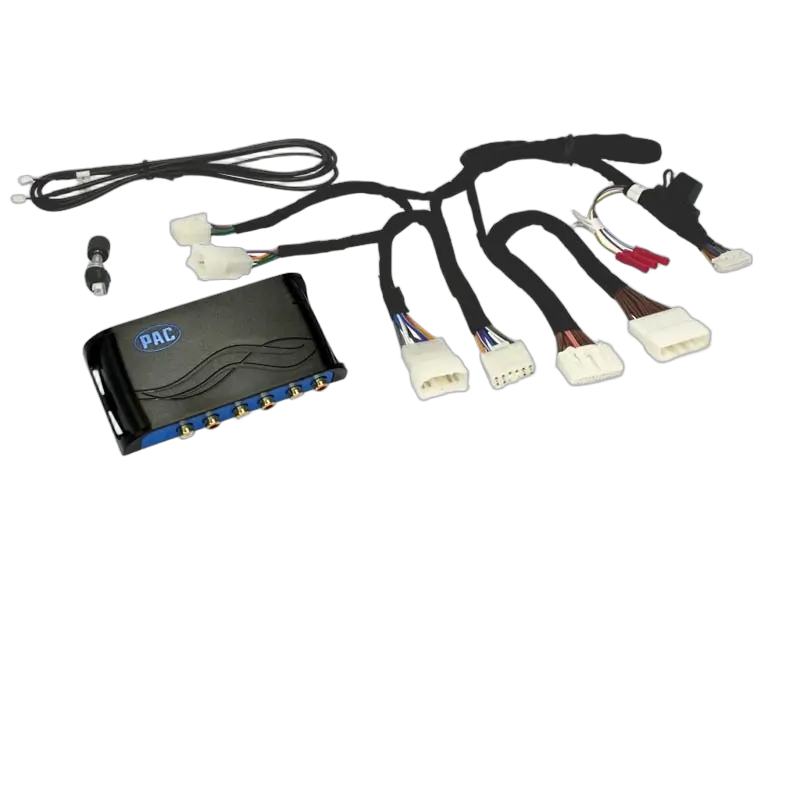

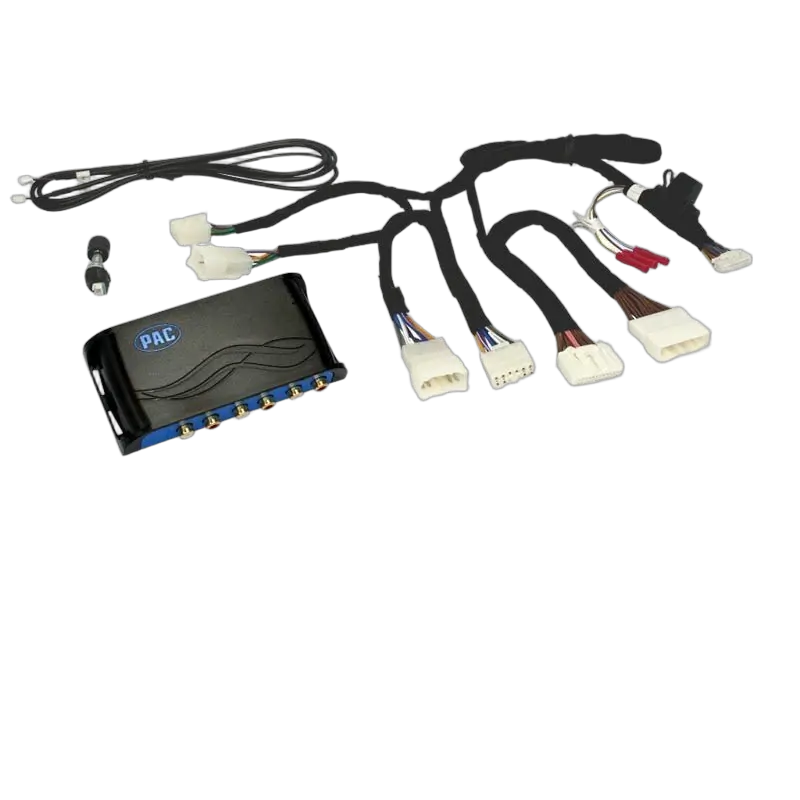

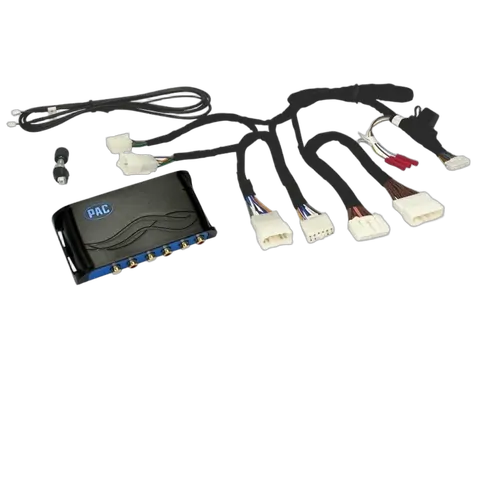

Includes Everything You Need

The PAC AmpPRO AP4-TY12 kit includes


  • Vehicle Specific Interface with RCA Pre-Outs
  • Vehicle Specific 'T' Harness
  • Subwoofer (CH5+6) Level Controller port,
  • Subwoofer Level Controller Harness
  • Instruction Manual

Product Overview Video

Check Out These Recommended Accessories

TOSLINK Add-on Adaptor

Part Number: PACAPA-TOS1

Speaker Connection Harness

Part Number: PACAPH-TY02

Compatablity Notes

Vehicle must have the 10-PIN + 16-PIN + 28-PIN Connectors

at the OEM radio to be compatible.

Vehicle MUST be factory amplified.

  • Vehicles with Telematics (ie: SOS, Enform, etc) will require some additional wiring. See manual for details.

  • Vehicle must be equipped with a JBL or Pioneer system.

  • Lexus vehicles equipped with the Mark Levinson system are not compatible.

  • Lexus CT200h: Must be equipped with a center channel and a subwoofer


Important Product Compatibility Information
Plug & Play

YES

Vehicle Plug Style

28PIN, 10PIN, and 6PIN TOYOTA Style Connectors

Product Notes

Suits models with FACTORY AMPLIFIED SYSTEM ONLY

RCA Pre-Outs

6 Channel Stereo

Optical Audio Out

Requires PACAPA-TOS1 module to offer 1x TOSLINK Audio Output

Product Vehicle Applications
What Fits My Car

This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
Vehicle Make Vehicle Model Vehicle Year + Vehicle Chassis Code
LEXUS CT 2014 - 2018 (A10)
LEXUS ES 2012 - 2018 (XV60)
LEXUS IS 2016 - 2018 (XE30)
LEXUS NX 2014 - 2018 (AZ10)
LEXUS RC 2014 - 2018 (XC10)
LEXUS RX 2016 - 2018 (AL20)
TOYOTA CAMRY 2012 - 2017 (XV50 Series)
TOYOTA FORTUNER 2015 - 2019 (AN150 - AN160 Series)
TOYOTA KLUGER 2014 - 2019 (XU50 Series)
TOYOTA KLUGER 2018 - 2019 (XU50 Series) WITH 360 DEGREE CAMERA
TOYOTA PRIUS 2017 - 2019 (XW50 Series)
TOYOTA PRIUS V 2015 - 2019 (ZVW40- ZVW41 Series)
TOYOTA TUNDRA 2014 - 2017 (XK50 Series)
SKU PACAP4-TY12
Barcode # 609098882611
Brand Pac Audio
Shipping Weight 1.5000kg
