The PAC AmpPRO AP4-CH41 provides a 6-channel RCA output from the factory infotainment system for use with aftermarket audio equipment including Aftermarket Amplifiers and Digital Sound Processors.
Designed for SELECT Chrysler / Dodge / Jeep / RAM Vehicles
Aftermarket Amplifier Integration Made Easy
Many of today's vehicles have fancy radios with lots of features, Bluetooth, vehicle settings, climate control, amplified audio systems and more.
When you want to get better quality sound and more power, adding an amplifier is great way to improve your audio system.
This can be difficult and time consuming on a-lot of vehicles.
PAC simplifies this with AmpPRO, the plug and play amplifier integration solution.
Compatible With Nearly Every Aftermarket Amplifier
Featuring 6 channels of RCA output, the AmpPRO interface is designed to be used with many aftermarket amplifiers offering front, rear and sub-woofer outputs.
As long as your aftermarket amplifier has RCA inputs, your set to go
Complete Control At Your Fingertips
Most modern vehicles have extensive data control networks like CANBUS. The AmpPRO Interface is designed to communicate with these networks giving you complete control from your factory infotainment system like from factory including
- Bass
- Treble
- Fading
- Balance
You even get a 3 Band adjustable EQ (via PAC AmpPRO Application for Windows) where you can adjust
- Frequency
- Q Factor
- Gain
Digital Expandability
Installing a digital sound processor or a high end amplifier with TOSlink Input?
With the optional APA-TOS1 interface (sold separately) you can feed a digital stereo signal straight to your amplifier or DSP for the best quality sound.
(Fading control not possible with using Toslink output)
Plug and Play With Ease
Each AmpPRO interface includes a vehicle specific Plug and Play harness. This harness saves time having to hard-wire in like conventional line out converters and also offers the ability to retain extra factory audio channels like Bluetooth and navigation audio.
Plugs into the OEM Radio at the dash board and away you go.
With the supplied bass control knob, you can directly adjust the volume of the sub-woofer channels even if your factory radio didn't have it.
Includes Everything You Need
The PAC AmpPRO AP4-CH41 kit includes
- Vehicle Specific Interface with RCA Pre-Outs
- Vehicle Specific 'T' Harness
- Subwoofer (CH5+6) Level Controller port,
- Subwoofer Level Controller Harness
- Instruction Manual
Product Overview Video
Compatablity Notes
Vehicle must have the 52-PIN Chrysler style connector at the OEM radio to be compatible.
Jeep Cherokee, Chrysler 200, and Maserati: These vehicles must be equipped with a factory amplifier as the AP4 cannot reprogram the factory radio to think that an amplifier is present.
Amplified Vehicles
Compatible with all data-bus controlled amplified systems, no matter the screen size (including the new 12" screen).
To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats or Harman Kardon. Some vehicles may not always have branded compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer.
Non-Amplified Vehicles
- Jeep Wrangler/Gladiator: Compatible with all screen sizes (5”, 7”, and 8”).
- All other models: Only compatible in vehicles equipped with the 7” or 8” screen.
- Vehicles equipped with the 5” screen are not compatible.
- If you are installing the AmpPRO in a vehicle that is not equipped with a factory amplifier, you must add an amplifier to the vehicle's speakers, as the factory radio will no longer have a 4 channel variable output after it has been re-configured by the AmpPRO. For example, this will not work to add only a subwoofer to a non-amplified vehicle, as the radio will no longer power the cabin speakers properly.
- Non-amplified vehicles equipped with an Active Noise Cancellation (ANC) system require the ANC module to be bypassed.
- This can be done manually or with the ANC bypass harness ANC-CH01 (coming soon).
The following vehicles have an ANC module that needs to be bypassed:
- 2017-2019 Chrysler Pacifica
- 2015-2016 Jeep Grand Cherokee
- 2019 RAM Truck (Non-Classic)
PLEASE NOTE:
Some Chrysler / Jeep / Dodge vehicles may require some time from after the radio is removed and re installed to detect all factory features. This is not a limitation of the interface more of the vehicle. If you remove and reinstall the radio, you may need to start and shut down the vehicle a few times.
| Plug & Play | YES |
|---|---|
| Vehicle Plug Style | 52PIN CHRYSLER Style Connector |
| Product Notes | Suits models with FACTORY AMPLIFIED SYSTEM ONLY |
| RCA Pre-Outs | 6 Channel Stereo |
| Optical Audio Out | Requires PACAPA-TOS1 module to offer 1x TOSLINK Audio Output |
| Vehicle Notes | CHRYSLER, 300C, 2011 – 2018 (THIRD GEN) – Compatible with 2015 Onward models only (Earlier models use PACAP4CH31) |
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| CHRYSLER | 300C | 2011 - 2018 (THIRD GEN) |
| DODGE | CHALLENGER R/T | 2015 - 2020 (THIRD GEN) |
| DODGE | RAM | 2013 - 2020 (4TH GEN) |
| JEEP | CHEROKEE | 2014 - 2018 (KL) |
| JEEP | GLADIATOR | 2020 - 2021 (JT) |
| JEEP | GRAND CHEROKEE | 2014 - 2020 (WK2) |
| JEEP | WRANGLER | 2019 - 2021 (JL) |
| SKU | PACAP4-CH41 |
|---|---|
| Barcode # | 609098817011 |
| Brand | Pac Audio |
| Shipping Weight | 1.5000kg |

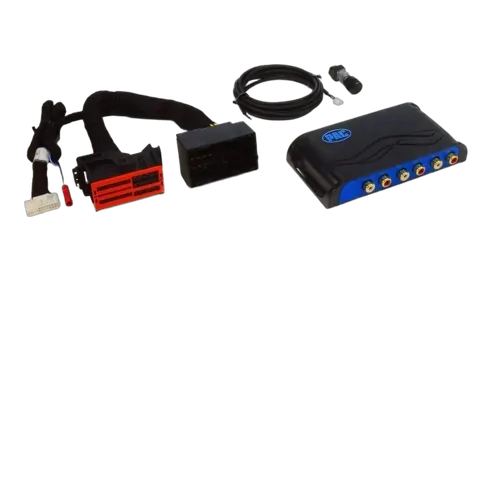

Pac Audio Amppro 13-19 Chrysler/Dodge/Jeep Rca Out Kit
