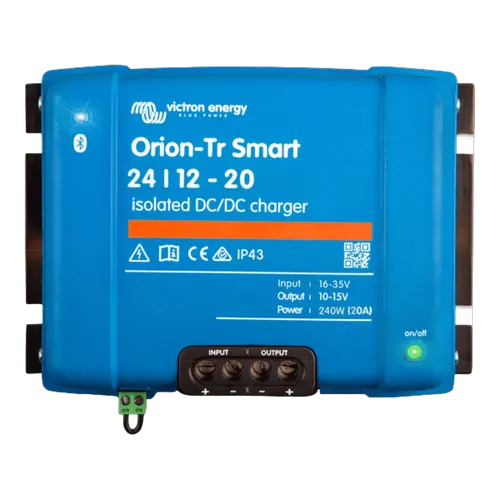

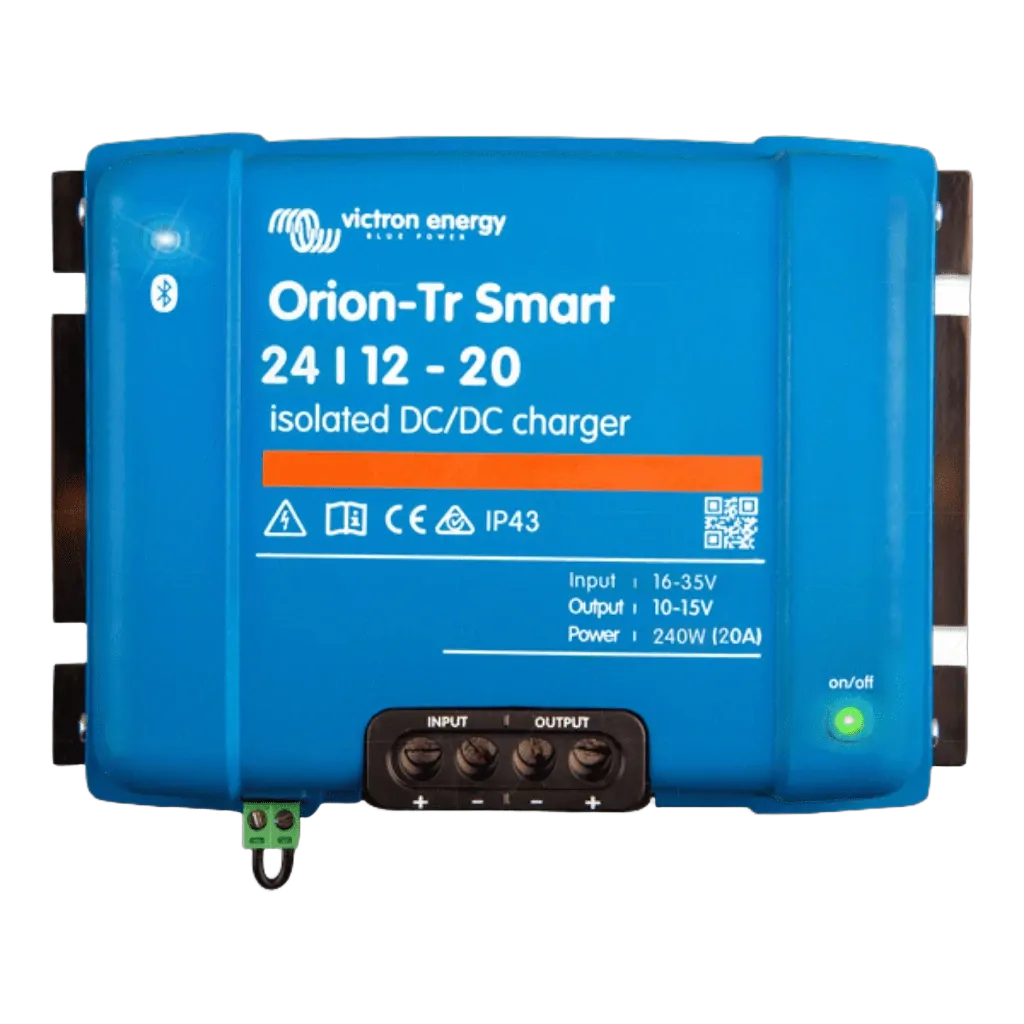

The Orion-Tr Smart DC-DC charger Can be used as:

A professional DC to DC 3-stage charger with built-in Bluetooth. It is designed for use in dual battery systems in vehicles or boats where the alternator (Smart Alternator compatible) and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

• 12V and 24V compatible, suitable for both lead acid to lithium batteries. Models are available up to 400W, and limitless units can be connected in parallel to increase output power. Full rate output up to 40°C but also suitable for high temperatures up to 55°C.

Can be used as a power supply or as a battery charger. In charger mode, the three-stage charge algorithm will increase battery life by properly charging the battery. Especially in the case of vehicles with a smart alternator or voltage drop caused by long cable runs, controlled charging is indispensable. Controlled charging will also protect the alternator in lithium systems where direct charging can overload the alternator due to the low resistance of the lithium battery. In fixed output mode, the output voltage will remain constant independent of the input voltage (within the compatible V range).

Specifications:

·         Model: ORI241224120

• Input voltage range: 16 - 35V
• Under voltage shut down: 14V
• Under voltage restart: 15V
• Nominal output voltage: 12.2V
• Output voltage range: 12 - 15V
• Short circuit current: 50A
• Nominal output power at 25°C: 300W (25A)
• Continuous output power at 40°C: 240W / 20A
• Operating temperature range: -20 to +55°C
• DC connection: Screw terminal
• Maximum cable cross-section: 16mm2 (AWG5) Please note minimum cable size required is 10mm2 (AWG8)
• Weight: 1.8kg
• Dimensions (HxWxD): 130 x 186 x 70 mm
• Warranty: 5 years
• IP Rating: IP43
