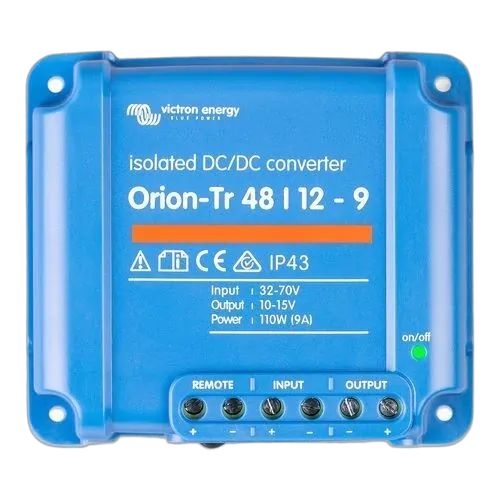

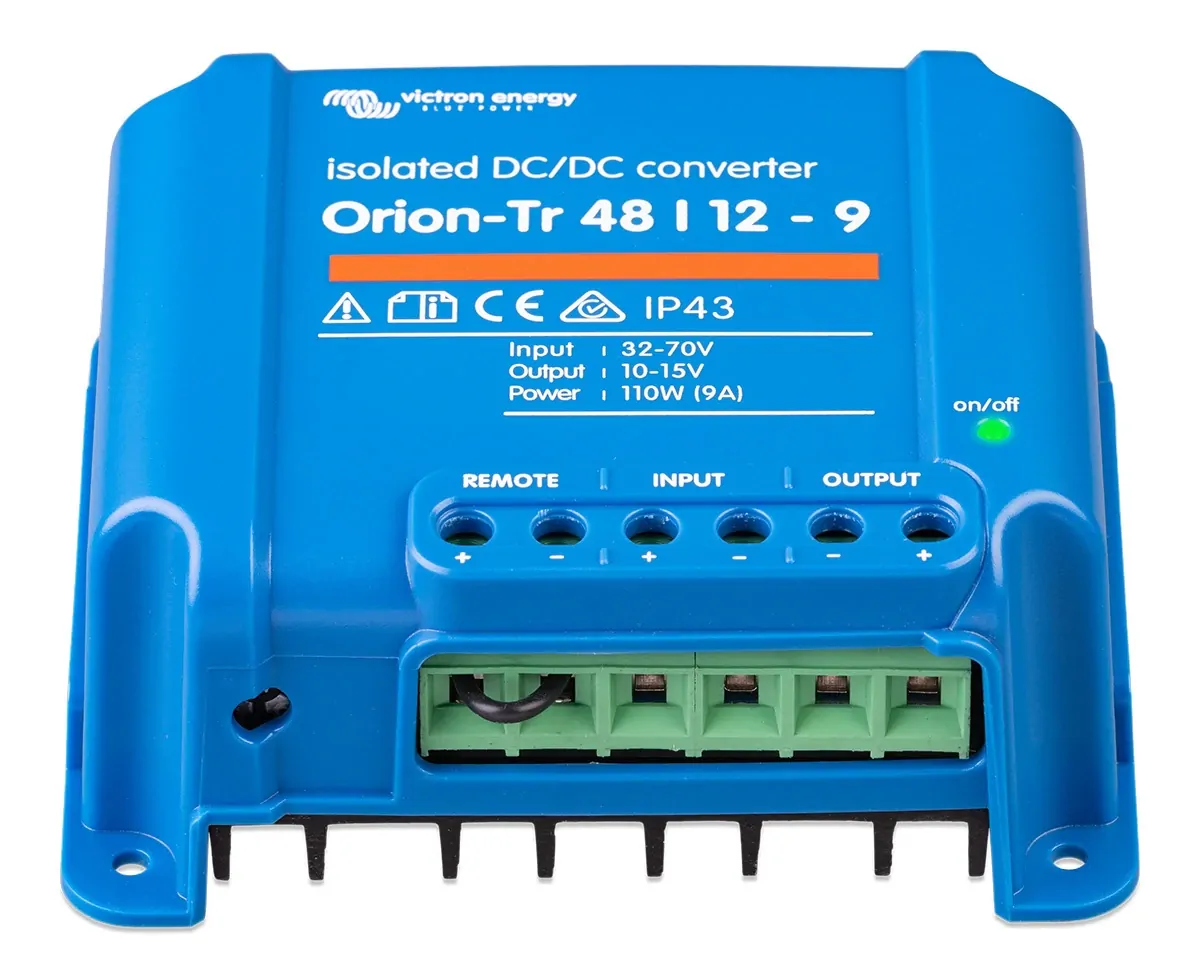

Victron Orion-Tr DC-DC converter 48V to 12V 9A (110W) with Galvanic Isolation
Features:
Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch.
All models are short circuit proof and can be paralleled to increase the output current.
An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
|
Input Voltage Range |
32-70V |
|
Under Voltage Shut Down |
28V |
|
Under Voltage Resart |
30V |
|
Nominal Output Voltage |
12.2V |
|
Output Voltage Adjust Range |
10-15V |
|
Continuous Output Current at Nominal Output Voltage and 25°C |
9A |
|
Maximum Output Current (10s) at Nominal Output Voltage |
12.5A |
|
Short Circuit Output Current |
27A |
|
Efficiency |
87% |
|
Operating Temperature Range |
-20 to +55°C (derate 3% per °C above 40°C) |
|
DC Connection |
Screw Terminals |
|
Maximum Cable Cross-Section |
6mm² |
|
Warranty |
5 Years |
|
Weight |
0.42kg |
|
Dimensions |
100 x 113 x 47mm |
| SKU | ORI481210110 |
|---|---|
| Barcode # | 8719076016762 |
| Brand | Victron |
| Shipping Weight | 1.0000kg |
Orion-Tr 48/12-9A (110W) Isolated Dc-Dc Converter
