Features:
- 48V - 12V / 20Amps
- DC-DC Converter
- IP43 Protection
- Adjustable Output Voltage
- Short-Circuit Proof
Remote On/Off:
The remote on-off eliminates the need for a high-current switch in the Input wiring. The remote on-off can be operated with a low-power switch or, for example, the engine run/stop switch (see manual).
Adjustable Output Voltage:
The converter can also be used as a battery charger, for example, to charge a 12-volt starter or accessory battery in an otherwise 24-volt system.
High Temperature Protected:
The output current will reduce at high ambient temperatures.
IP43 Protection:
When installed with the screw terminals oriented downward.
Screw Terminals:
No special tools are needed for installation.
Input Fuse (non-replaceable):
On 12V and 24V input models only.
|
Input Voltage Range |
32-70V |
|
Under Voltage Shut Down |
28V |
|
Under Voltage Resart |
30V |
|
Nominal Output Voltage |
12.2V |
|
Output Voltage Adjust Range |
10-15V |
|
Continuous Output Current at Nominal Output Voltage and 25°C |
20A |
|
Maximum Output Current (10s) at Nominal Output Voltage |
25A |
|
Short Circuit Output Current |
50A |
|
Efficiency |
87% |
|
Operating Temperature Range |
-20 to +55°C (derate 3% per °C above 40°C) |
|
DC Connection |
Screw Terminals |
|
Maximum Cable Cross-Section |
6mm² |
|
Warranty |
5 Years |
|
Weight |
1.3kg |
|
Dimensions |
130 x 186 x 70mm |
| SKU | ORI481224110 |
|---|---|
| Barcode # | 8719076035282 |
| Brand | Victron |
| Shipping Weight | 1.5000kg |

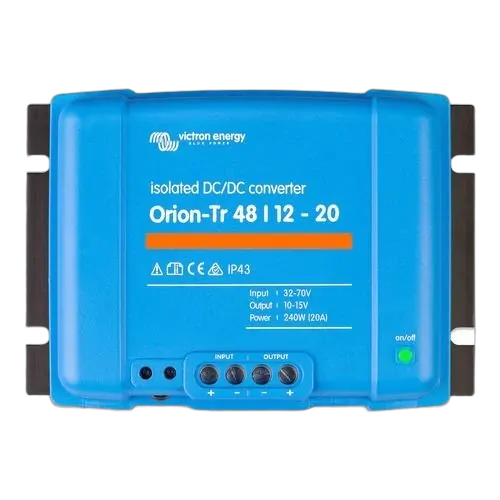

Orion-Tr 48/12-20A (240W) Isolated Dc-Dc Converter
