High efficiency-
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection-
**** installed with the screw terminals oriented downwards.
Screw terminals-
No special tools needed for installation.
|
Non isolated converters |

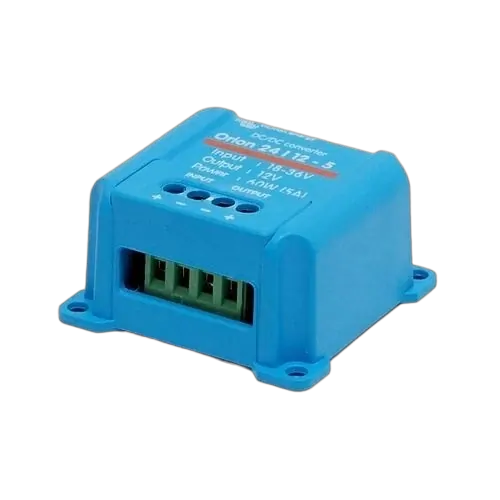

Orion-Tr 24/12-5 |
Orion-Tr 24/12-10 |
Orion-Tr 24/12-15 |
Orion-Tr 24/12-20 |
|
|
***** voltage range |
18-35V |
18-35V |
18-35V |
18-35V |
|
|
Output voltage |
12.7V |
12.5V |
12.5V |
12.5V |
|
|
Efficiency |
95% |
97% |
97% |
97% |
|
|
Continuous output current |
5A |
10A |
15A |
20A |
|
|
Max. Output current |
7A |
12A |
20A |
25A |
|
|
Galvanic isolation |
no |
no |
no |
no |
|
|
Off load current |
< 20mA |
< 45mA |
< 35mA |
< 35mA |
|
|
Operating temperature range (derate 3% per °C above 40°C) |
-20 ** +55°C |
||||
|
DC connection |
Screw terminals |
||||
|
Maximum cable cross-section |
3,3 mm² AWG12 |
6 mm² AWG10 |
6 mm² AWG10 |
6 mm² AWG10 |
|
|
Weight kg |
0,09 |
0,2 |
0,25 |
0,25 |
|
|
(lbs) |
(0.20) |
(0.44) |
(0.55) |
(0.55) |
|
|
Dimensions hxwxd ** mm (hxwxd in inches) |
53x51x27 (2.1x2x1.1) |
73x94x37 (2.9x3.7x1.5) |
73x94x45 (2.9x3.7x1.8) |
73x94x45 (2.9x3.7x1.8) |
|
|
Standards: Safety |
EN 60950 |
||||
|
Emission |
EN 61000-6-3, EN 55014-1 |
||||
|
Immunity |
EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
||||
|
Automotive Directive |
ECE R10-4 |
||||
| SKU | ORI241205200R |
|---|---|
| Barcode # | 8719076022855 |
| Brand | Victron |
| Shipping Weight | 1.0000kg |
