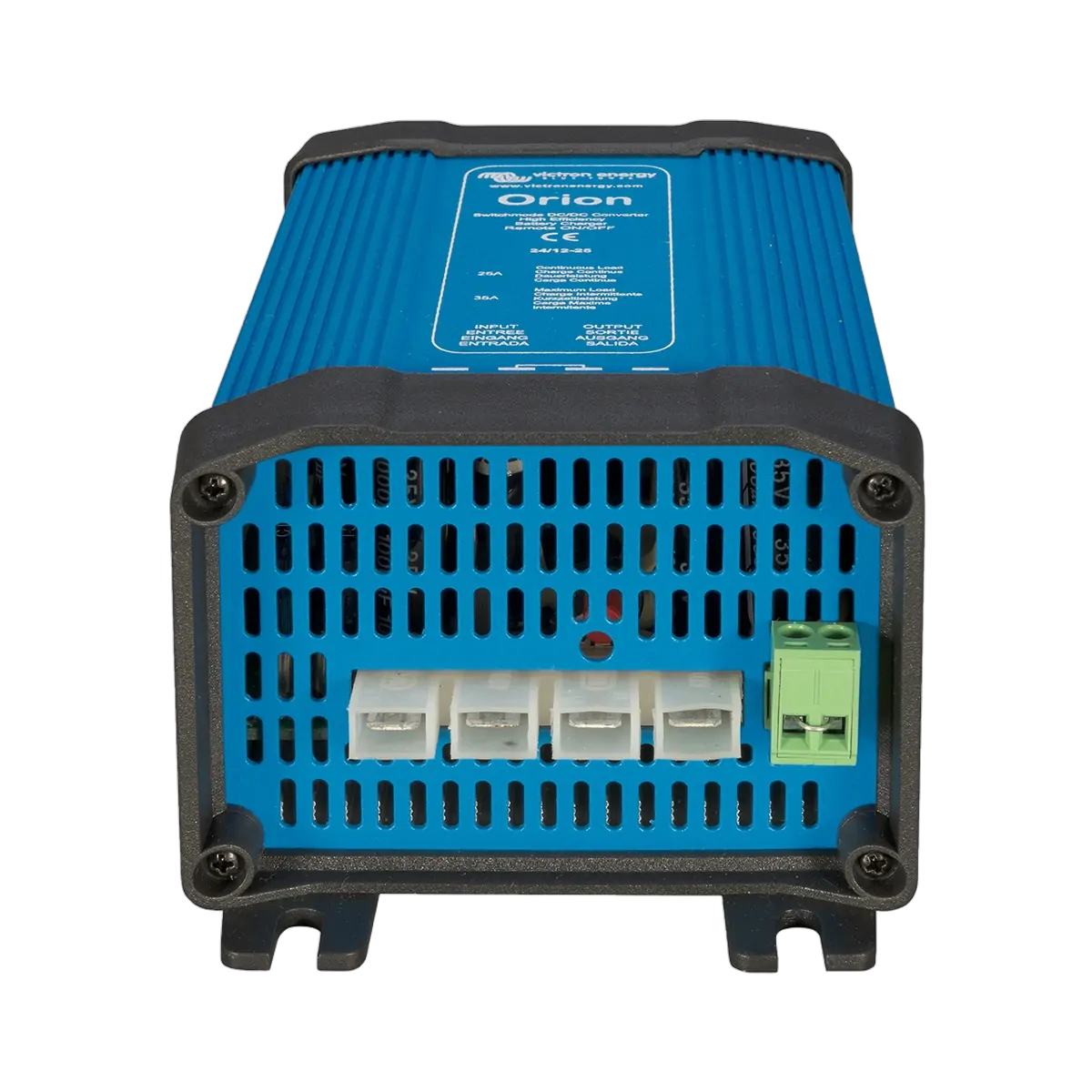

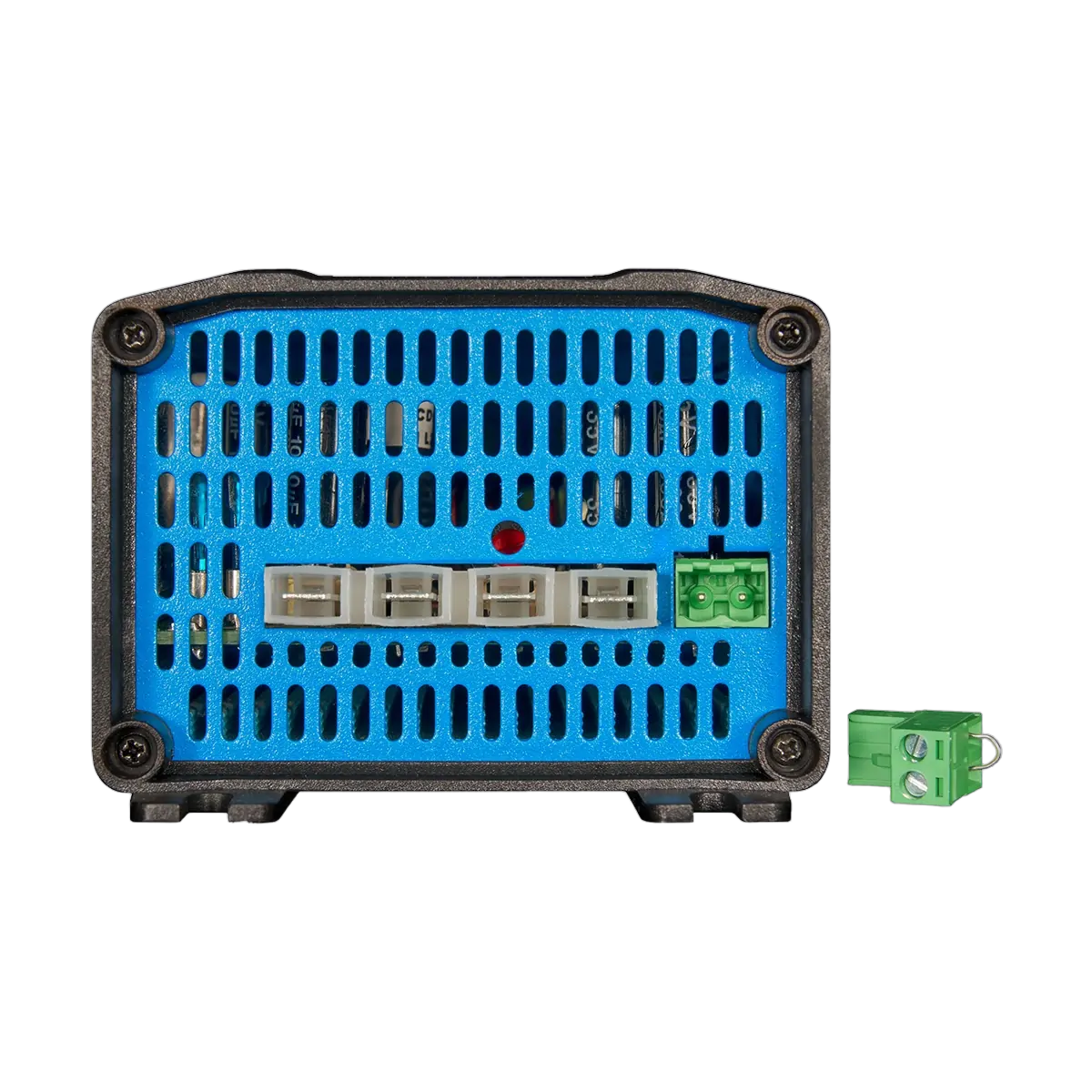

Remote on-off connector-

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).



All models with adjustable output can also be used as a battery charger-

For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.



All models with adjustable output can be paralleled to increase output current-

Up to five units can be connected in parallel.



The Orion 12/27,6-12: a 24V battery charger (see page 2)-

To charge a 24V battery from a 12V system. The output voltage of this model can be adjusted with a potentiometer



A super wide input range buck-boost regulator: the Orion 7-35/12-3 (see page 2)-

The Orion 7-35/12-3 is an isolated converter with a very wide input range, suitable for both 12V and 24V systems, and a fixed 12,6V output.



Easy to install-

Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).

Non isolated





converters





Orion





24/12-70





Input voltage range (V)





18-35





Under voltage shutdown (V)





14





Under voltage restart (V)





18





Output voltage





adjustable with potentiometer





yes











Output voltage (V)





Adjustable 10–15V





F set 13,2V





Efficiency (%)





92





Suitable to buffer-charge a battery





yes





Can be connected in parallel





yes





Continuous output current (A)





70





Max. Output current (A)





85





Fan assisted cooling (temp. controlled)





yes





Galvanic isolation





no





Off load current





< 20mA





Remote on-off





yes





Operating  temperature range





(derate 3% per °C above40°C)





-20 to +55°C











DC connection











M6 bolts





Weightkg





(lbs)





0,9





(2.0)





Dimensions hxwxd in mm





(hxwxd in inches)





65x88x195 (2.6x3.5x7.7)





Standards: Safety





Emission Immunity





Automotive Directive





EN 60950





EN 61000-6-3, EN 55014-1





EN 61000-6-2, EN 61000-6-1, EN 55014-2





ECE R10-4



SKU ORI241270020
Barcode # 8719076023043
Brand Victron
Shipping Weight 1.0000kg

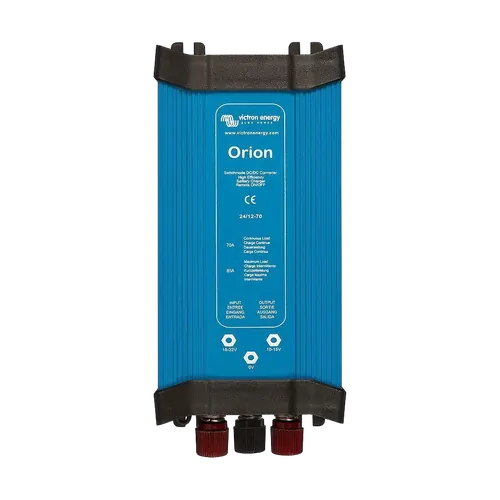

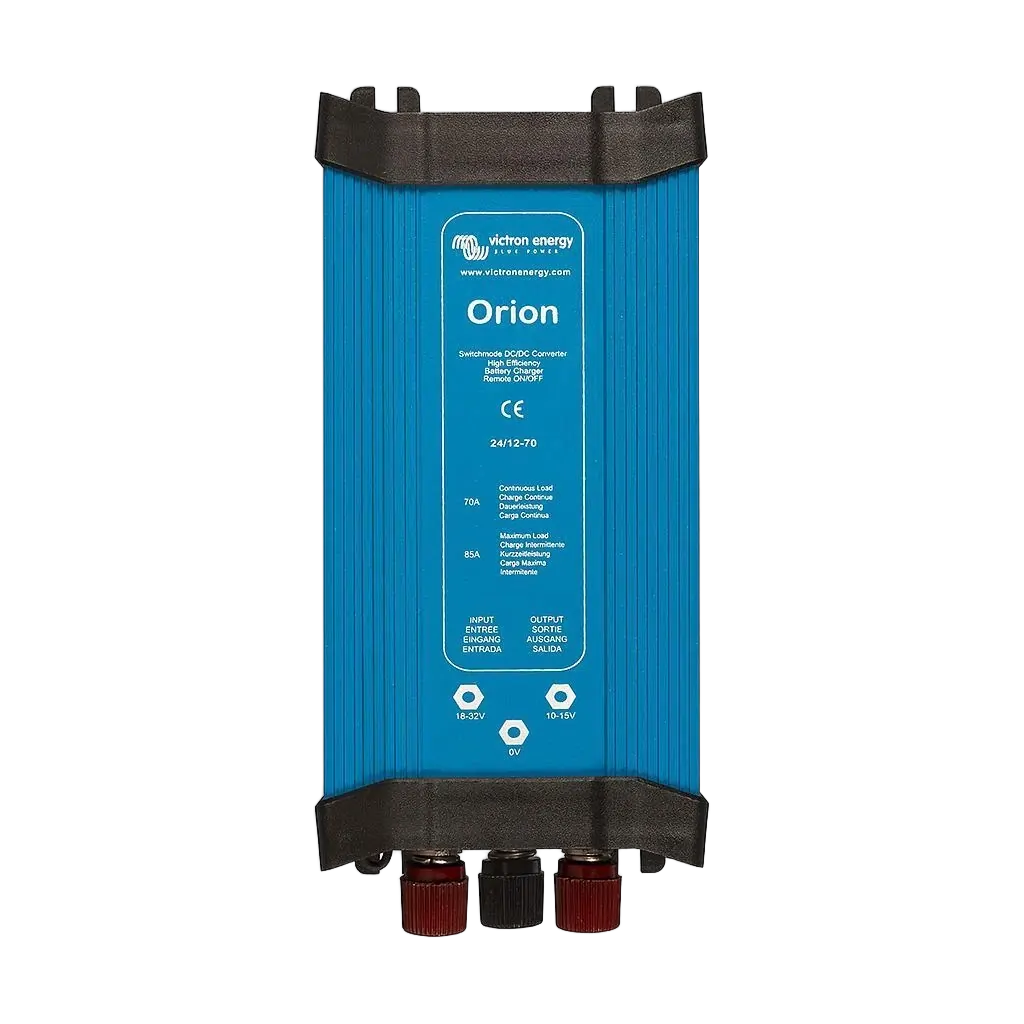

Orion 24/12-70A Dc-Dc Converter

SKU: ORI241270020
Sale price
$250.99
RRP $287.10
Earn 2,500 Outback Rewards Points
Sale price
$250.99
DON'T PAY RRP $287.10
PayPal Checkout
4 payments of $62.75

afterpay More info.

Make 4 payments of $62.75 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $62.75

Calculate Shipping
