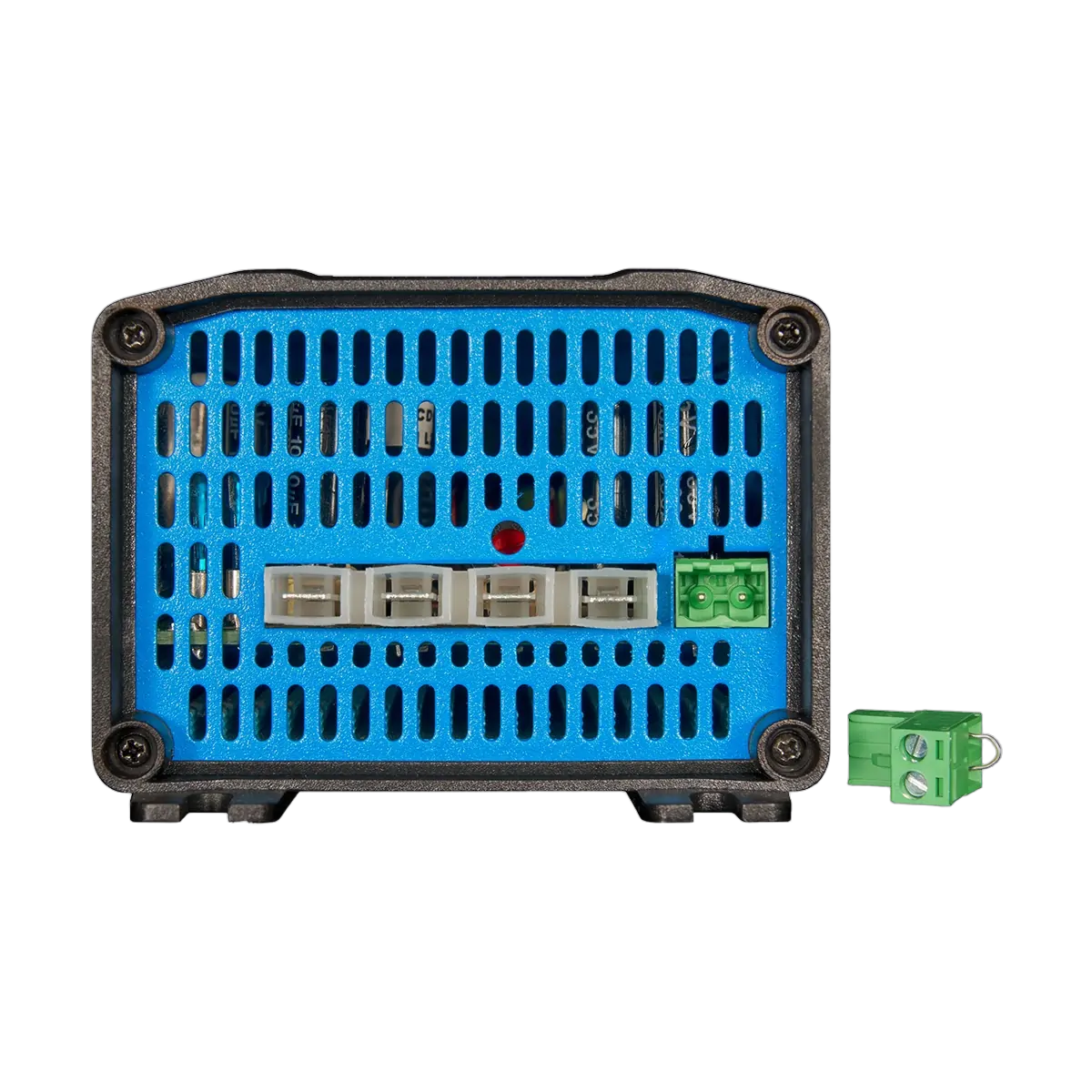

Remote on-off connector-
The remote on-off ********** the **** for a **** current switch in the input wiring. *** remote on-off *** be operated with a *** power switch or by *** engine run/stop switch (see manual).
All ****** with adjustable output can also be used as a battery charger-
For example to charge a 12 Volt starter or ********* battery in an otherwise 24V system.
All ****** with adjustable output can be paralleled to increase ****** current-
Up ** five units *** ** connected in parallel.
The Orion 12/27,6-12: a 24V battery charger (*** page 2)-
To charge a 24V battery from a 12V system. *** output voltage of this model can be adjusted with a potentiometer
A super wide input range buck-***** regulator: *** Orion 7-35/12-3 (see page 2)-
The Orion 7-35/12-3 is an isolated converter with a very wide input range, suitable *** **** 12V and 24V systems, *** a fixed 12,6V output.
Easy to install-
Delivery includes four Insulated Fastons Female ***** 6.3mm (eight Fastons in case of *** Orion 24/12-40).
|
Non isolated converters |
Orion 24/12-25 |
Orion 24/12-40 |
Orion 24/12-70 |
Orion 12/24-8 |
Orion 12/24-10 |
Orion 12/24-20 |
|
Input voltage range (V) |
18-35 |
18-35 |
18-35 |
9-18 |
9-18 |
9-18 |
|
Under voltage shutdown (V) |
14 |
14 |
14 |
8 |
8 |
8 |
|
***** voltage restart (V) |
18 |
18 |
18 |
10 |
10 |
10 |
|
Output voltage adjustable with potentiometer |
yes |
no |
yes |
no |
yes |
yes |
|
Output voltage (V) |
Adjustable 10–15V F set 13,2V |
13,2 |
Adjustable 10–15V F *** 13,2V |
24 |
Adjustable 20-30V F set 26,4V |
Adjustable 20-30V F set 26,4V |
|
********** (%) |
96 |
95 |
92 |
95 |
95 |
93 |
|
Suitable to buffer-charge a battery |
yes |
no |
yes |
no |
yes |
yes |
|
Can be connected in parallel |
yes |
no |
yes |
no |
yes |
yes |
|
Continuous output ******* (A) |
25 |
40 |
70 |
8 |
10 |
20 |
|
Max. Output current (A) |
35 |
55 |
85 |
20 |
20 |
30 |
|
Fan assisted cooling (temp. controlled) |
no |
yes |
yes |
no |
no |
yes |
|
Galvanic isolation |
no |
no |
no |
no |
no |
no |
|
*** **** current |
< 15mA |
< 20mA |
< 20mA |
< 10mA |
< 15mA |
< 30mA |
|
Remote on-off |
yes |
yes |
yes |
no |
no |
yes |
|
Operating temperature range (derate 3% per °C above40°C) |
-20 ** +55°C |
-20 to +55°C |
-20 to +55°C |
-20 to +55°C |
-20 to +55°C |
-20 to +55°C |
|
** connection |
****** tabs 6.3 mm |
****** Faston tabs 6.3 mm |
M6 bolts |
Faston tabs 6.3 mm |
Faston tabs 6.3 mm |
M6 bolts |
|
Weightkg (lbs) |
0,7 (1.55) |
0,85 (1.9) |
0,9 (2.0) |
0,4 (0.8) |
0,4 (0.9) |
0,9 (2.0) |
|
Dimensions hxwxd ** mm (hxwxd in inches) |
65x88x160 (2.6x3.5x6.3) |
65x88x185 (2.6x3.5x7.3) |
65x88x195 (2.6x3.5x7.7) |
45x90x115 (1.8x3.5x4.5) |
45x90x125 (1.8x3.5x4,5) |
65x88x195 (2.6x3.5x7.7) |
|
Standards: Safety Emission Immunity ********** Directive |
EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-4 |
|||||
| SKU | ORI241225020 |
|---|---|
| Barcode # | 8719076023012 |
| Brand | Victron |
| Shipping Weight | 1.2000kg |
More infoMake 4 payments of $32.00 over 8 weeks and get it now!
Calculate Shipping
