Description
9-33V 200 x 142mm with Park Light Function Delivering superior white L.E.D light performance this world class headlamp is ideal for fitment to modern trucks and buses where reliability and performance are a must. The lamp features high/low and park functions and replaces either Sealed or semi-Sealed beams.
SPECIFICATIONS
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | Low Beam: 1.80A at 12V 1.00A at 24V High Beam: 3.60A at 12V 1.80A at 24V |
| IP RATING | IP68 |
| SIZE | 200 x 142mm |
| ADR | 46/00 E13-112R-01-13977 49/00 E13-7R-02-13977 |

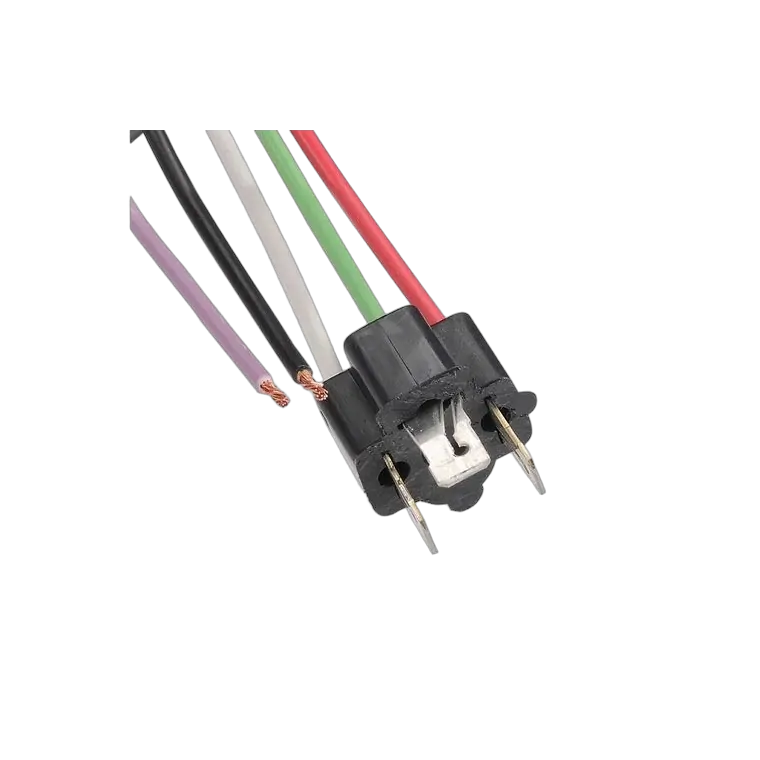

| COMPRISES | Virtually unbreakable polycarbonate lens; Military grade housing; H4 connector for easy retro-fit connection; |
Specifications
| SKU | 72126 |
|---|---|
| Barcode # | 9314464721267 |
| Brand | Narva |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.180m |
| Shipping Length | 0.235m |

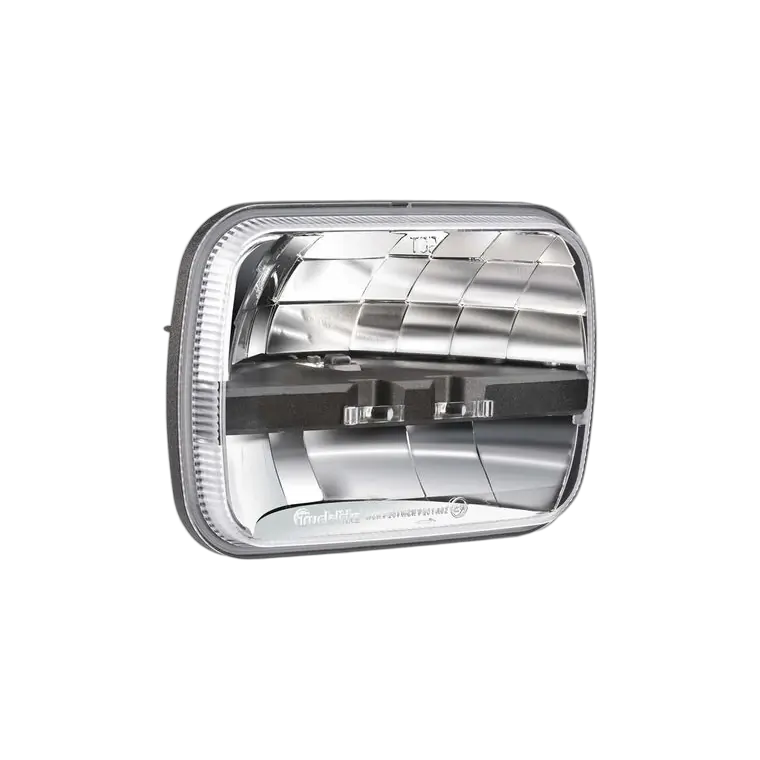

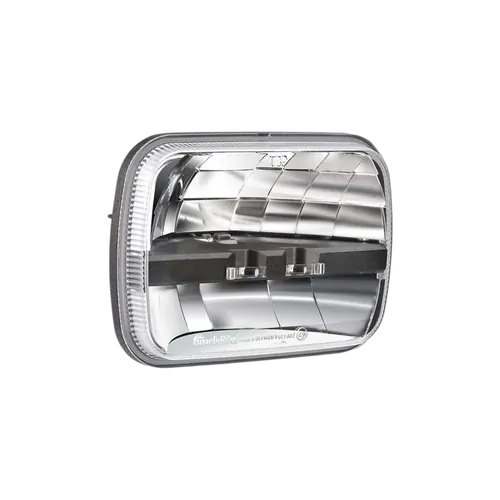

Narva Truck-Lite LED High/Low Beam Free Form Headlamp Insert
SKU: 72126
More infoMake 4 payments of $273.50 over 8 weeks and get it now!
Calculate Shipping
Description
9-33V 200 x 142mm with Park Light Function Delivering superior white L.E.D light performance this world class headlamp is ideal for fitment to modern trucks and buses where reliability and performance are a must. The lamp features high/low and park functions and replaces either Sealed or semi-Sealed beams.
SPECIFICATIONS
| INPUT VOLTAGE RANGE | 9-33V |
|---|---|
| CURRENT DRAW | Low Beam: 1.80A at 12V 1.00A at 24V High Beam: 3.60A at 12V 1.80A at 24V |
| IP RATING | IP68 |
| SIZE | 200 x 142mm |
| ADR | 46/00 E13-112R-01-13977 49/00 E13-7R-02-13977 |
| COMPRISES | Virtually unbreakable polycarbonate lens; Military grade housing; H4 connector for easy retro-fit connection; |
Specifications
| SKU | 72126 |
|---|---|
| Barcode # | 9314464721267 |
| Brand | Narva |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.180m |
| Shipping Length | 0.235m |
