Description
These connectors are made by a number of manufactures, but all will fit into each brand provided the style is the same.Features
- There are 5 main styles:
- 7 pin flat.
- 12 pin flat (which also accepts the 7 pin flat)
- 6 pin small round (becoming outdated).
- 7 pin small round
- 7 pin large round (mainly vic and SA use).
If it mounts on the car it is a CAR socket , if it is on the front of a trailer or Caravan it is a Trailer Plug (regardless of male or female).
Most photos show BRITAX brand, however ARK are very similar.
WIRING DIAGRAM:
PIN 1 - Left Indicator - Yellow
PIN 2 - Reverse - Black
PIN 3 - Earth - White
PIN 4 - Right Indicator - Green
PIN 5 - Electric Brakes - Blue
PIN 6 - Stop Light - Red
PIN 7 - Tail/No Plate - Brown - 1 year warranty.
| SKU | 500-06512 |
|---|---|
| Barcode # | OEBC525450 |
| Brand | Narva |
| Shipping Weight | 0.0600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.040m |
| Shipping Length | 0.060m |

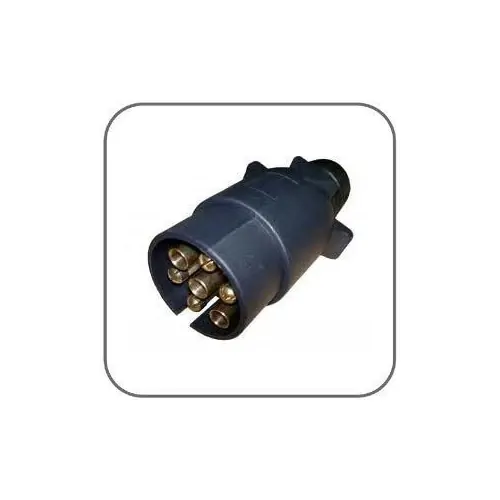

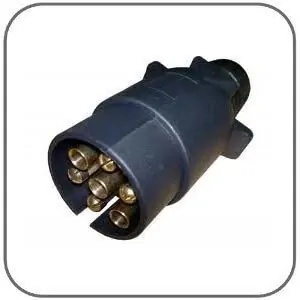

Narva Trailer Plug 7 Pin Large Round Plastic. 82181BL
