Description

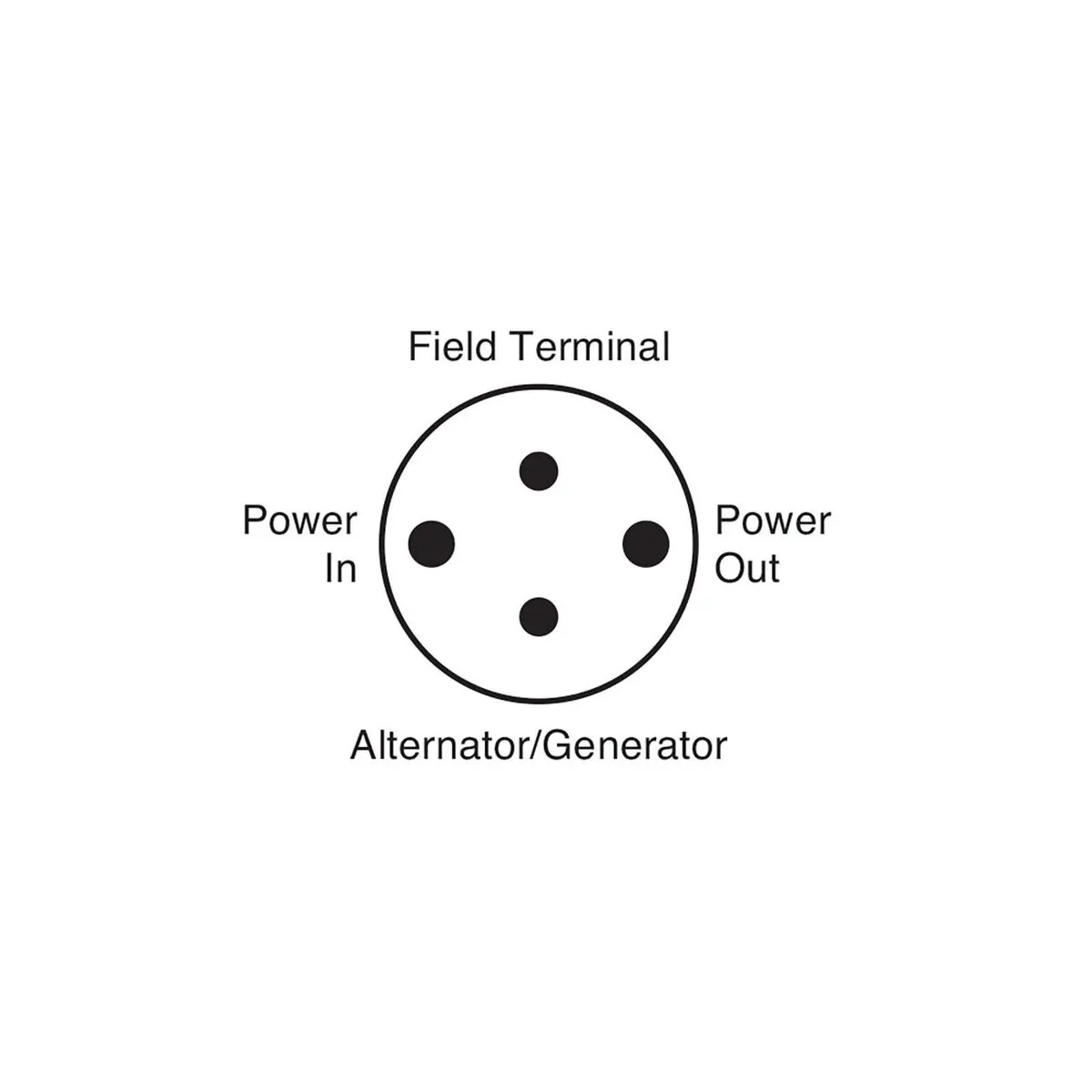

Master disconnect switch with provision for use with alternator/generator field circuit. Mounting opening 19mm dia. Large Terminals: 1000A at 12V for 20 seconds 500A at 24V for 20 seconds 180A at 12V continuous load max. 90A at 24V continuous load max. Small Terminals: 20A at 12V continuous load max. 10A at 24V continuous load max.
SPECIFICATIONS
-
Technical Information
| CURRENT DRAW | Large Terminals 1000A @ 12V for 20 secs 500A @ 24V for 20 secs 180A @ 12V continuous load max 90A @ 24V continuous load max Small Terminals 20A @ 12V continuous load max 10A @ 24V continuous load max |
|---|
-
Dimensions
Specifications
| SKU | 61070 |
|---|---|
| Barcode # | 9314464610707 |
| Brand | Narva |
| Shipping Weight | 0.3800kg |
| Shipping Width | 0.070m |
| Shipping Height | 0.070m |
| Shipping Length | 0.120m |
