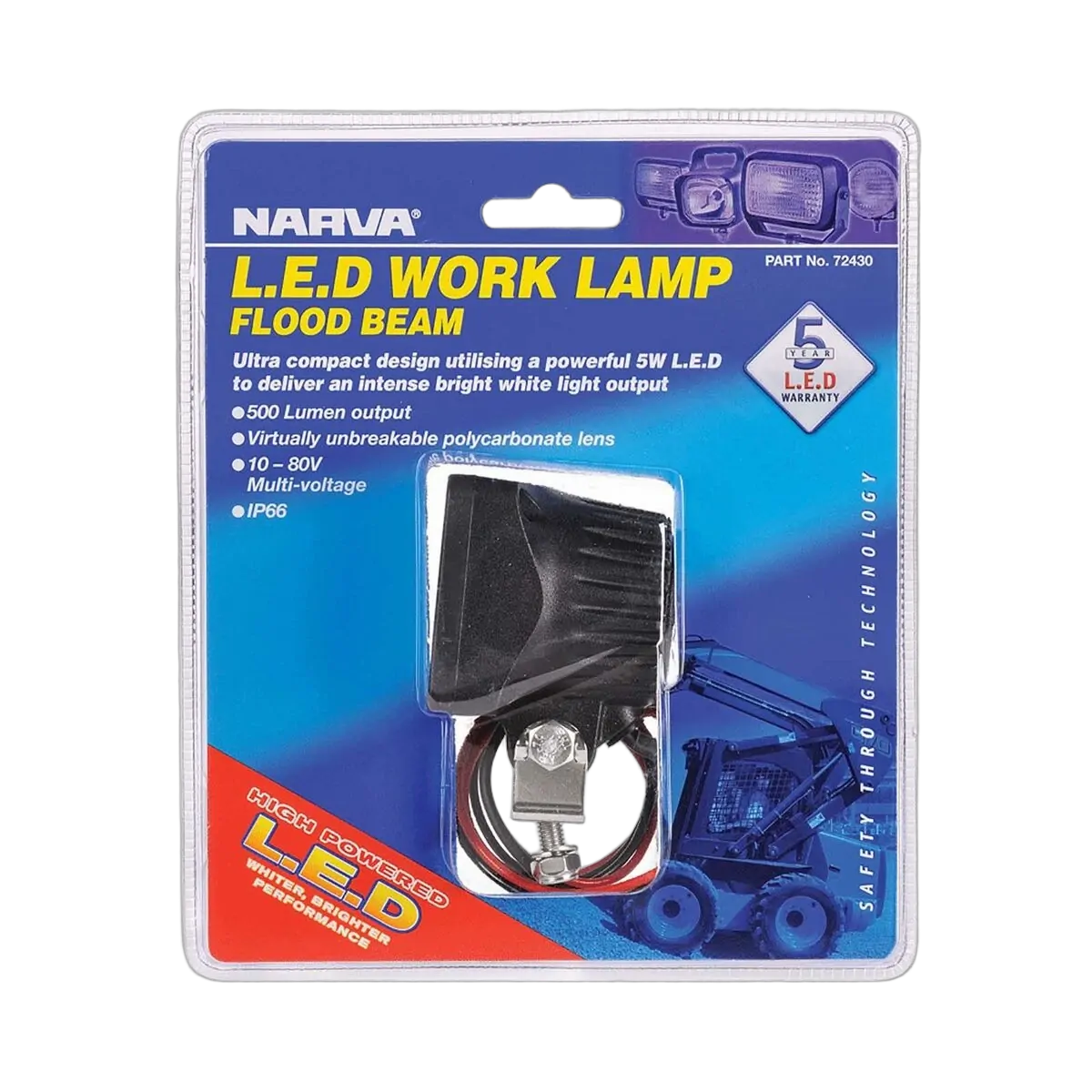

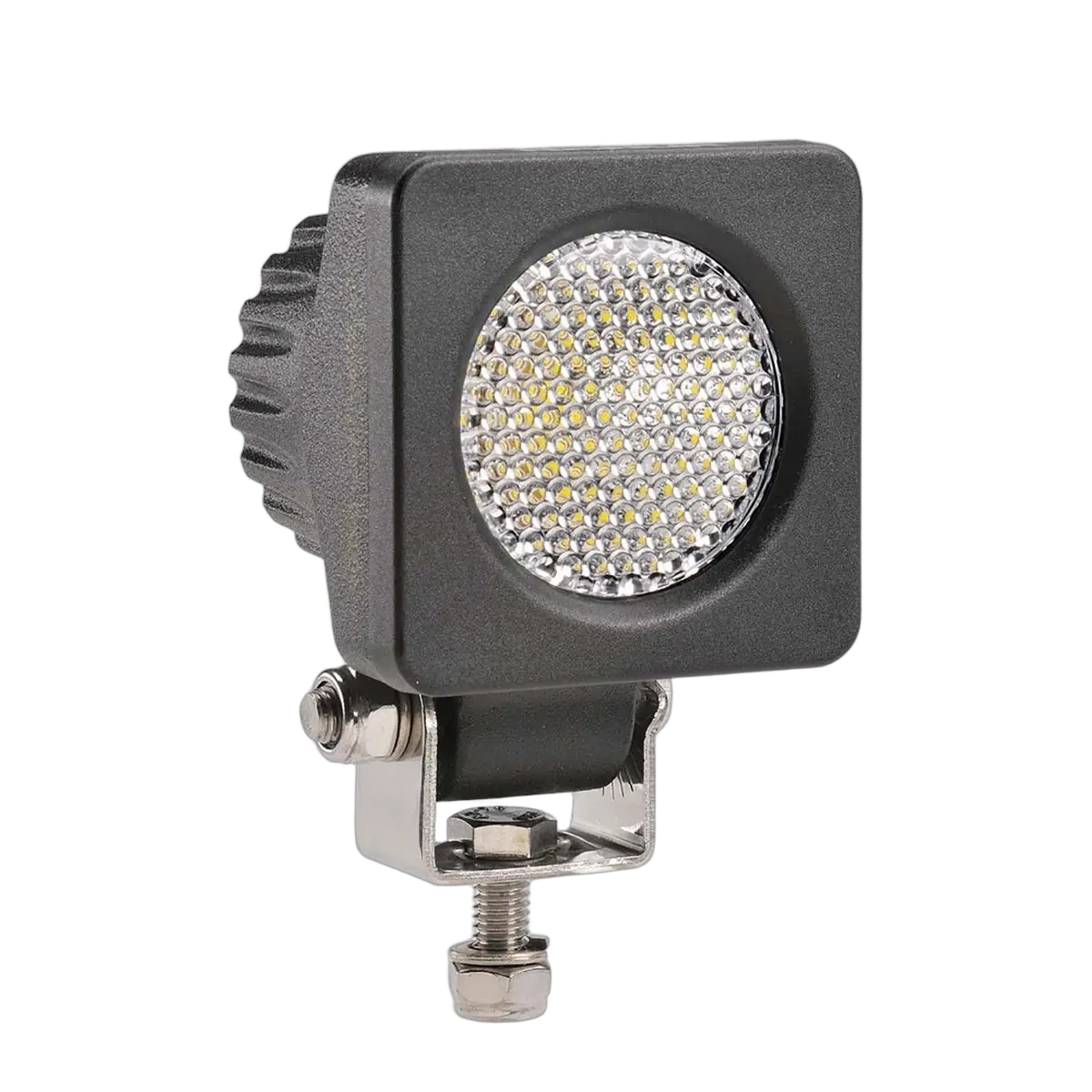

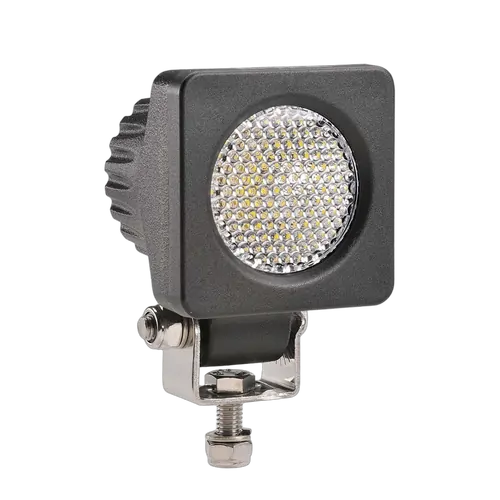

Features: Ultra compact design utilises a powerful 5W L.E.D to deliver an intense output of bright white light. Fully Sealed (IP66) with a pre-wired die-cast powder coated aluminium housing.
SPECIFICATIONS
-
Technical Information
INPUT VOLTAGE RANGE | 10-80V |
---|---|
CURRENT DRAW | 0.33A at 12V, 0.15A at 24V |
LUMENS | 500 |
SIZE | 52mm square |
COMPRISES | Virtually unbreakable polycarbonate lens; Includes stainless steel mounting hardware; |
-
Beam Pattern
-
Dimensions
SKU | 72430 |
---|---|
Barcode # | 9314464724305 |
Brand | Narva |
Shipping Weight | 0.3600kg |
Shipping Width | 0.050m |
Shipping Height | 0.166m |
Shipping Length | 0.200m |
