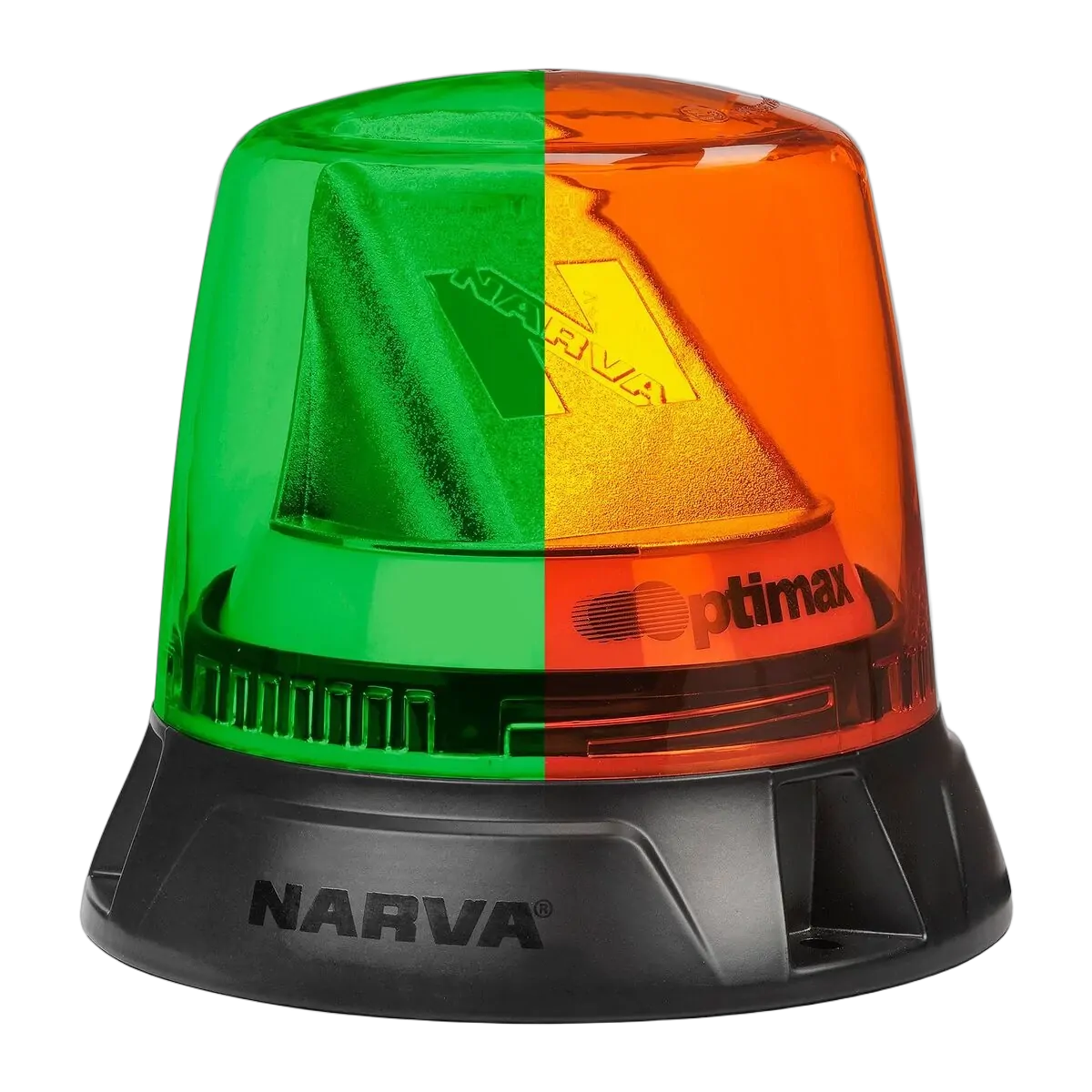

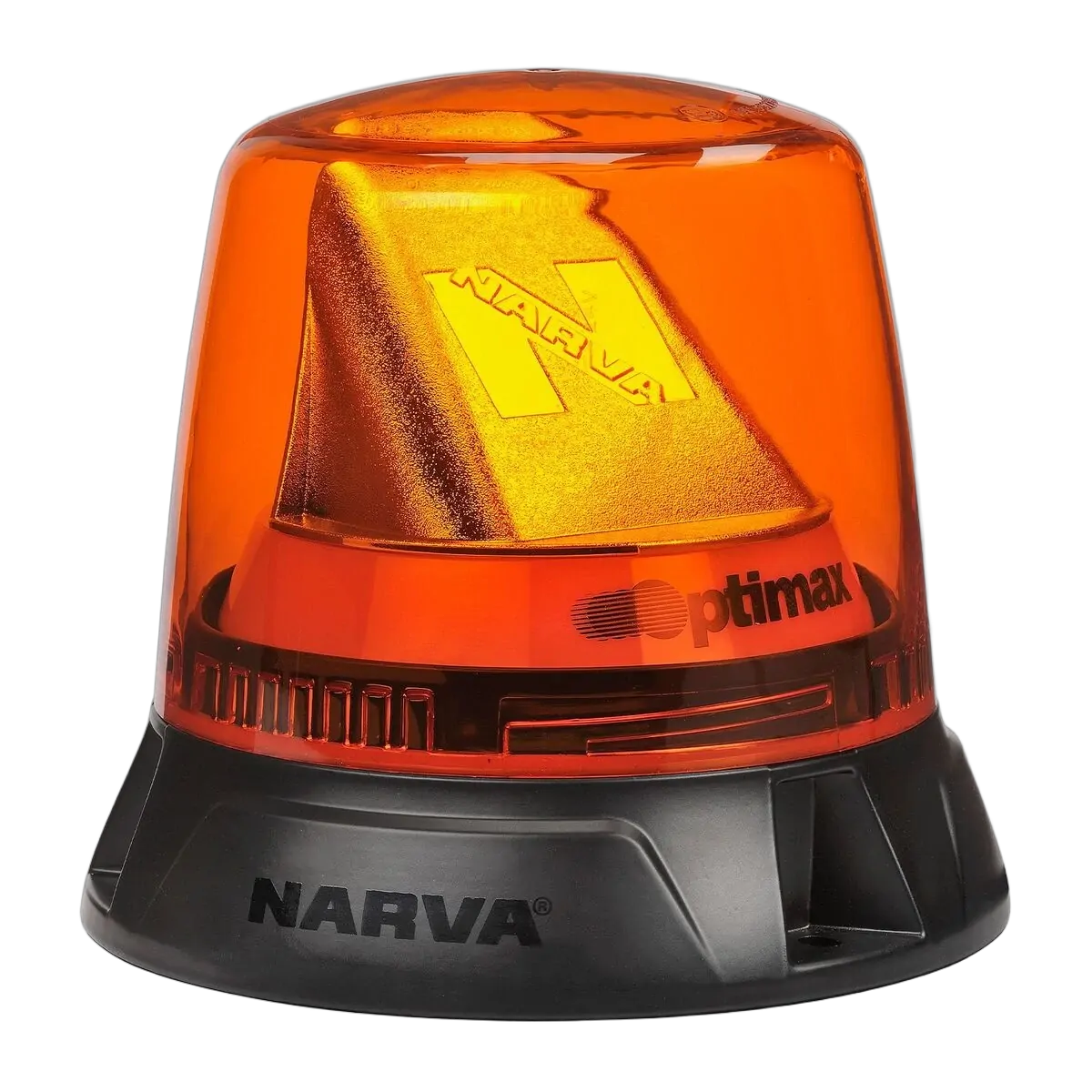

The Amber/Green Optimax LED beacon is Australia’s first dual colour LED rotating beacon. Whilst there are many brands that offer dual colour strobes, none of these provide the smooth rotating pattern of a true rotating beacon like Optimax LED. The dual amber/green output allows operators to switch between the two colours for different applications, therefore eliminating the need for two different beacons.
FEATURES
LONGER LASTING
LED technology ensures no blown globes due to continued useMORE RELIABLE
Vibration resistant stepper motor & over voltage protectionMORE DURABLE
Diecast aluminium base, virtually unbreakable lens & rated to IP67.MORE VISIBLE
6 x 5W (30W) LED OutputSPECIFICATIONS
-
Technical Information
-
Dimensions
INPUT VOLTAGE RANGE | 10-33V |
---|---|
CURRENT DRAW | 1A at 12V |
LEDs | 6 x 5 watt high power LEDs |
IP RATING | IP67 |
OPERATING TEMPERATURE | -30° to 60° |
SIZE | 139mm (height) x 154mm (diameter) |
WEIGHT | 330g |
BASE TYPE | Flange |
ECE | 10R-06.22895 (R10) |
OTHER | SAE J845 Class 1, W3-1 |
OTHER | CISPR Class 3 |
SKU | 85660AG |
---|---|
Barcode # | 9314464003332 |
Brand | Narva |
Shipping Weight | 1.0300kg |
Shipping Width | 0.160m |
Shipping Height | 0.160m |
Shipping Length | 0.160m |
