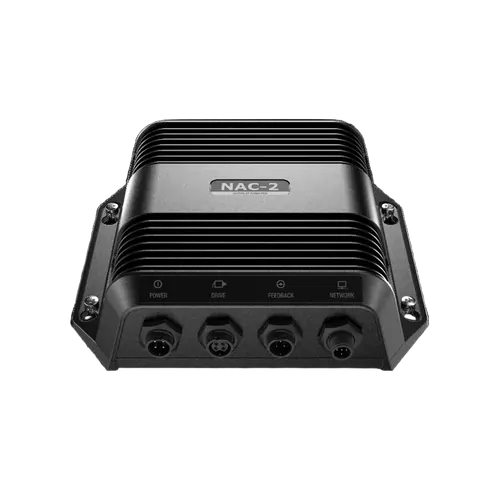

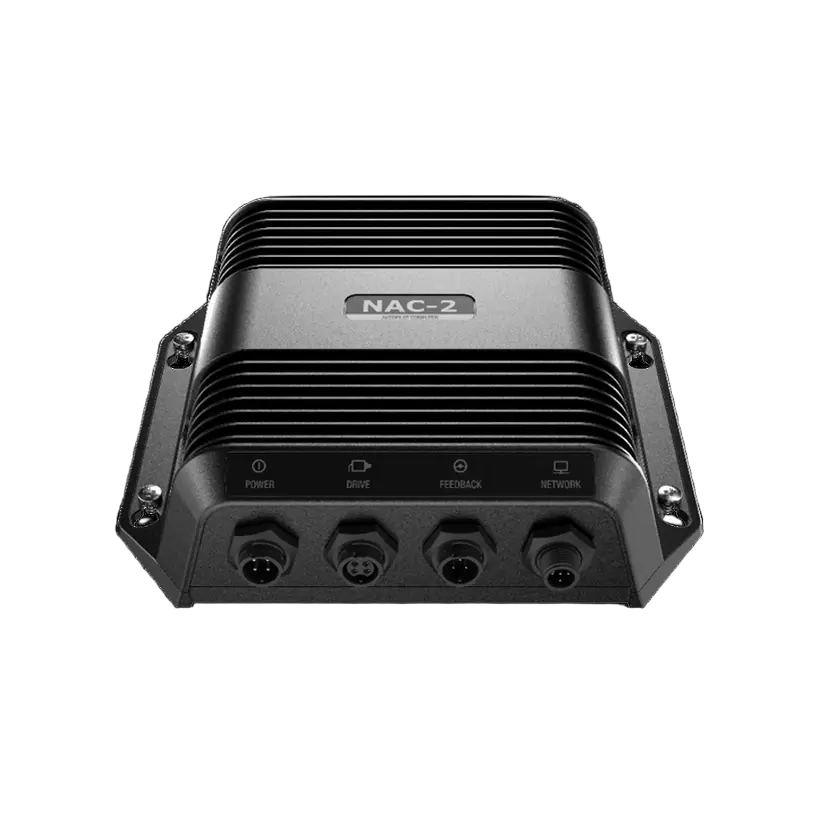

NAC-2 Autopilot Core Pack - Comes with NAC-2 Autopilot Computer, Precision-9 Compass and RF-25N Rudder Feedback unit.
The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).
*Lowrance compatibility is limited to HDS LIVE only.
Mechanical/Environmental
| Operating temperature | -25°C to +55°C (13°F to 131°F) |
| Protection | Splashproof, IPx5 |
| Weight | 0.6 kg (1.3 lbs) |
| Overall Dimensions | Width: 7.1 in \ 180 mm |
| Height: 2.2 in \ 57 mm |
Electrical
| Power supply | 9-31.2 V DC |
| Load | 140 mA + drive unit load |
| Performance | Drive: 8 A cont., 16 A for 1 s |
Interfaces
| Network | 1xMicroC (NMEA2000) |
| Feedback | Variable voltage/resistive 0-5V |
| Drive output | To PUMP-1 or HELM-1 |
| Power supply | 9-31.2 V DC |
| Solenoid | 12/24V DC, common, load range 10mA to 10A, off current <1mA |
| Clutch | 12/24V DC, min 10mA, max 3A |
| SKU | 000-13335-001 |
|---|---|
| Barcode # | OEBC672449 |
| Brand | Lowrance |
| Shipping Weight | 10.0000kg |
