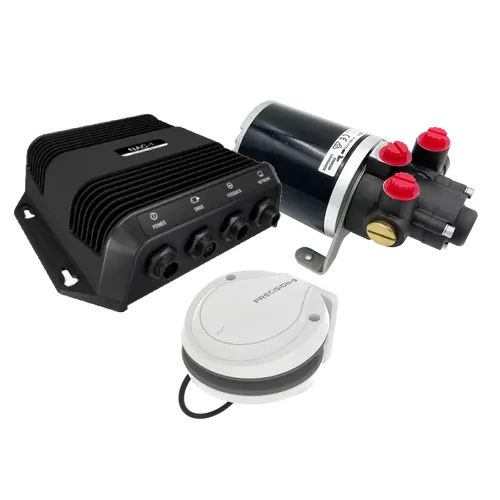

NAC-1 Precision Hydraulic Autopilot pack: Includes Precision-9 Heading Sensor, NAC-1 Autopilot Computer, PUMP-1 (MkII) Hydraulic Pump – 0.8L reversible hydraulic pump, Standby-Auto button and Micro-C network components.

Features

  • Easy to install system pack, hydraulic connectors, and hoses all included
  • Dash-mount button for one-touch Auto/Standby activation
  • Steer to Heading, Course or Route
  • Automatic Turn Patters
  • NAC-1 Plug & Socket connectors reduce the installation time
  • High efficiency, super-quiet 0.8L hydraulic gear pump

Mechanical/Environmental

Casing Per NEP -2
Water Ingress IPX5
Weight TBC
Overall Dimensions Width: 7.1 in \ 180 mm, Height: 2.2 in \ 57 mm

Electrical

Supply Voltag 12v only
Max Drive output 8A continuous, 16 Amp peak

Interfaces

Network 1xMicroC
Feedback Variable voltage from HELM -1 drive unit
Drive output To PUMP-1 or HELM-1
Power supply 12V
SKU 000-15951-001
Barcode # OEBC672448
Brand Lowrance
Shipping Weight 10.0000kg

Lowrance NAC-1 Precision Hydraulic Pilot Pack, MKII Pump-1

SKU: 000-15951-001
Sale price
$2,761.20
PayPal Checkout
4 payments of $690.30

afterpay More info.

Make 4 payments of $690.30 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $690.30

Calculate Shipping

NAC-1 Precision Hydraulic Autopilot pack: Includes Precision-9 Heading Sensor, NAC-1 Autopilot Computer, PUMP-1 (MkII) Hydraulic Pump – 0.8L reversible hydraulic pump, Standby-Auto button and Micro-C network components.

Features

  • Easy to install system pack, hydraulic connectors, and hoses all included
  • Dash-mount button for one-touch Auto/Standby activation
  • Steer to Heading, Course or Route
  • Automatic Turn Patters
  • NAC-1 Plug & Socket connectors reduce the installation time
  • High efficiency, super-quiet 0.8L hydraulic gear pump

Mechanical/Environmental

Casing Per NEP -2
Water Ingress IPX5
Weight TBC
Overall Dimensions Width: 7.1 in \ 180 mm, Height: 2.2 in \ 57 mm

Electrical

Supply Voltag 12v only
Max Drive output 8A continuous, 16 Amp peak

Interfaces

Network 1xMicroC
Feedback Variable voltage from HELM -1 drive unit
Drive output To PUMP-1 or HELM-1
Power supply 12V
SKU 000-15951-001
Barcode # OEBC672448
Brand Lowrance
Shipping Weight 10.0000kg
