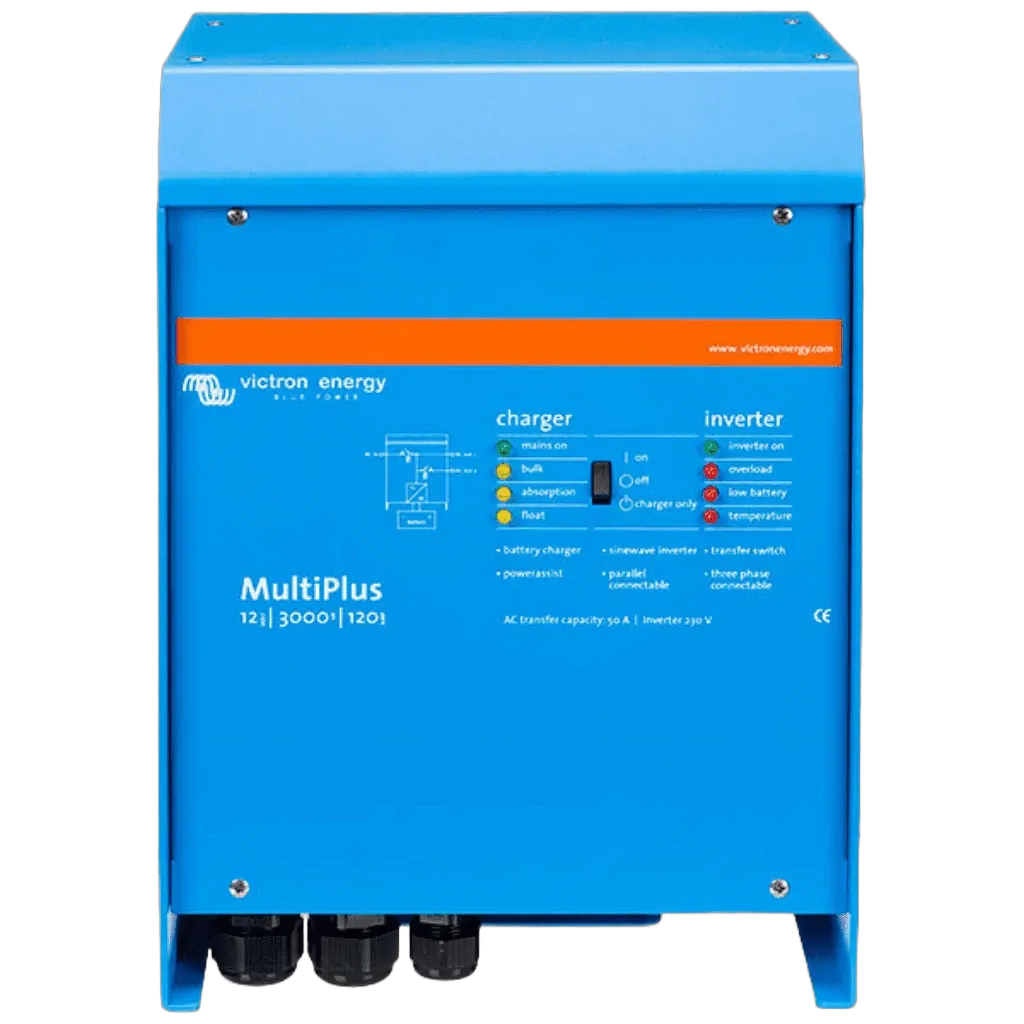

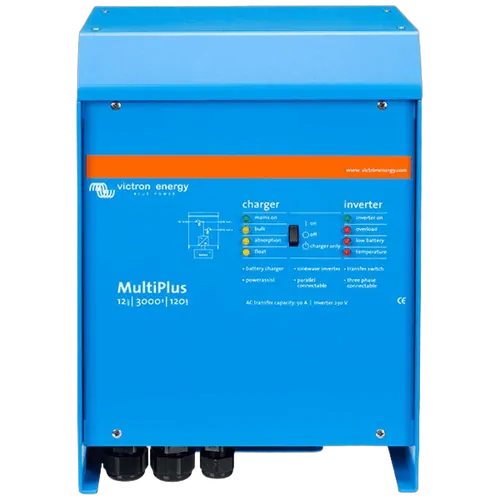

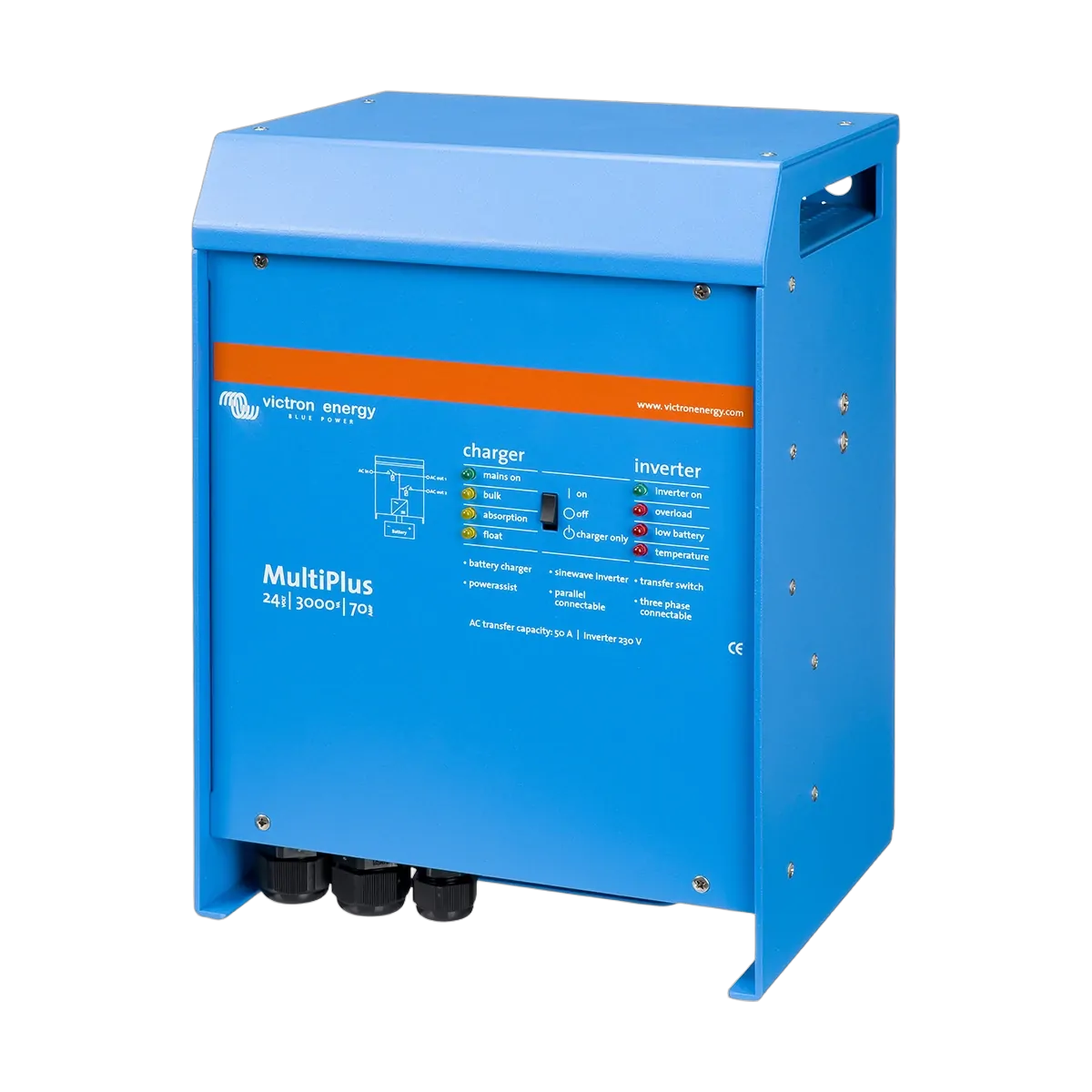

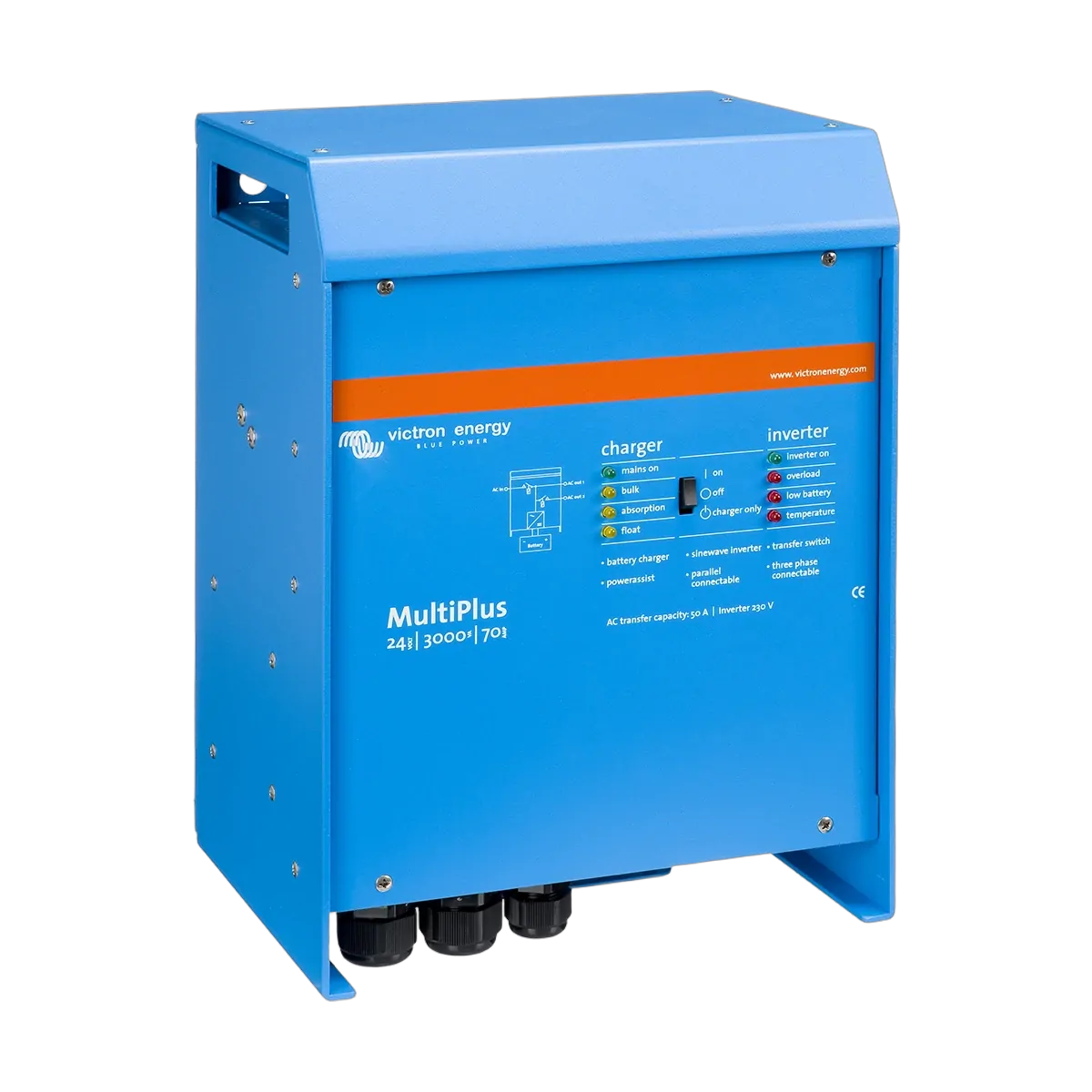

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features. The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...
Features:
Two AC Outputs- The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more).
Virtually unlimited power thanks to parallel operation- Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity.
Three phase capability- In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.
PowerControl - Dealing with limited generator, shore side or grid power- The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist - Boosting the capacity of shore or generator power- This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
Solar energy: AC power available even during a grid failure- The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.
System configuring-
-In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
-Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
-Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
On-site Monitoring and control- Several options are available: Battery Monitor, Multi Control Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote Monitoring and control- Victron Ethernet Remote, Venus GX and the Color Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
12Volt
MultiPlus 24Volt
48Volt
|
12/3000/120
24/3000/70
48/3000/35
|
PowerControl
|
Yes
|
PowerAssist
|
Yes
|
Transfer switch (A)
|
16 or 50
|
INVERTER
|
|
Input voltage range (V DC)
|
9,5 –17V 19 –33 V 38 – 66V
|
Output
|
Output voltage: 230 VAC±2% Frequency: 50 Hz ± 0,1%(1)
|
Cont. output power at 25°C (VA) (3)
|
3000
|
Cont. output power at 25°C (W)
|
2400
|
Cont. output power at 40°C (W)
|
2200
|
Cont. output power at 65°C (W)
|
1700
|
Peak power (W)
|
6000
|
Maximum efficiency (%)
|
93 / 94 / 95
|
Zero load power (W)
|
20 / 20 / 25
|
Zero load power in AES mode (W)
|
15 / 15 / 20
|
Zero load power in Search mode (W)
|
8 / 10 / 12
|
CHARGER
|
|
AC Input
|
Input voltage range:187-265VAC Input frequency: 45 –65 Hz Power factor:1
|
Charge voltage 'absorption' (V DC)
|
14,4 / 28,8 / 57,6
|
Charge voltage 'float' (V DC)
|
13,8 / 27,6 / 55,2
|
Storage mode (V DC)
|
13,2 / 26,4 / 52,8
|
Charge current house battery (A) (4)
|
120 / 70 / 35
|
Charge current starter battery (A)
|
4 (12 V and 24 V models only)
|
Battery temperature sensor
|
yes
|
GENERAL
|
|
Auxiliary output (5)
|
Yes (16A)
|
Programmable relay (6)
|
Yes
|
Protection (2)
|
a - g
|
VE.Bus communication port
|
For parallel and three phase operation, remote monitoring and system integration
|
General purpose com. port
|
Yes
|
Remote on-off
|
Yes
|
Common Characteristics
|
Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95%
|
ENCLOSURE
|
|
Common Characteristics Battery-connection
230 V AC-connection
|
Material & Colour: aluminium (blueRAL5012) Protection category: IP21
|
Four M8 bolts (2 plus and 2 minus connections)
|
|
Screw terminals 13
mm2 (6 AWG)
|
|
Weight (kg)
|
18
|
Dimensions (hxwxd in mm)
|
362x258x218
|
STANDARDS
|
|
Safety
|
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
|
Emission, Immunity
|
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
|
Road vehicles
|
12V and 24V models: ECE R10-4
|
Anti-islanding
|
See our website
|
1) Canbeadjustedto60HZ;120V60Hzonrequest
2) Protectionkey:
a) output short circuit
b) overload
c) batteryvoltagetoohigh
d) batteryvoltagetoolow
e) temperature toohigh
f)230 VAC on inverteroutput
g) input voltage ripple toohigh
|
3) Non-linear load, crest factor3:1
4) At 25˚Cambient
5) SwitchesoffwhennoexternalACsourceavailable
6) Programmablerelaythatcana.o.besetforgeneralalarm, DCundervoltageorgensetstart/stopfunction
AC rating: 230 V/4A
DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
|
SKU | PMP123021010 |
---|---|
Barcode # | 8719076023951 |
Brand | Victron |
Shipping Weight | 18.0000kg |
