MSA DS40 Drop Fridge Slide: Innovative and Convenient Access

LIGHTER. STRONGER. SAFER. SMARTER.
MSA 4X4's DS40 Fridge Drop Slide is an innovative, patented design which allows you to safely lower your fridge, providing easy, convenient access to its contents.

The Drop Slide is designed to slide smoothly out from its stowed position, before lowering 30cm in a safe and easy motion. This allows for the tray to remain in a horizontal position through the entire motion. The DS40 allows for complete access to the front and side of your fridge. It also offers a compact design which will not decrease storage space in your vehicle.

The refined, patented design of our Drop Slides features 670N - 1200N quality gas struts, providing safe, easy lifting and lowering for loads up to an incredible 200kg. Now you can fill your fridge and access it with ease!

Product features:

• Compact size won't decrease storage space in your vehicle.
• No drawer disassembly required to install the slide.
• Designed to swing smoothly out further past the vehicle tailgate, providing easy and convenient access to the contents of your fridge from its complete front and side.
• Unique lock-in lock-out safety feature.
• Heavy duty 200kg slide runner rating.
• Tie down straps & all fixings included as standard.
• Stainless steel & blue anodised handle and face plate.
• Fridge Barriers available to suit for extra fridge protection & increased storage possibilities.
• Pre-drilled holes in the tray provide convenience in accommodating most popular fridges.

Additional information

• Weight 35 kg
• Freight Dimensions 96 × 61 × 20 cm

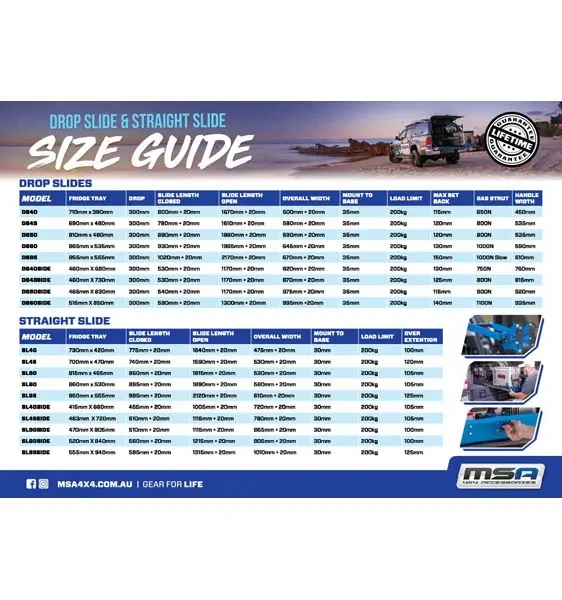

• Slide Dimensions (all measurements displayed are in mm)
• Fridge Tray - 710 x 390
• Drop - 300
• Slide Length Closed - 800 + 20
• Slide Length Open - 1670 + 20
• Overall Width - 500 + 20
• Mount to Base - 35
• Load Limit - 200kg
• Max Set Back - 115
• Gas Strut - 650N
• Handle Width - 450

The MSA DS40 is suitable for the following fridges:

ARB 35 L, ARB 47L, ENGEL 32L, ENGEL 40L, ENGEL 40L ANNIVERSARY, ENGEL ECLIPSE 38L, EVAKOOL ED40 (WHITE), EVAKOOL IB31 GREY (INDEL B), EVAKOOL IB40 GREY (INDEL B), EVAKOOL IB50 (INDEL B), EVAKOOL RV25, EVAKOOL RV35, IRONMAN 30L (INDEL B), IRONMAN 40L (INDEL B), IRONMAN 50L (INDEL B), OPPOSITE LOCK 50L (INDEL B), PRIMUS 31L (INDEL B), PRIMUS 40L (INDEL B), PRIMUS 45L (MAMMOTH), PRIMUS 50L (INDEL B), PRIMUS 60 (MAMMOTH), SNOMASTER 42L TRAVELLER (55MM INSULATION), TECHNIICE 42L, WAECO CF40, WAECO CF50, WAECO CF60

Is the MSA DS40 Fridge Drop Slide easy to install?

Yes, the MSA DS40 Fridge Drop Slide is designed for easy installation. It comes with pre-drilled holes and includes all necessary tie-down straps and fixings. However, if you are unsure, it is recommended to have it installed by a professional to ensure optimal safety and performance

Does the MSA DS40 Drop Slide fit in all vehicle types?

The DS40 Drop Slide is designed to be compact and should fit most 4WDs, utes, and other off-road vehicles without decreasing storage space. It’s ideal for use in various setups including canopies and cargo areas​.

What makes the MSA DS40 Drop Slide different from other fridge slides?

The MSA DS40 Drop Slide features a patented design with a unique lock-in lock-out safety feature. It uses high-quality gas struts for smooth operation and can handle up to 200kg. Its compact size and ability to lower the fridge by 30cm for easy access make it stand out from other fridge slides​
