Morningstar

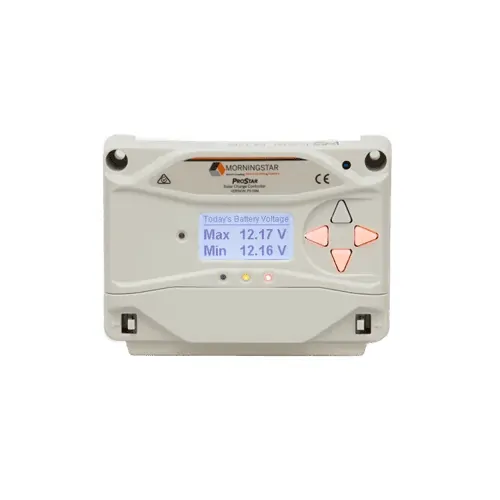

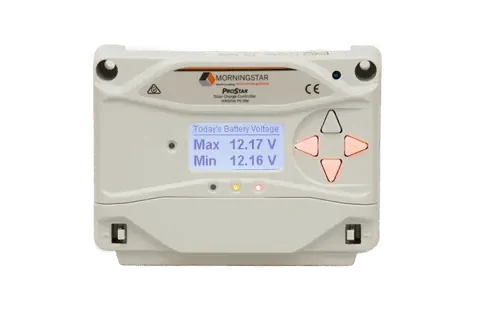

Morningstar Prostar 15Amp W/Meter

Features

  • High reliability – latest electronic and environmental protections, quality control, and design considerations comply with IEC 62109 and promote longevity in the harshest environments.
  • High Temperature Design – full nameplate current rating, both solar and load up to 60°C continuous.
  • Auto-battery-select – 12V and 24V systems.
  • Data Logging – up to 256 days of solar charge and load consumption data.
  • Low Noise Design – meets US Federal Communications Commission Class B specifications.
  • Automatic Solar Based Lighting Control – field adjustable, multi-event load control enables powerful options for solar lighting systems.
  • MODBUS Communications – open standard MODBUS communications protocol allows for control and remote data access.
  • Durable Design – high strength polycarbonate case with protective terminal cover and extruded aluminum heatsink.
  • Self Diagnostics – continuous monitoring and reporting of any errors or system faults through its status LED’s, optional display and communication port.
  • Meter – high resolution LCD, multi-lingual backlit graphical display of system voltage, current, temperature, lighting settings, etc.
  • Custom Programming – dip switches, meter interface, or connection with a computer can be used to adjust charging, load, communications, and lighting control.



Other Benefits

  • Estimated 15 year life
  • Compliance with IEC 62109
  • PWM series battery charging (not shunt)
  • 8 dip switches to adjust battery charging and other settings
  • High resolution graphical meter to adjust settings and display logged data
  • RJ-11 MeterBus port for serial MODBUS data or to add a remote meter
  • Compatible with Morningstar’s Ethernet MeterBus Converter (EMC-1)
  • Up to 256 days of data logging
  • Dusk-to-dawn and advanced programmable lighting control
  • Protective terminal cover
  • Enhanced surge rating for heavy DC loads
  • Self-diagnostics
  • Slow switching mode to eliminate system noise at telecom sites
  • Parallel for up to 300 amps
  • Temperature compensated charging
  • Tropicalization
  • No switching or measurement in the grounded leg
  • 100% solid state
  • Very low voltage drops
  • Current compensated low voltage disconnect (LVD)
  • LED’s to indicate battery status and faults
  • Capable of 25% overloads
  • Remote battery voltage sense terminals

Specifications

 SR-PS-15MSR-PS-30SR-PS-30M
Electrical
Nominal Battery Voltage12V or 24V
Battery Voltage Range10-35V
Voltage Accuracy<= 0.1% +/- 50mV
Maximum Battery Current15A or 30A
Maximum Solar Input Voltage (12V/24V bat)60Voc
Load Current Rating15A or 30A
Self-Consumption20 mA*
LED Indications(1) status, (3) Battery state of charge
Transient Surge Protection1500 Watts (solar, battery, load)
Environmental
Operating Temperature-40°C to + 60°C
Meter Operating Temperature-20°C to + 60°C
Storage Temperature-40°C to + 80°C
Humidity100% non-condensing
Tropicalizationconformal coating, marine-rated terminals
Meter
Resolution128 X 64 pixelsNo meter128 X 64 pixels
Viewing Area5.0 cm x 2.5 cm5.0 cm x 2.5 cm
Display ColorBlue on whiteBlue on white
BacklightLEDLED
Battery Charging
Battery Types7 Standard Battery Settings + Custom
4-Stage ChargingBulk, Absorption, Float, Equalize
Temperature CompensationCoefficient: -5 mV / °C / cell (25°C ref)
Range: -30°C to + 60°C
Set Points: Absorption, Float, Equalize
Mechanical
Dimensions15.3(W) x 10.5(L) x 5.5(D) cm
6.0(W) x 4.1(L) x 2.2(D) in
Weight0.4 kg / 1.0 lbs
Wire Size RangePower Terminals: 2.5 – 16 mm2 / 14 – 6 AWG
Battery/Temp. Sense: 0.25 – 1.0 mm2 / 24 – 16 AWG
EnclosureIP20, Type 1
Electronic Protections
Solar Inputoverload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current
Load Outputoverload, short-circuit, high temperature, reverse polarity
Batteryreverse polarity (no battery removal)
Load & Lighting Control
Low Voltage Disconnect, Low Voltage Reconnect Settings11.4 V / 12.6 V or Custom (x2 for 24 volt systems)
Lighting SettingsDusk to Dawn or Custom
LVD Current Compensation-20 mV per Amp @ 12 Volts / -40 mV per Amp @ 24 Volts
LVD Warning Timer10 minutes
Lighting Test Timer5 minutes
Data & Communications
Communication PortMeterBus
Communication ProtocolsMorningstar MeterBus, MODBUS
DataloggingUp to 256 days, daily records
PC SoftwareMSView
Certifications
CE; RoHS; ETL ListedUL62109/CSA.107.1; IEC 62109; FCC Part-15 class B compliant
Manufactured in a certified ISO 9001 facility
SKU SR-PS-15M
Barcode # OEBC527692
Brand Morningstar
Shipping Weight 0.4000kg

Morningstar Prostar 15Amp W/Meter

SKU: SR-PS-15M
Sale price
$399.99
SAVE $47.01
RRP $447.00
Earn 3,990 Outback Rewards Points
Sale price
$399.99
SAVE $47.01
DON'T PAY RRP $447.00
PayPal Checkout
4 payments of $100.00

afterpay More info.
