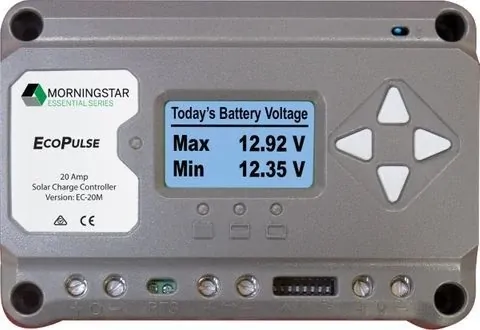

Morningstar Ecopulse Solar Controller – Metered 20A

Features

High Reliability – conformally coated circuit board and corrosion resistant terminals.
Robust Thermal Design – extruded aluminum heatsink dissipates heat quickly without using cooling fans.
Durable Casing – high strength polycarbonate case.
LED Fault Indications – alert when short circuit, over current, high voltage, and other error conditions take place.
Automatic Solar Based Lighting Control – field adjustable dusk ‘til dawn setting.
Adjustable Charge Settings – seven presets and a custom setting can be set via DIP Switches or by the meter display buttons.
Adjustable Load Control – load control can be adjusted via meter display.
Optional Meter – multi-lingual interface with scroll buttons to adjust the settings and display metrics.

	SR-EC-10M	SR-EC-20M	SR-EC-30M
Electrical
Nominal Battery Voltage	12V or 24V auto-detect
Battery Voltage Range	10-35V
Voltage Accuracy	<= 0.1% +/- 50mV
Maximum Battery Current	10A, 20A or 30A
Maximum PV open-circuit voltage	60V
Load Current Rating	10A, 20A or 30A
Self-Consumption	<15mA; <20mA (meter)
LED Indications	(1) status, (3) Battery state of charge
Transient Surge Protection	1500 Watts (solar, battery, load)
Environmental
Operating Temperature	-40°C to + 45°C
Storage Temperature	-40°C to + 80°C
Humidity	100% non-condensing
Tropicalization	conformal coating, marine-rated terminals
Mechanical
Dimensions (W x L x D)	15.3 x 10.5 x 5.5 cm 6.0 x 4.1 x 2.2 in
Weight	0.4 kg / 1.0 lbs
Wire Size Range	Power Terminals: 2.5 – 16 mm2 / 14 – 6 AWG Battery/Temp. Sense: 0.25 – 1.0 mm2 / 24 – 16 AWG
Enclosure	IP20, Type 1
Electronic Protections
Solar Input	overload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current
Load Output	overload, short-circuit, high temperature, reverse polarity
Battery	reverse polarity (no battery removal)
Battery Charging
4-Stage charging	Bulk, Absorption, Float, Equalize
Temperature Compensation Coefficient	-30mV/°C/12volt
Set-points	Absorption, Float, Equalize, HVD
Load & Lighting Control
Low Voltage Disconnect, Low Voltage Reconnect Settings	11.4 V / 12.6 V or Custom (x2 for 24 volt systems)
Lighting Settings	Dusk to Dawn
Certifications
CE, TUV Listed	IEC 62109
Meter
Resolution	128 x 64 pixels
Viewing Area	5.0 cm x 2.5 cm
Interactive	Yes

Note: Specifications subject to change without notice.

$285.99

SAVE $45.01

DON'T PAY RRP $331.00

High Reliability – conformally coated circuit board and corrosion resistant terminals.
Robust Thermal Design – extruded aluminum heatsink dissipates heat quickly without using cooling fans.
Durable Casing – high strength polycarbonate case.
LED Fault Indications – alert when short circuit, over current, high voltage, and other error conditions take place.
Automatic Solar Based Lighting Control – field adjustable dusk ‘til dawn setting.
Adjustable Charge Settings – seven presets and a custom setting can be set via DIP Switches or by the meter display buttons.
Adjustable Load Control – load control can be adjusted via meter display.
Optional Meter – multi-lingual interface with scroll buttons to adjust the settings and display metrics.

	SR-EC-10M	SR-EC-20M	SR-EC-30M
Electrical
Nominal Battery Voltage	12V or 24V auto-detect
Battery Voltage Range	10-35V
Voltage Accuracy	<= 0.1% +/- 50mV
Maximum Battery Current	10A, 20A or 30A
Maximum PV open-circuit voltage	60V
Load Current Rating	10A, 20A or 30A
Self-Consumption	<15mA; <20mA (meter)
LED Indications	(1) status, (3) Battery state of charge
Transient Surge Protection	1500 Watts (solar, battery, load)
Environmental
Operating Temperature	-40°C to + 45°C
Storage Temperature	-40°C to + 80°C
Humidity	100% non-condensing
Tropicalization	conformal coating, marine-rated terminals
Mechanical
Dimensions (W x L x D)	15.3 x 10.5 x 5.5 cm 6.0 x 4.1 x 2.2 in
Weight	0.4 kg / 1.0 lbs
Wire Size Range	Power Terminals: 2.5 – 16 mm2 / 14 – 6 AWG Battery/Temp. Sense: 0.25 – 1.0 mm2 / 24 – 16 AWG
Enclosure	IP20, Type 1
Electronic Protections
Solar Input	overload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current
Load Output	overload, short-circuit, high temperature, reverse polarity
Battery	reverse polarity (no battery removal)
Battery Charging
4-Stage charging	Bulk, Absorption, Float, Equalize
Temperature Compensation Coefficient	-30mV/°C/12volt
Set-points	Absorption, Float, Equalize, HVD
Load & Lighting Control
Low Voltage Disconnect, Low Voltage Reconnect Settings	11.4 V / 12.6 V or Custom (x2 for 24 volt systems)
Lighting Settings	Dusk to Dawn
Certifications
CE, TUV Listed	IEC 62109
Meter
Resolution	128 x 64 pixels
Viewing Area	5.0 cm x 2.5 cm
Interactive	Yes
