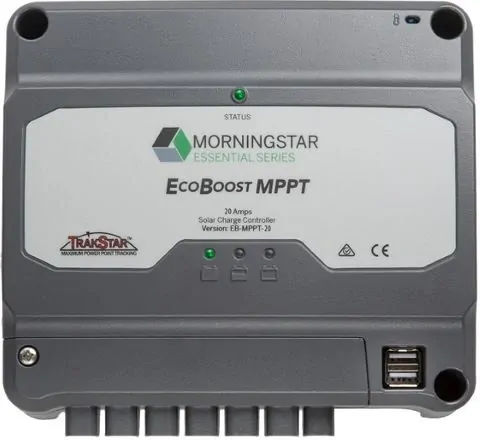

Morningstar Ecoboost Mppt Solar Controller 20A

Features

The NEW EcoBoost MPPT™ is a Maximum Power Point Tracking (MPPT) solar charge controller within Morningstar’s Essential Series™.  This controller was developed for residential and leisure consumer applications where an MPPT controller is desired to provide additional power and accommodations for modules that are not supported by other types of controllers.  Metered and non-metered versions of this product are available at 20, 30, and 40 amp charge ratings for 12 and 24 volt battery systems.

  • Two USB-A ports for charging multiple mobile phones/tablets
  •  3 Amps of USB charging capacity
  • Metered and non-metered versions
  • Four stage battery charging
  • Dusk ‘til dawn lighting control
  • Load control
  • Electronic and environmental protections
  • Wide operating temperature range

Specifications



 SR-EB-MPPT-20 SR-EB-MPPT-30SR-EB-MPPT-40
Electrical
Nominal Battery Voltage12V or 24V auto-detect
Battery Voltage Range10-35V
Voltage Accuracy<= 0.1% +/- 50mV
Maximum Battery Current10A, 20A or 30A
Maximum PV open-circuit voltage120V
Load Current Rating10A, 20A or 30A
Self-Consumption<1.2 Watts
LED Indications(1) status, (3) Battery state of charge
Transient Surge Protection1500 Watts (solar, battery, load)
Environmental
Operating Temperature-40°C to + 60°C
Storage Temperature-40°C to + 80°C
Humidity100% non-condensing
Tropicalizationconformal coating, marine-rated terminals
Mechanical
Dimensions (W x L x D)196 x 173 x 71 cm
Weight1.4 kg
Wire Size RangePower Terminals: 2.5 – 16 mm2 / 14 – 6 AWG
Battery/Temp. Sense: 0.25 – 1.0 mm2 / 24 – 16 AWG
EnclosureIP20, Type 1
Electronic Protections
Solar Inputoverload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current
Load Outputoverload, short-circuit, high temperature, reverse polarity
Batteryreverse polarity (no battery removal)
Battery Charging
4-Stage chargingBulk, Absorption, Float, Equalize
Temperature Compensation Coefficient-30mV/°C/12volt
Set-pointsAbsorption, Float, Equalize, HVD
Load & Lighting Control
Low Voltage Disconnect, Low Voltage Reconnect Settings11.4 V / 12.6 V or Custom (x2 for 24 volt systems)
Lighting SettingsDusk to Dawn
Certifications
CE, TUV ListedIEC 62109
Note: Specifications subject to change without notice.
SKU SR-EB-MPPT-20
Barcode # OEBC527674
Brand Morningstar
Shipping Weight 1.4000kg

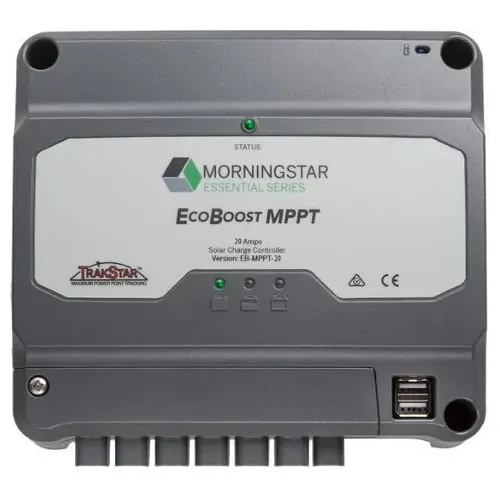

Morningstar Ecoboost Mppt Solar Controller 20A

SKU: SR-EB-MPPT-20
Sold out
Sale price
$325.99
SAVE $57.01
RRP $383.00
Earn 3,250 Outback Rewards Points
Notify me
Sale price
$325.99
SAVE $57.01
DON'T PAY RRP $383.00
Notify me
PayPal Checkout
4 payments of $81.50

afterpay More info.

Make 4 payments of $81.50 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $81.50

Calculate Shipping

Features

The NEW EcoBoost MPPT™ is a Maximum Power Point Tracking (MPPT) solar charge controller within Morningstar’s Essential Series™.  This controller was developed for residential and leisure consumer applications where an MPPT controller is desired to provide additional power and accommodations for modules that are not supported by other types of controllers.  Metered and non-metered versions of this product are available at 20, 30, and 40 amp charge ratings for 12 and 24 volt battery systems.

  • Two USB-A ports for charging multiple mobile phones/tablets
  •  3 Amps of USB charging capacity
  • Metered and non-metered versions
  • Four stage battery charging
  • Dusk ‘til dawn lighting control
  • Load control
  • Electronic and environmental protections
  • Wide operating temperature range

Specifications



 SR-EB-MPPT-20 SR-EB-MPPT-30SR-EB-MPPT-40
Electrical
Nominal Battery Voltage12V or 24V auto-detect
Battery Voltage Range10-35V
Voltage Accuracy<= 0.1% +/- 50mV
Maximum Battery Current10A, 20A or 30A
Maximum PV open-circuit voltage120V
Load Current Rating10A, 20A or 30A
Self-Consumption<1.2 Watts
LED Indications(1) status, (3) Battery state of charge
Transient Surge Protection1500 Watts (solar, battery, load)
Environmental
Operating Temperature-40°C to + 60°C
Storage Temperature-40°C to + 80°C
Humidity100% non-condensing
Tropicalizationconformal coating, marine-rated terminals
Mechanical
Dimensions (W x L x D)196 x 173 x 71 cm
Weight1.4 kg
Wire Size RangePower Terminals: 2.5 – 16 mm2 / 14 – 6 AWG
Battery/Temp. Sense: 0.25 – 1.0 mm2 / 24 – 16 AWG
EnclosureIP20, Type 1
Electronic Protections
Solar Inputoverload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current
Load Outputoverload, short-circuit, high temperature, reverse polarity
Batteryreverse polarity (no battery removal)
Battery Charging
4-Stage chargingBulk, Absorption, Float, Equalize
Temperature Compensation Coefficient-30mV/°C/12volt
Set-pointsAbsorption, Float, Equalize, HVD
Load & Lighting Control
Low Voltage Disconnect, Low Voltage Reconnect Settings11.4 V / 12.6 V or Custom (x2 for 24 volt systems)
Lighting SettingsDusk to Dawn
Certifications
CE, TUV ListedIEC 62109
Note: Specifications subject to change without notice.
SKU SR-EB-MPPT-20
Barcode # OEBC527674
Brand Morningstar
Shipping Weight 1.4000kg
