Specifications


Communication & monitoring
Communication interfaces	MasterBus, CZone, NMEA 2000

General specifications
Nominal output voltage	24 V
Secondary output voltage	14.25 /28.5 V (12/24 V)
Max. output current primary output	80 A
Max. output current secondary output	5-15 A at 12 V / 5-20 A at 24 V (adjustable)
Total charge current	80 A at 28.8 V
Max. AC current (230 V / 120 V)	11.75 A / 23 A
Number of battery outlets	2 (max.)
Battery bank size	280-700 Ah
Nominal input voltage	120/230 V (80-275 V) 50/60 Hz
AC connection	screw terminals, suitable up to up to 6 mm²
Power supply mode	yes
Galvanic isolation	yes
Display/read-out	LED
Dimensions, hxwxd	384 x 250 x 127 mm 15.1 x 9.8 x 5.0 inch
Weight	6.3 kg 13.9 lb
Compliance	CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RRR

Technical specifications
Charge characteristic	IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
Temperature compensation	-60 mV/°C / -76 mV/°F; incl. temperature sensor
DC voltage compensation	through automatic compensation or MasterShunt
Power consumption (DC side)	< 2 mA (MasterBus off)
Current Control function	yes, through MasterBus or CZone
Power factor control	yes, > 0,98
Temperature range (ambient temp.)	-25 °C to 80 °C, derating > 40 °C -13 °F to 176 °F
Cooling	vario fan
Protection degree	IP23, vertical mounting
Protections	over-temperature, overload, short circuit, high/low battery voltage, ignition protection
Charger Status Interface (alarm contact)	yes, using a Multipurpose Contact Output (code 77030500)

$2,665.00

SAVE $164.00

DON'T PAY RRP $2,829.00

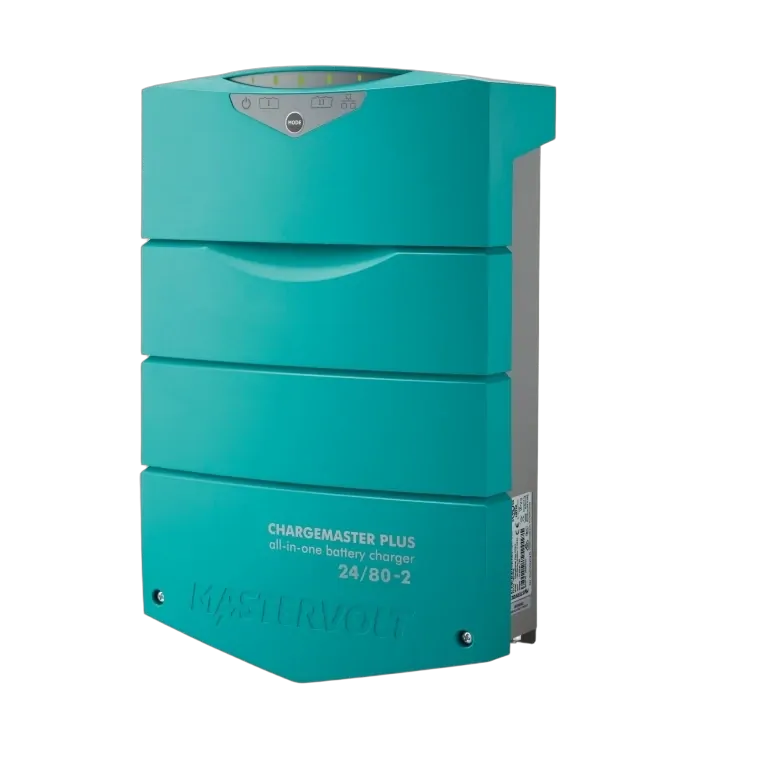

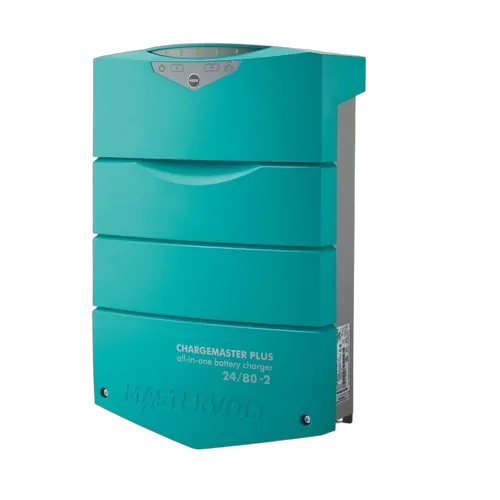

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device.


Communication & monitoring
Communication interfaces	MasterBus, CZone, NMEA 2000

General specifications
Nominal output voltage	24 V
Secondary output voltage	14.25 /28.5 V (12/24 V)
Max. output current primary output	80 A
Max. output current secondary output	5-15 A at 12 V / 5-20 A at 24 V (adjustable)
Total charge current	80 A at 28.8 V
Max. AC current (230 V / 120 V)	11.75 A / 23 A
Number of battery outlets	2 (max.)
Battery bank size	280-700 Ah
Nominal input voltage	120/230 V (80-275 V) 50/60 Hz
AC connection	screw terminals, suitable up to up to 6 mm²
Power supply mode	yes
Galvanic isolation	yes
Display/read-out	LED
Dimensions, hxwxd	384 x 250 x 127 mm 15.1 x 9.8 x 5.0 inch
Weight	6.3 kg 13.9 lb
Compliance	CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RRR

Technical specifications
Charge characteristic	IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
Temperature compensation	-60 mV/°C / -76 mV/°F; incl. temperature sensor
DC voltage compensation	through automatic compensation or MasterShunt
Power consumption (DC side)	< 2 mA (MasterBus off)
Current Control function	yes, through MasterBus or CZone
Power factor control	yes, > 0,98
Temperature range (ambient temp.)	-25 °C to 80 °C, derating > 40 °C -13 °F to 176 °F
Cooling	vario fan
Protection degree	IP23, vertical mounting
Protections	over-temperature, overload, short circuit, high/low battery voltage, ignition protection
Charger Status Interface (alarm contact)	yes, using a Multipurpose Contact Output (code 77030500)
