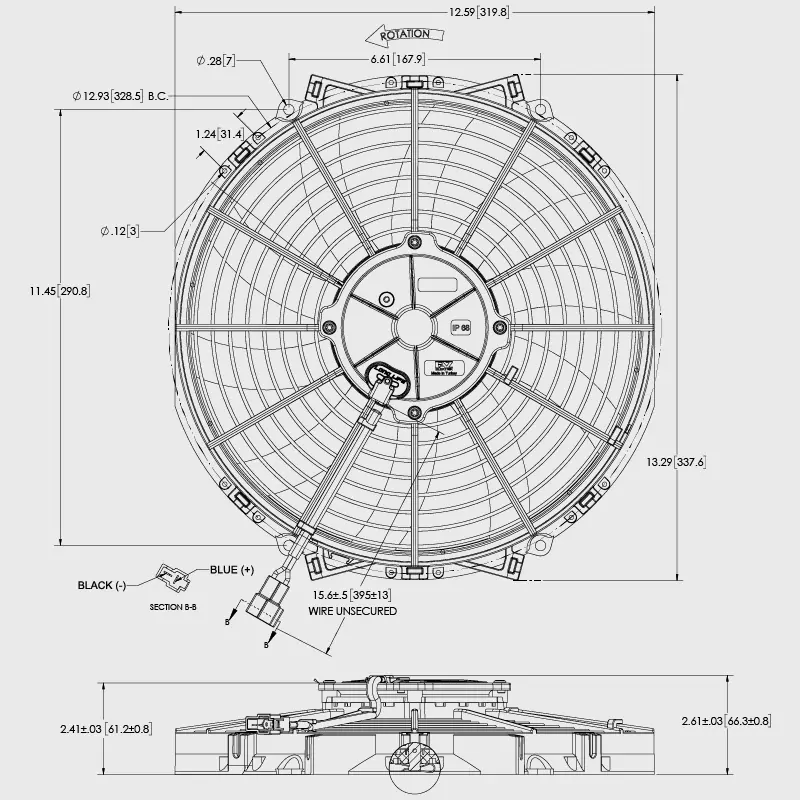

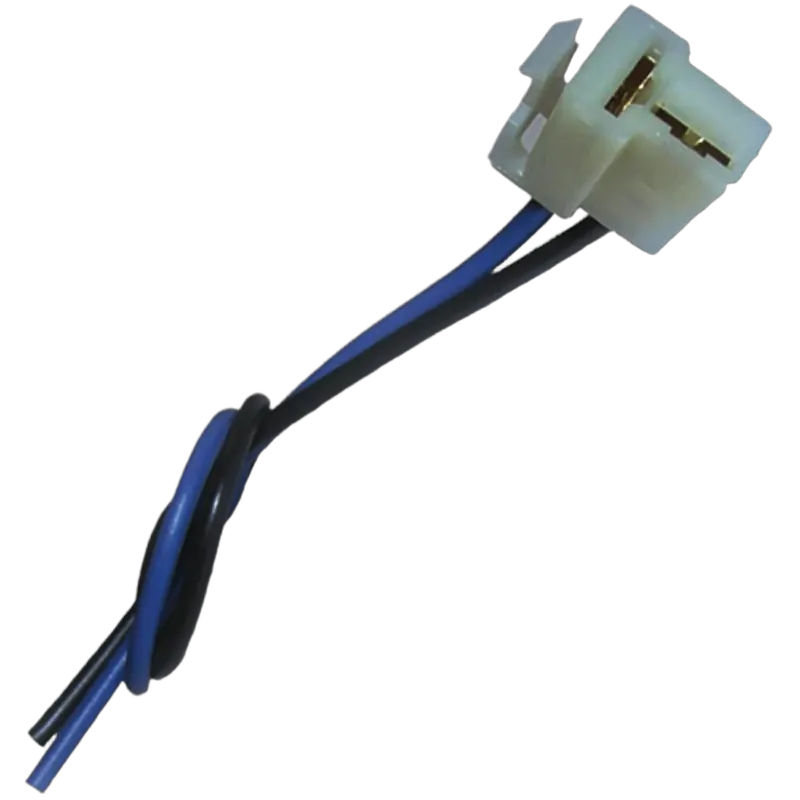

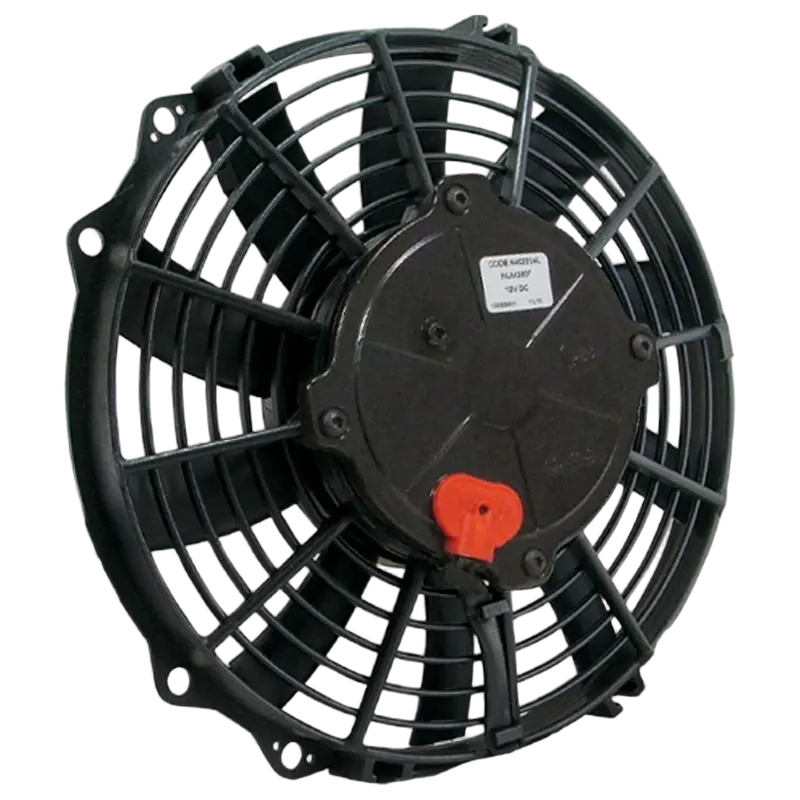

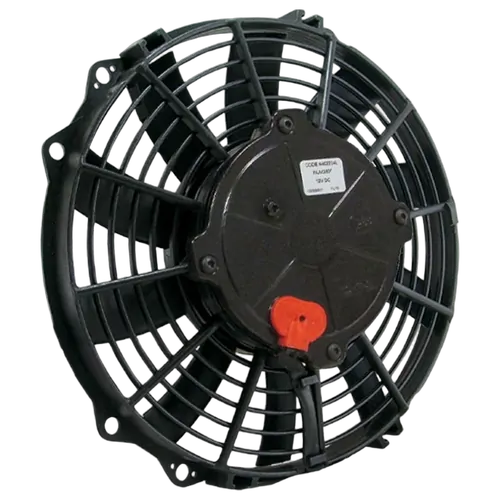

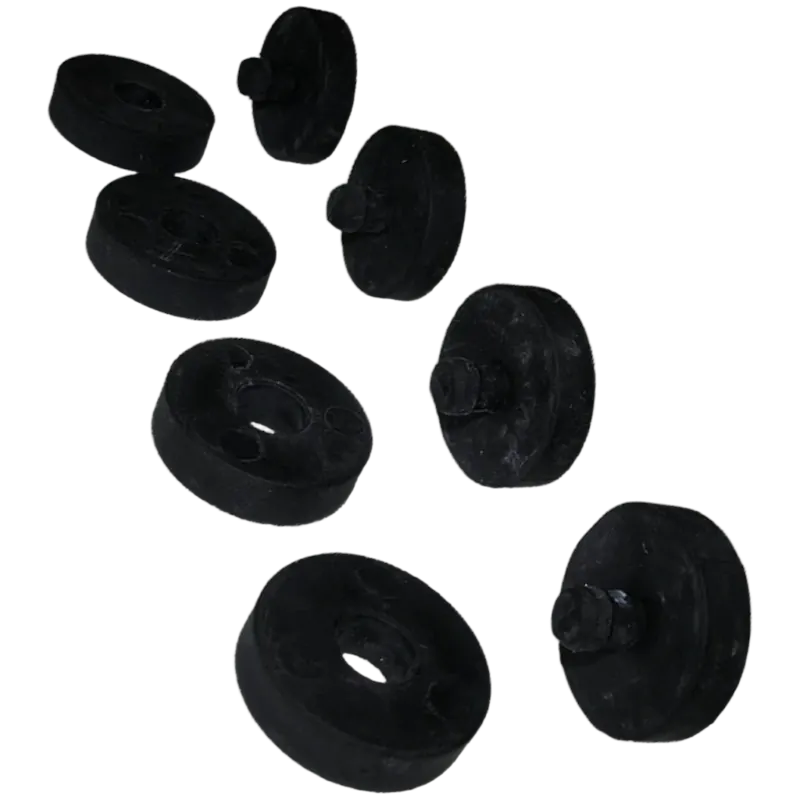

9 in., low profile, reversible “S” blade fan with 130 watt motor. Lowest profile high performance reversibles on the market Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68 Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller) All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
SPECIFICATIONS | M093K |
---|---|
MOTOR | 130w |
CURRENT DRAW | 7.7 |
CFM @ 0 in. STATIC | 790 |
DEPTH | 2.48 in. |
SKU | A11-1000 |
---|---|
Barcode # | OEBC527047 |
Brand | MARADYNE |
Shipping Weight | 2.3000kg |
Shipping Width | 0.090m |
Shipping Height | 0.260m |
Shipping Length | 0.260m |
