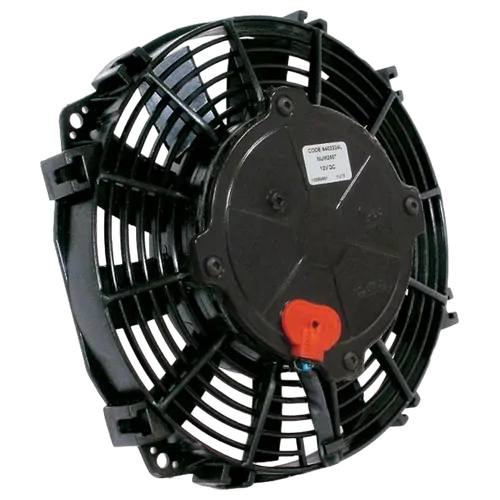

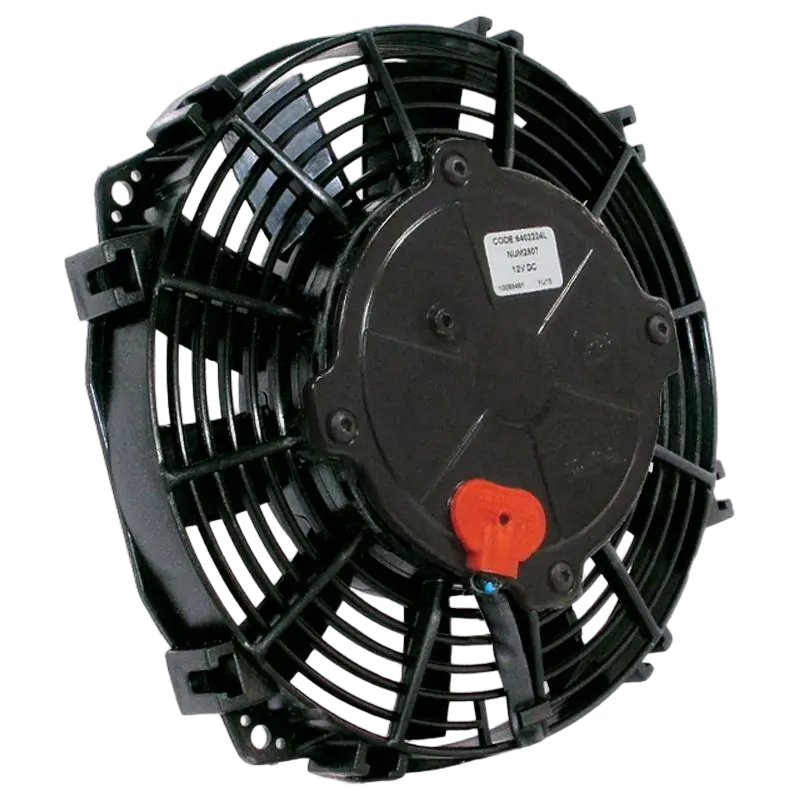

8 in., low profile, reversible “S” blade fan with 130 watt motor.
- Lowest profile high performance reversibles on the market
- Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
- Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller)
- All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
- Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
SPECIFICATIONS | M083K |
---|---|
MOTOR | 130w |
CURRENT DRAW | 8.1 |
CFM @ 0 in. STATIC | 450 |
DEPTH | 2.48 in. |
SKU | A11-1033 |
---|---|
Barcode # | OEBC527046 |
Brand | MARADYNE |
Shipping Weight | 2.1000kg |
Shipping Width | 0.090m |
Shipping Height | 0.250m |
Shipping Length | 0.250m |
