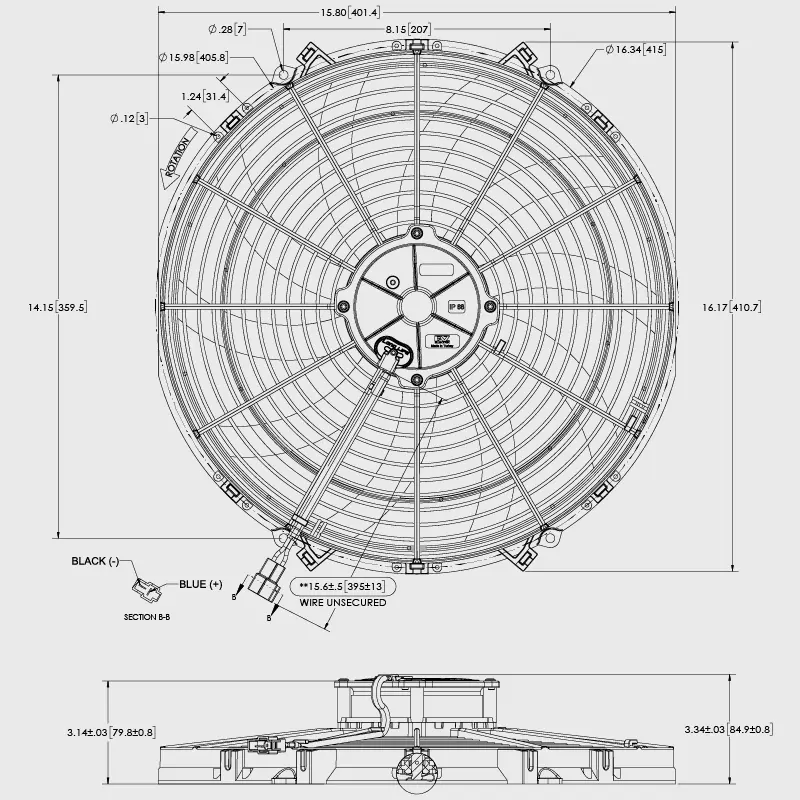

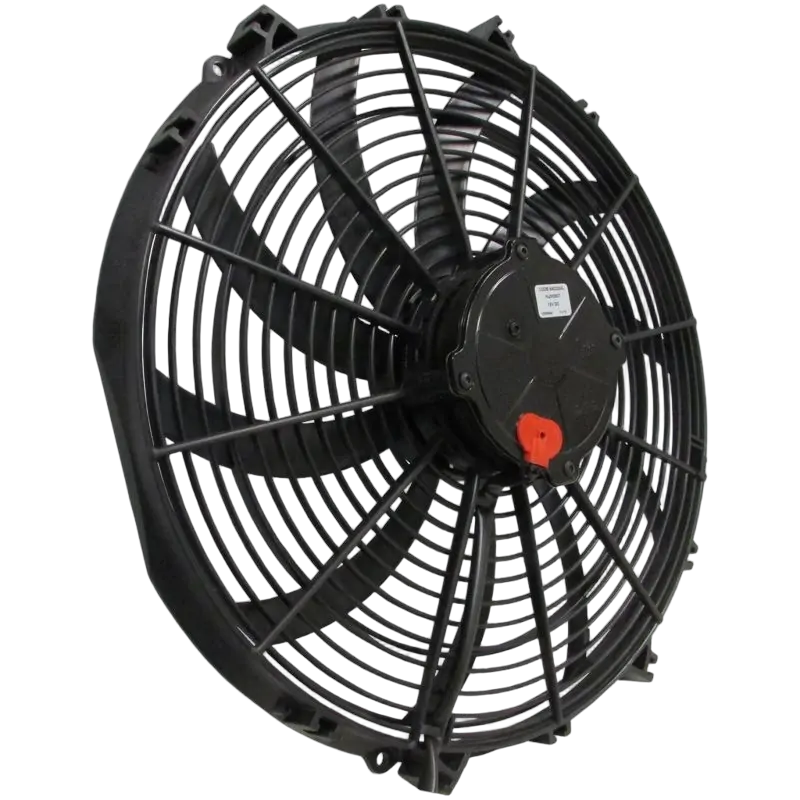

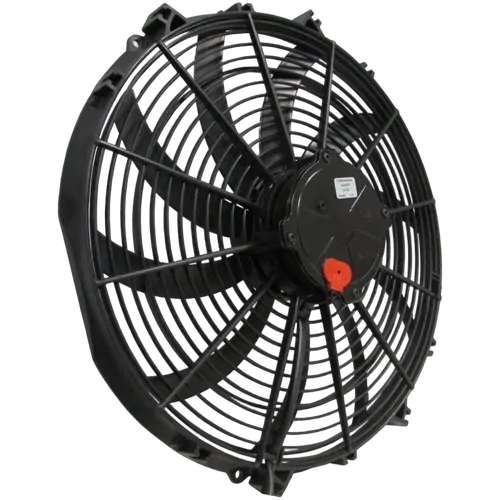

M162K
16 in., low profile, reversible “S” blade fan with 225 watt motor.
- Lowest profile high performance reversibles on the market
- Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
- Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller)
- All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit

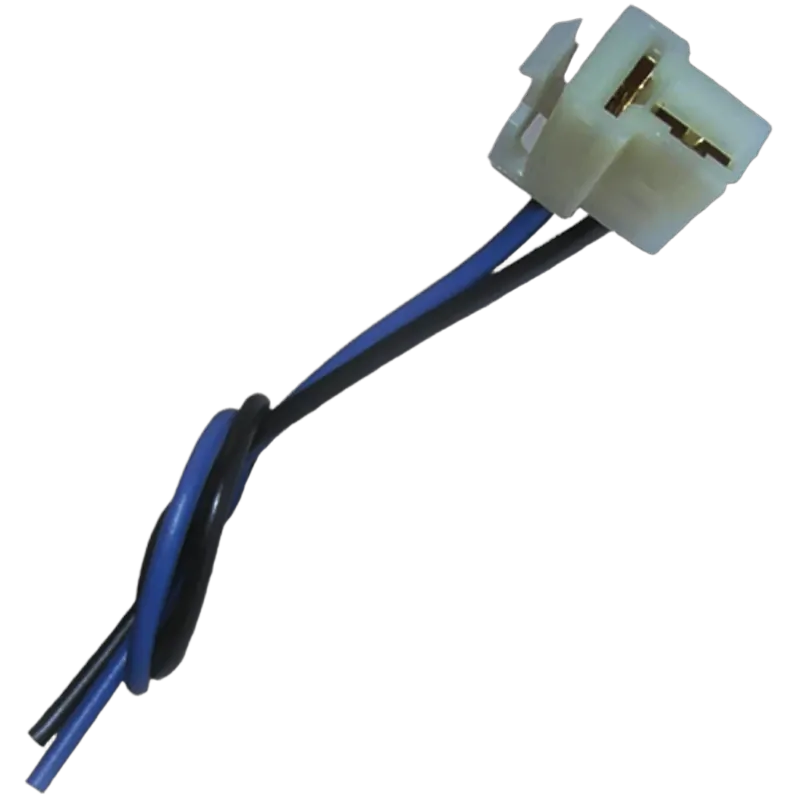

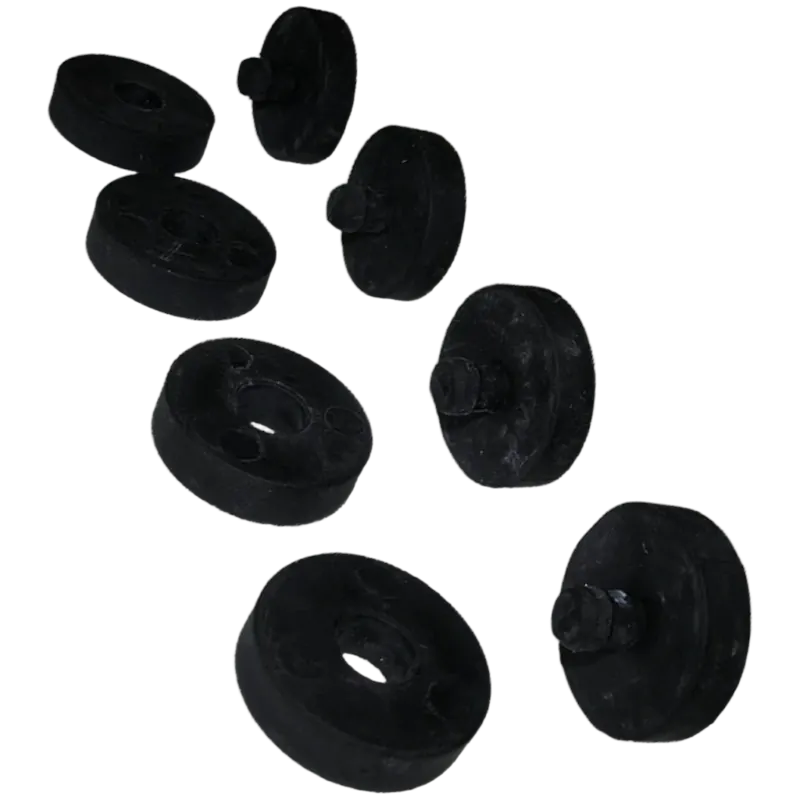

- Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger

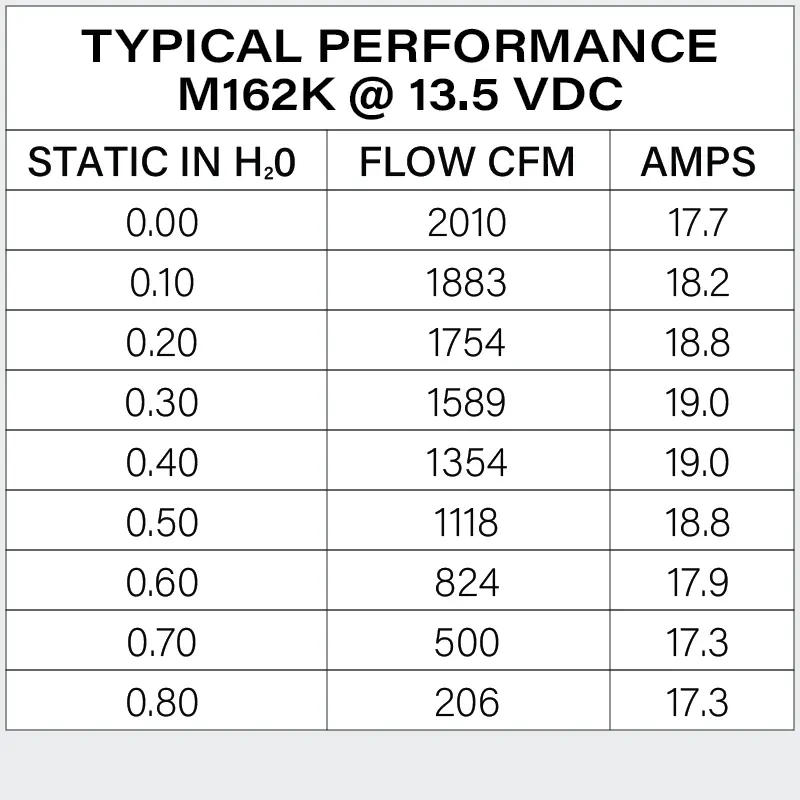

SPECIFICATIONS | M162K |
---|---|
MOTOR | 225w |
CURRENT DRAW | 18.0 |
CFM @ 0 in. STATIC | 2,170 |
DEPTH | 3.19 in. |
SKU | A11-1012 |
---|---|
Barcode # | OEBC527065 |
Brand | MARADYNE |
Shipping Weight | 5.0000kg |
Shipping Width | 0.090m |
Shipping Height | 0.420m |
Shipping Length | 0.420m |
