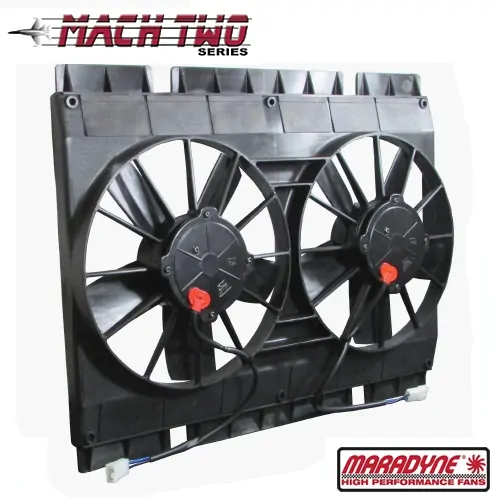

The MM22KT (EF8972) 12v / 12" Maradyne Mach 2 Series Twin Puller Fans feature a Straight Blade design which can pull up to a combined total of 2760 cfm / 4689m3/h.
The EF8972 Twin 12" Puller Fan featuresDual 225 High-Performance Drip-Through motors and convenient top and bottom Mounting Flanges. Factory-backed with a 12-month manufacturers .
| MM22KT - DUAL 11" THERMO FAN DETAILS |
| Fan Model # |
MM22KT |
| Fan Series |
Mach 2 Series |
| Voltage |
12V |
| Motor |
2 x 225w LL Heavy Duty |
| Flow Type |
Puller |
| Blade Diam. |
12 inch (305mm) |
| Blade Type |
Straight |
| Shroud Type |
Open Shroud |
| Amps |
22.0 |
| CFM |
2760 |
| M3/H |
4689 |
|
|

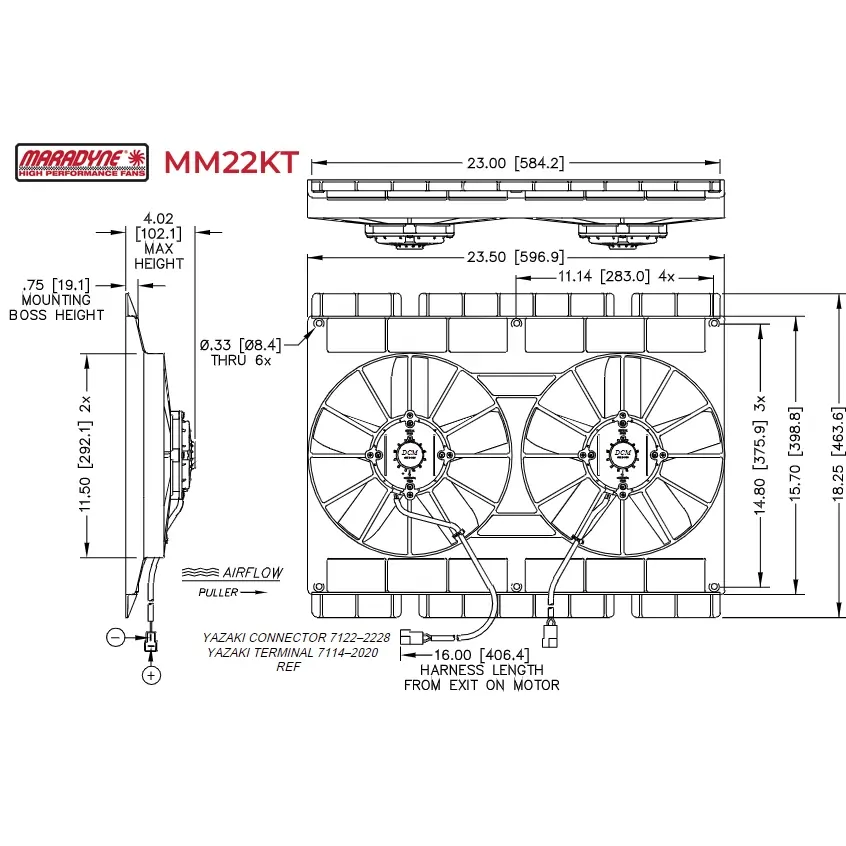

| MM22KT - DUAL 11"THERMO FAN DIMENSIONS |
| A |
597mm / 23.5" |
| B |
398.8mm / 15.7" |
| C |
283mm / 11.14" |
| D |
376mm / 14.8" |
| E |
102mm / 4.02" |
| F |
584.2mm / 23.0" |
 |
| MORE INFORMATION |
|
|
- Two (2) x 225 Watt Heavy Duty Motors;
|
- Sealed motors tested in accordance with DIN EN 60529, dust and waterproof to IP68
|
- Powerful, Wide Straight Blade Design (puller only);
|
- All glass-filled nylon construction
|
- Includes locking mating pigtail connector and rubber spacers for proper spacing of heat exchanger
|
|
|
|
|
|
|
