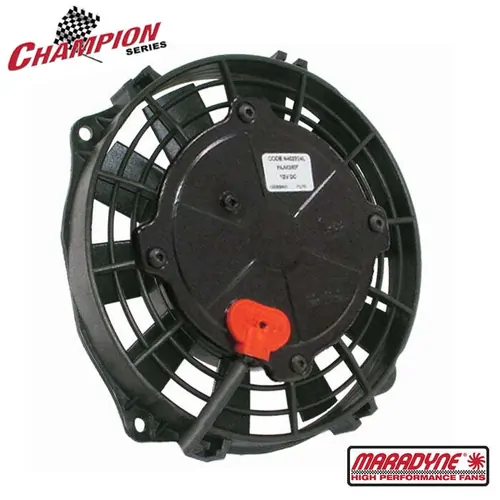

The M073K(EF8901) 12v 7" Maradyne Champion Series Fan features a reversible blade design whichis ratedup to 375cfm / 637m3/h in the standard puller configuration.
The Maradyne Champion SeriesEF8901 7" (178mm) Thermo Fan features a fully-sealed 130W motor and is backed with a 36-month manufacturers (see below).
| M073K 7" 130W THERMO FAN DETAILS |
| Fan Model # |
M073K |
| Fan Series |
Champion Series |
| Voltage |
12V |
| Motor |
LL 130W Heavy Duty |
| Flow Type |
Puller or Pusher (ships as puller) |
| Blade Diam. |
7 inch (178mm) |
| Blade Type |
S-Blade |
| Shroud Type |
Finger Guard |
| Amps |
6.5 |
| CFM |
375 |
| M3/H |
637 |
| Spec. Sheet |
View Specifications  |
|
|
| Mounting |
View Mounting Instructions |
| Included in Box |
- Thermo Fan
- Wiring Pigtail
- 4 x Mounting Feet
- 1 x Nylon Tie Kit
|

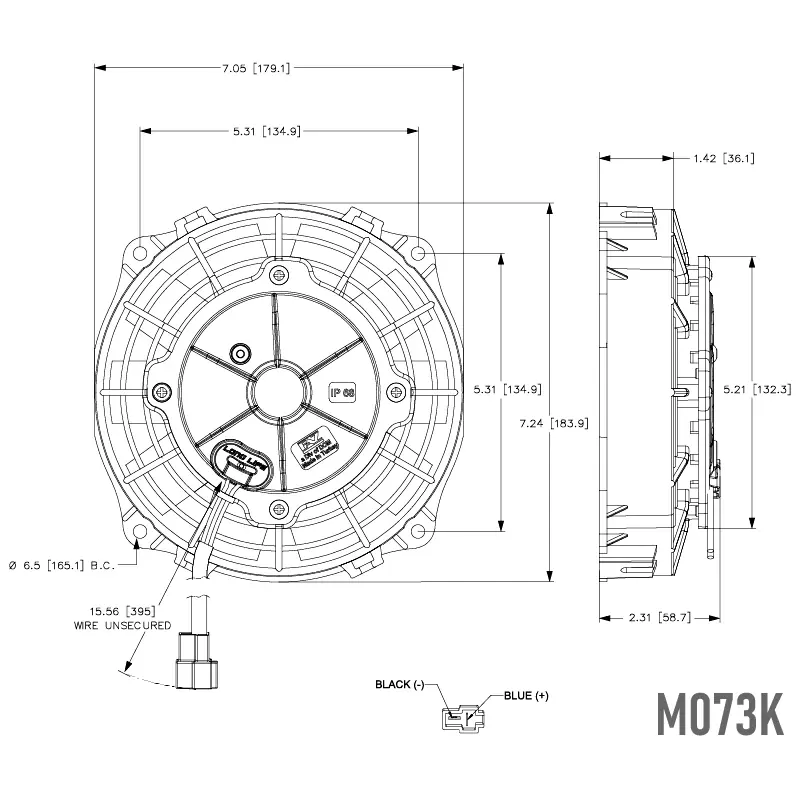

| M073K 7" 130W THERMO FAN DIMENSIONS |
| A |
179mm / 7.05" |
| B |
184mm / 7.25" |
| C |
135mm / 5.32" |
| D |
135mm / 5.32" |
| E |
58.7mm / 2.31" |
 |
| MORE INFORMATION |
|
|
|
|
- Lowest profile high performance reversible thermo fans on the market
|
- Sealed motor tested in accordance with DIN EN 60529, dust and waterproof to IP68
|
- Quiet, S-blade design works as a puller or pusher fan (ships as a puller)
|
- All glass-filled nylon construction
|
- Includes (4) 90° mounting feet and nylon tie kit
|
- Includes locking mating pigtail connector and rubber spacers for proper spacing of heat exchanger
|
|
|
|
|
|
|
