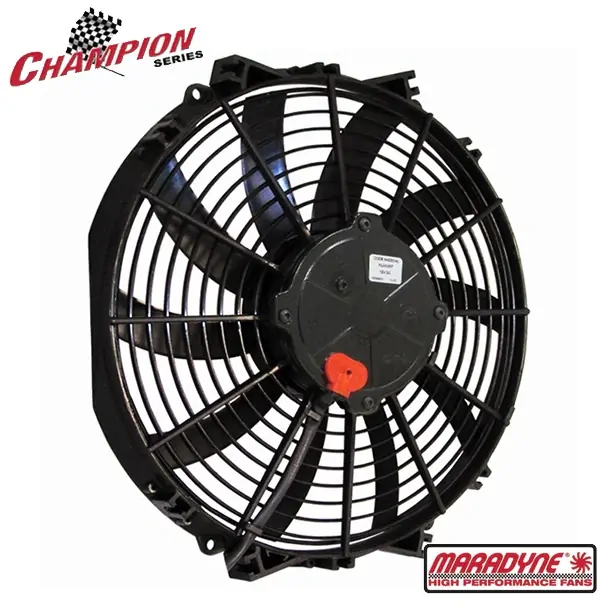

The M146K(EF8914) 12v 14" Maradyne Champion Series Fan features a reversible blade design whichis ratedup to 1555cfm / 2642m3/h in the standard puller configuration.
The Maradyne Champion SeriesEF891414" Thermo Fan features a fully-sealed 160W motor (IP68) of superior quality and is backed with a 36-month manufacturers (see below).
| M146K 12V 14" 160w THERMO FAN DETAILS |
| Fan Model # |
M146K |
| Fan Series |
Champion Series |
| Voltage |
12V |
| Motor |
LL 160W Heavy Duty |
| Flow Type |
Puller or Pusher (ships as puller) |
| Blade Diam. |
14 inch (355mm) |
| Blade Type |
Skew |
| Shroud Type |
Finger Guard |
| Amps |
7.5 |
| CFM |
1555 |
| M3/H |
2642 |
| Spec. Sheet |
View Specifications  |
|
|
| Mounting |
View Mounting Instructions |
| Included in Box |
- Thermo Fan
- Wiring Pigtail
- 4 x Mounting Feet
|

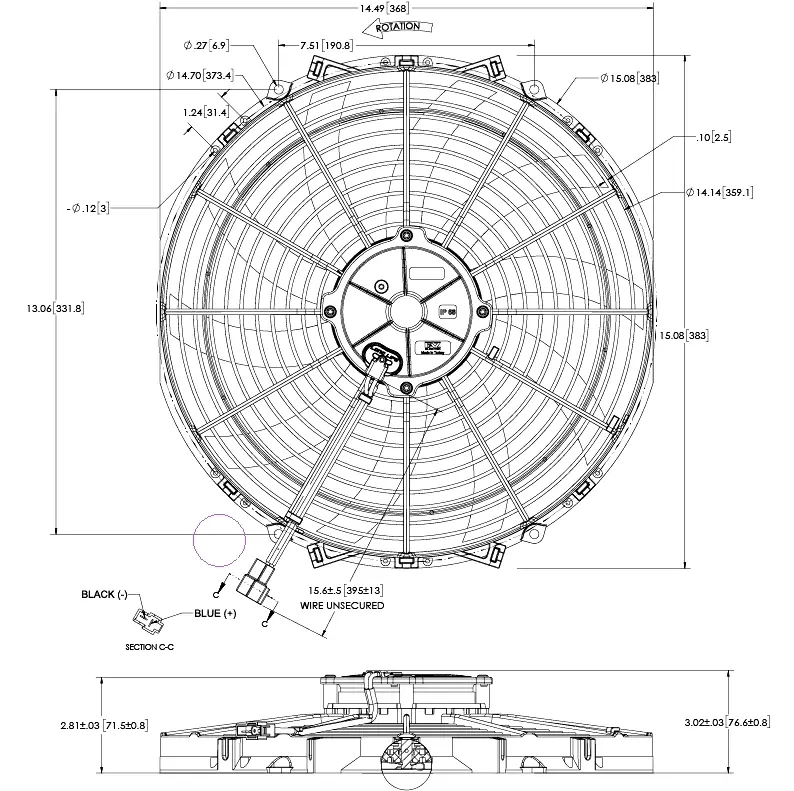

| M146K 12V 14" 160w THERMO FAN DIMENSIONS |
| A |
368mm / 14.49" |
| B |
331.8mm / 13.06" |
| C |
190.8mm / 7.51" |
| D |
383mm / 15.08" |
| E |
76.6mm / 3.02" |
 |
| MORE INFORMATION |
|
|
|
|
- Lowest profile high performance reversible thermo fans on the market
|
- Sealed motor tested in accordance with DIN EN 60529, dust and waterproof to IP68
|
- Quiet, S-blade design works as a puller or pusher fan (ships as a puller)
|
- All glass-filled nylon construction
|
- Includes (4) 90° mounting feet, locking mating pigtail connector and rubber spacers
|
|
|
|
|
|
|
