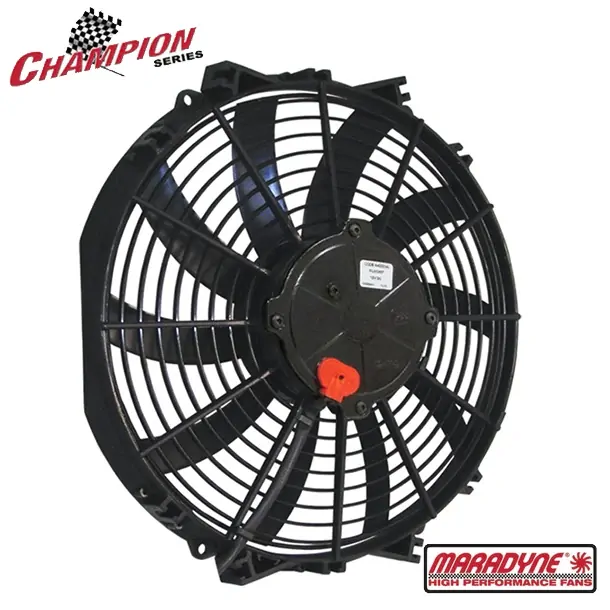

The M122K-24(EF8913) 24v 12" Maradyne Champion Series Fan features a reversible blade design whichis ratedup to 1595cfm / 2710m3/h in the standard puller configuration.
The Maradyne Champion SeriesEF891312" Thermo Fan features a fully-sealed 225W high power motor (IP68) and is backed with a 36-month manufacturers (see below).
| M122K-24 12" 24V 225w THERMO FAN DETAILS |
| Fan Model # |
M122K-24 |
| Fan Series |
Champion Series |
| Voltage |
24V |
| Motor |
LL 225W Heavy Duty |
| Flow Type |
Puller or Pusher (ships as puller) |
| Blade Diam. |
12 inch (305mm) |
| Blade Type |
Skew |
| Shroud Type |
Finger Guard |
| Amps |
18.3 |
| CFM |
1595 |
| M3/H |
2710 |
| Spec. Sheet |
View Specifications  |
|
|
| Mounting |
View Mounting Instructions |
| Included in Box |
- Thermo Fan
- Wiring Pigtail
- 4 x Mounting Feet
|
| M122K-24 12" THERMO FAN DIMENSIONS |
| A |
319.8mm / 12.59" |
| B |
298mm / 11.45" |
| C |
167.9mm / 6.61" |
| D |
337.6mm / 13.29" |
| E |
85.3mm / 3.36" |
 |
| MORE INFORMATION |
|
|
|
|
- Lowest profile high performance reversible thermo fans on the market
|
- Sealed motor tested in accordance with DIN EN 60529, dust and waterproof to IP68
|
- Quiet, S-blade design works as a puller or pusher fan (ships as a puller)
|
- All glass-filled nylon construction
|
- Includes (4) 90° mounting feet, locking mating pigtail connector and rubber spacers
|
|
|
|
|
|
|
