The M122K(EF8912) 12V, 12" Maradyne Champion Series Fan features a reversible blade design whichis ratedup to 1595cfm / 2710m3/h in the standard puller configuration.

The Maradyne Champion SeriesEF891212" Thermo Fan features a fully-sealed 225W high power motor (IP68) and is backed with a 36-month manufacturers (see below).

M122K 12" THERMO FAN DETAILS

Fan Model #

M122K

Fan Series

Champion Series

Voltage

12V

Motor

LL 225W Heavy Duty

Flow Type

Puller or Pusher (ships as puller)

Blade Diam.

12 inch (305mm)

Blade Type

Skew

Shroud Type

Finger Guard

Amps

18.3

CFM

1595

M3/H

2710

Spec. Sheet

View Specifications





Mounting

View Mounting Instructions

Included in Box

  • Thermo Fan

  • Wiring Pigtail

  • 4 x Mounting Feet

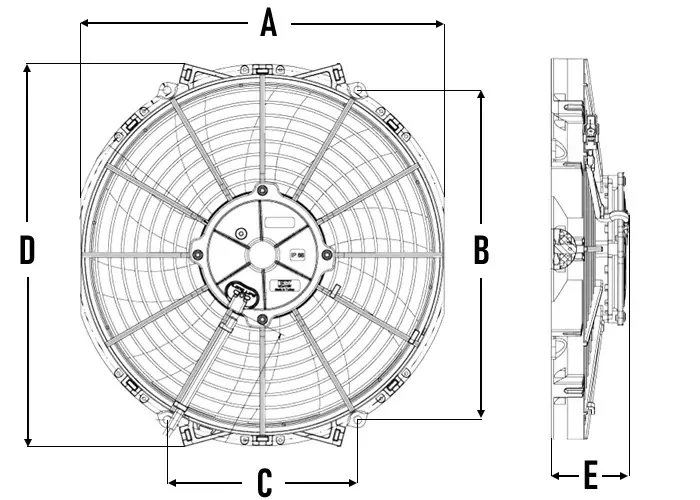

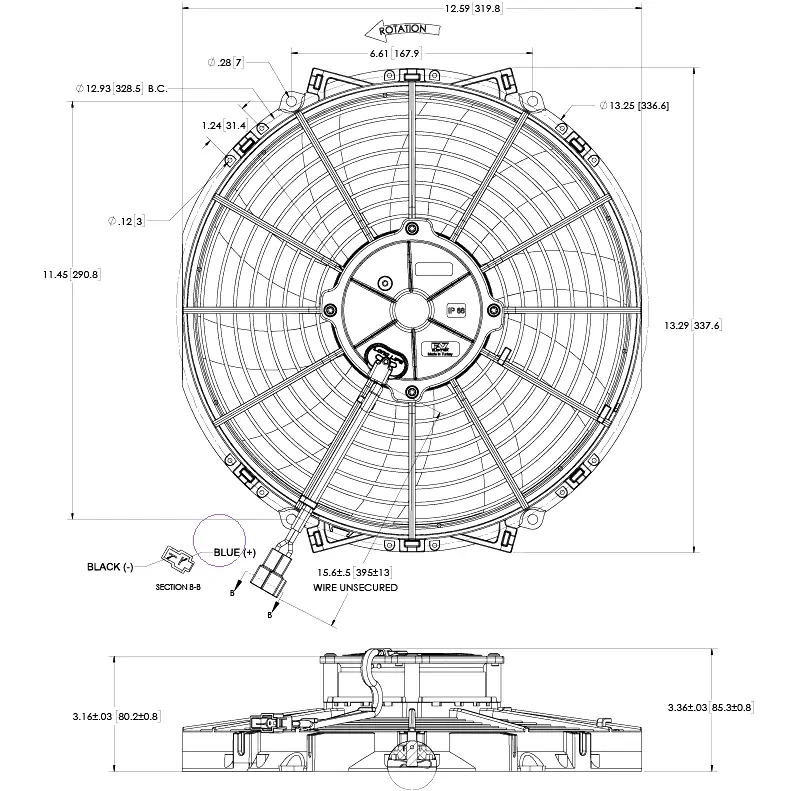

M122K 12" THERMO FAN DIMENSIONS

A

319.8mm / 12.59"

B

298mm / 11.45"

C

167.9mm / 6.61"

D

337.6mm / 13.29"

E

85.3mm / 3.36"




SKU EF8912
Barcode # 9316042411812
Brand MARADYNE
Shipping Weight 2.9000kg
Shipping Width 0.085m
Shipping Height 0.298m
Shipping Length 0.320m

Maradyne Champion Series Fan - 12" - 12V / 225W - 1595 CFM - M122K

SKU: EF8912
Sale price
$249.00
PayPal Checkout
4 payments of $62.25

afterpay More info.

Make 4 payments of $62.25 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $62.25

Calculate Shipping
