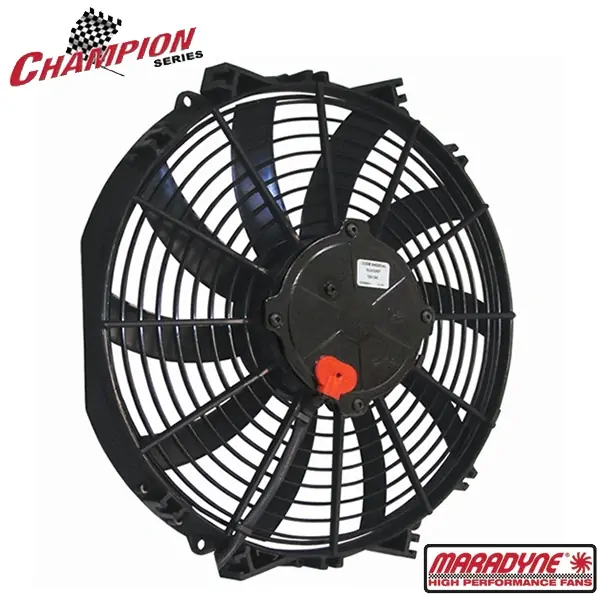

The M123K(EF8910) 12v 12" Maradyne Champion Series Fan features a reversible blade design whichis ratedup to 1155cfm /1962m3/h in the standard puller configuration.
The Maradyne Champion SeriesEF891012" Thermo Fan features a fully-sealed 130W motor (IP68) of superior quality and is backed with a 36-month manufacturers (see below).
| M123K 12" THERMO FAN DETAILS |
| Fan Model # |
M123K |
| Fan Series |
Champion Series |
| Voltage |
12V |
| Motor |
LL 130W Heavy Duty |
| Flow Type |
Puller or Pusher (ships as puller) |
| Blade Diam. |
12 inch (305mm) |
| Blade Type |
Skew |
| Shroud Type |
Finger Guard |
| Amps |
7.7 |
| CFM |
1155 |
| M3/H |
1962 |
| Spec. Sheet |
View Specifications  |
|
|
| Mounting |
View Mounting Instructions |
| Included in Box |
- Thermo Fan
- Wiring Pigtail
- Fan Mounting Feet (4)
|

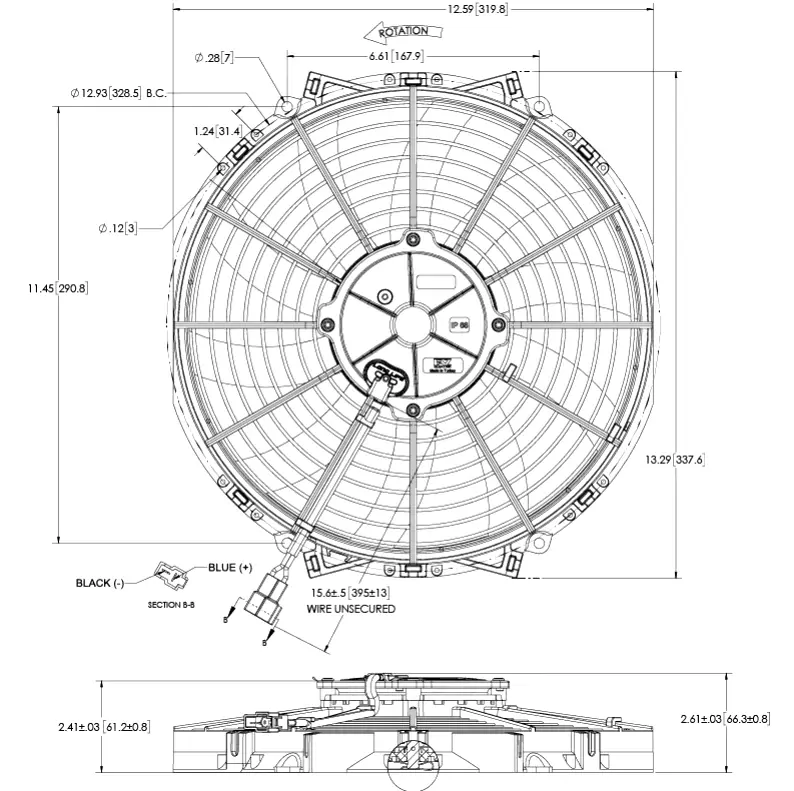

| M123K 12" THERMO FAN DIMENSIONS |
| A |
319.8mm / 12.59" |
| B |
290.8mm / 11.45" |
| C |
167.9mm / 6.61" |
| D |
337.6mm / 13.29" |
| E |
66.3mm / 2.61" |
 |
| MORE INFORMATION |
|
|
|
|
- Lowest profile high performance reversible thermo fans on the market
|
- Sealed motor tested in accordance with DIN EN 60529, dust and waterproof to IP68
|
- Quiet, S-blade design works as a puller or pusher fan (ships as a puller)
|
- All glass-filled nylon construction
|
- Includes (4) 90° mounting feet, locking mating pigtail connector and rubber spacers
|
|
|
|
|
|
|
