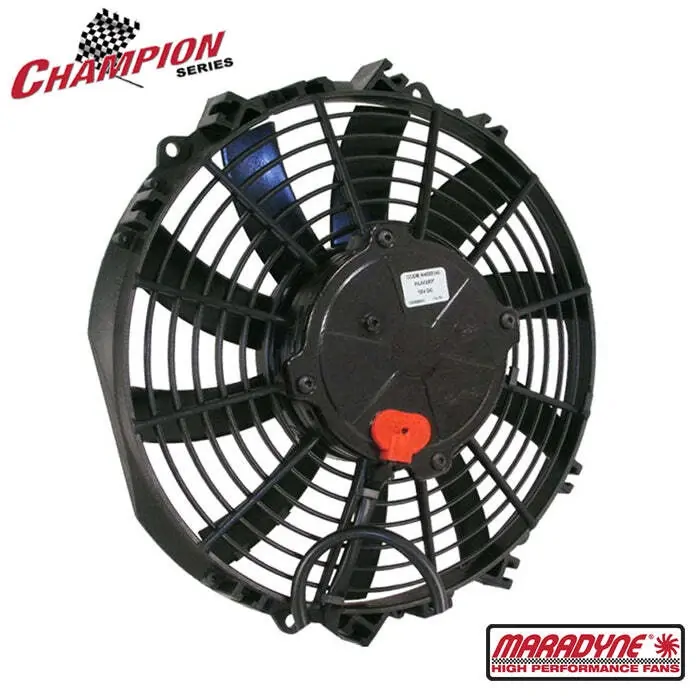

The M103K-24(EF8907) 24v 10" Maradyne Champion Series Fan features a reversible blade design whichis ratedup to 950cfm /1614m3/h in the standard puller configuration.
The Maradyne Champion SeriesEF890710" Thermo Fan features a fully-sealed 130W motor (IP68) of superior quality and is backed with a 36-month manufacturers (see below).
| M103K-24 10" THERMO FAN DETAILS |
| Fan Model # |
M103K-24 |
| Fan Series |
Champion Series |
| Voltage |
24V |
| Motor |
LL 130W Heavy Duty |
| Flow Type |
Puller or Pusher (ships as puller) |
| Blade Diam. |
10 inch (254mm) |
| Blade Type |
Skew |
| Shroud Type |
Finger Guard |
| Amps |
7.9 |
| CFM |
950 |
| M3/H |
1614 |
| Spec. Sheet |
View Specifications  |
|
|
| Mounting |
View Mounting Instructions |
| Included in Box |
- Thermo Fan
- Wiring Pigtail
- 4 x Mounting Feet
- 1 x Nylon Tie Kit
|

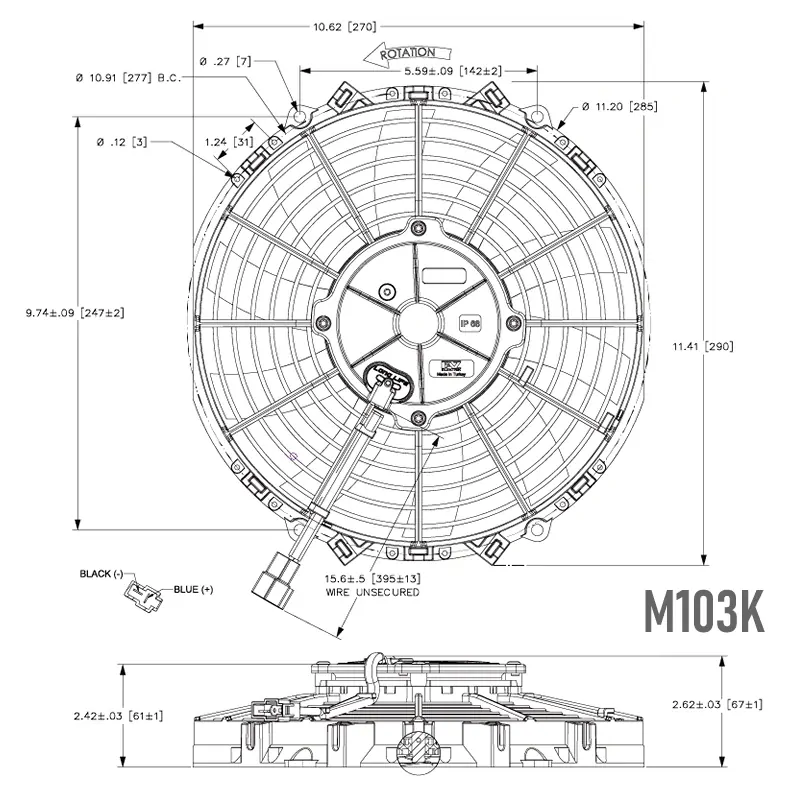

| M103K-24 10" THERMO FAN DIMENSIONS |
| A |
270mm / 10.62" |
| B |
247mm / 9.74" |
| C |
142mm / 5.59" |
| D |
290mm / 11.41" |
| E |
67mm / 2.62" |
 |
| MORE INFORMATION |
|
|
|
|
- Lowest profile high performance reversible thermo fans on the market
|
- Sealed motor tested in accordance with DIN EN 60529, dust and waterproof to IP68
|
- Quiet, S-blade design works as a puller or pusher fan (ships as a puller)
|
- All glass-filled nylon construction
|
- Includes (4) 90° mounting feet and nylon tie kit
|
- Includes locking mating pigtail connector and rubber spacers for proper spacing of heat exchanger
|
|
|
|
|
|
|
