Majestic ANTRV01

The Majestic ANTRV01 TV/FM Antenna with built in booster for Vehicles is designed for installations in Car's, RV's or Motorhomes to provide a neat looking installation without a massive antenna being mounted to the roof. The ANTRV01 is developed using the ground earthing system to give you the best possible performance for metal installations while providing a High Gain 23dB reception. The Majestic team has developed this antenna with size and performance being the primary factors.

Technical Features

Gain: The Majestic engineering team has taken the time develop a small compact antenna that is able to give exceptional performance. The ANTRV01 TV antenna is developed using similar technology to the globally know Majestic UFO X. The built in amplifier is smaller in design and slightly lower Gain coming in at 23dB. Given that the antenna uses the earthing of the vehicle as its ground this ensures the Antenna is able to give you the best possible performance for a metal surface installation. Having the amplifier built in the antenna gives you a huge advantage over other TV antennas because now you have a very strong signal in the antenna that has not had any interference being induced when it received the signal, and with a very strong signal being sent down the cable, the electrical interference is insignificant compared to the strong signal. The ANTRV01 does not need to do any filtering or cleaning to give you excellent digital reception directly to your TV.

SNR: Signal to Noise Ratio. This is one of the most important factors of a TV Antenna which has an amplifier. The lower the signal to noise ratio the better the amplifier performs. Basically we are comparing Signal vs Noise. The more signal we have and the less noise we have the better the amplifier works. The ANTRV01 uses a low noise amplifier to produce a very low a signal to noise ratio of 7dB which is low compared to most other brands. This means that more signal is amplified and less noise is amplified, which in turn means better performance. This also significantly improves distance performance, as the further you get the signal is weaker, and the noise of electrical interference, other noise still remains high, so the ANTRV01 Amplifier is able to clean the signal and give you exceptional performance.

UHF/VHF/FM: The ANTRV01 is capable of receiving signal on different frequencies. Throughout various countries there are UHF and VHF signals for Digital and analog TV, the ANTRV01 can pick them up and integrate the process in the antenna and amplify them and send a nice clean signal down the cable for your TV. But more importantly the ANTRV01 can pick up FM signal and boost this performance. The ANTRV01 has two outputs one for TV signal and one dedicated for AM/FM.

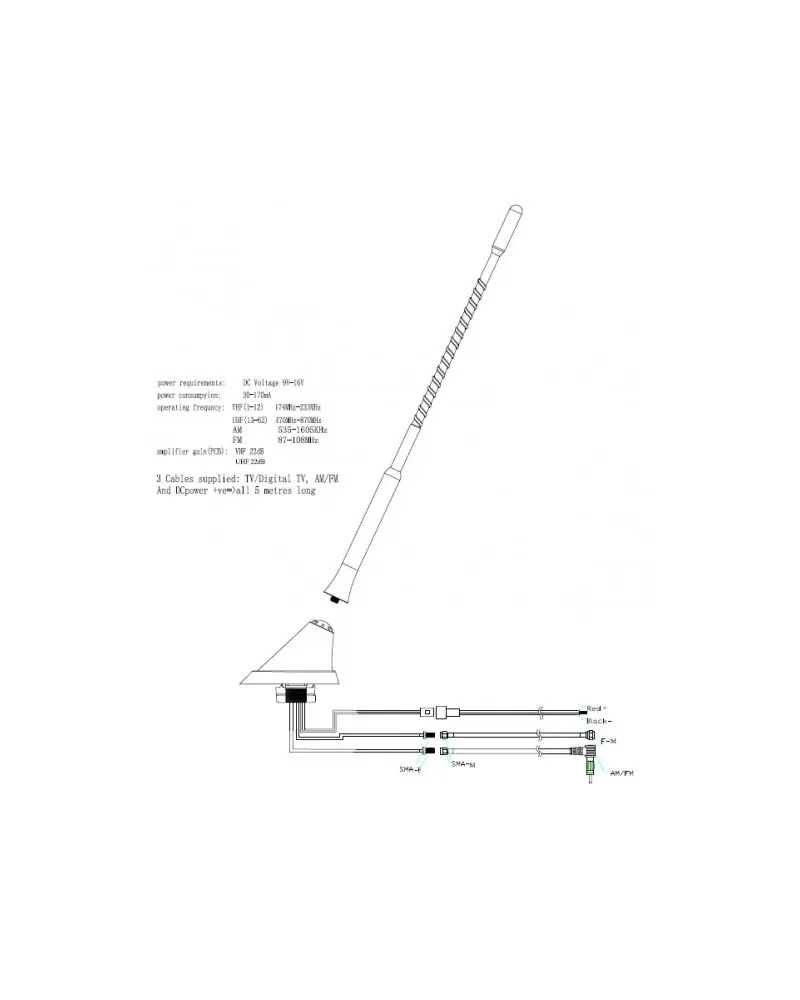

Operating Frequencies:
VHF - 48.5MHz - 233MHz
UHF - 470MHZ - 870MHz
AM - 535KHz - 1605KHz
FM - 87MHz - 108MHz

Warranty: Majestic products are designed and developed in Australia and exported globally, with over 15 years experience Majestic stands by the quality of our products by providing a 3 year worldwide warranty. Our engineering design team has paid attention to all the important details to ensure that when you purchase a product of this quality and caliber that you can enjoy many years of reliable performance in the toughest conditions where domestic brands will not survive.

Size: The Majestic ANTRV01 has been developed with size as a critical factor and we have engineered the amplifier to be in the base of the antenna using state-of-the-art technology in the internal electronics. These technical advances ensure the ANTRV01 not only looks much better than most TV antennas in RV installations, but gives you the performance that you have come to expect from Majestic products.

Ground Dependent: The ANTRV01is also designed to be ground dependent (it needs to use a ground plane or be grounded) to amplify the TV signal. This design is very specific as most installations in Motorhomes and RV's are metal roofing so the ground is perfect for this types of antenna. This is another brilliant engineering design by Majestic to make this antenna perfect for metal roof installation.

If you need a TV antenna with a ground independent system, for example a boat, fiberglass or marine Installation then you need to use our UFO X which is specifically designed for ground independent installations.
