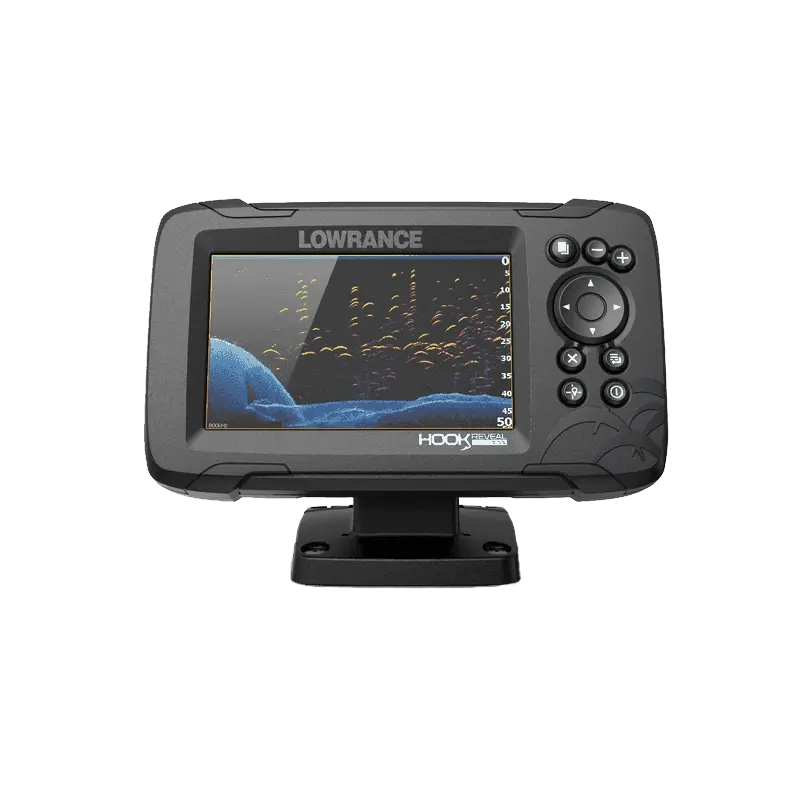

The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar and DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas or map uncharted water – in real time – with Genesis Live
Key Features
- FishReveal™
- Genesis Live Real-Time Mapping
- Autotuning sonar
- Double the sonar coverage of other fishfinders
- Included SplitShot transducer
- SolarMAX™ Display
- New fish-finding colou=r palettes
- Optimized keypad with one-touch access to key features
- microSD card slot (Software updates and Genesis Live only)
- Easy front-dash or gimbal-bracket mount
SolarMAX™ Display Enjoy crisp and clear views of your display no matter the conditions – even in direct sunlight – with excellent clarity and daylight visibility of HOOK Reveal’s SolarMAX™ display.

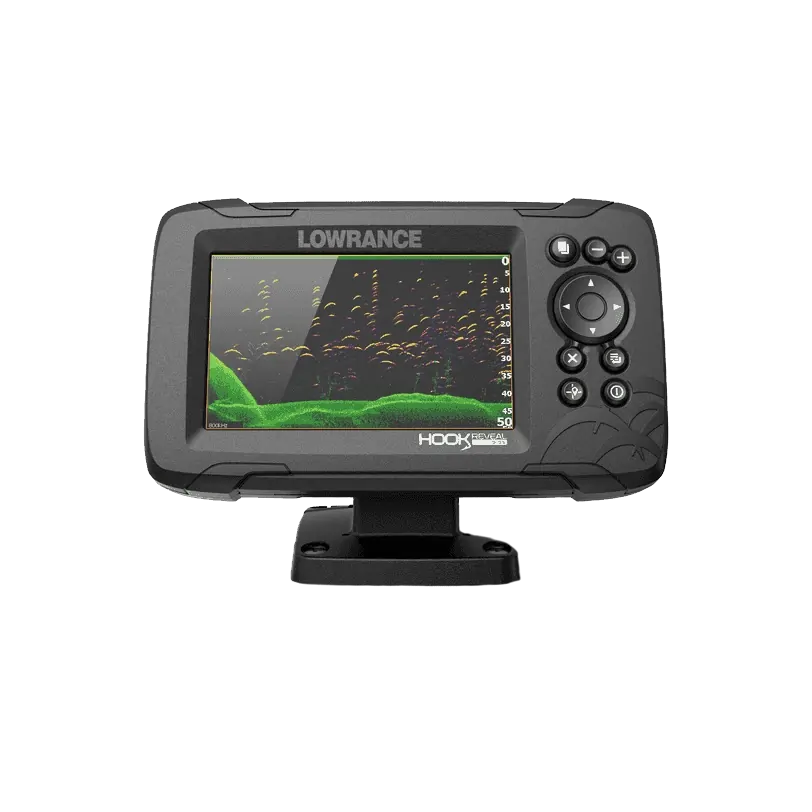

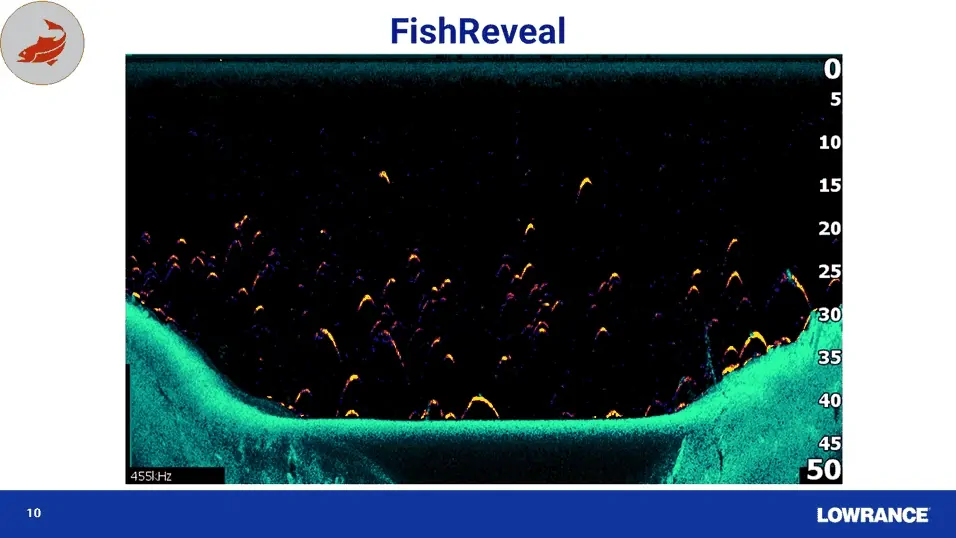

FishReveal Fish are easier to find and easier to identify with FishReveal™, which combines on one screen the proven target separation of Lowrance CHIRP sonar and the high-resolution images of structure from DownScan Imaging™.
Genesis Live Real-Time Mapping Create custom ½-foot contour maps of your local lake or uncharted water – in real time – on the display of your HOOK Reveal with Genesis Live. Genesis Live maps can be created and saved by placing a blank microSD card into the card slot.
Autotuning Sonar Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Autotuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.
Easy-to-use Menu Operation and Dedicated Keypad Easily navigate through menus, select options and access key functions with HOOK Reveal’s simple menu layout and dedicated keypad.

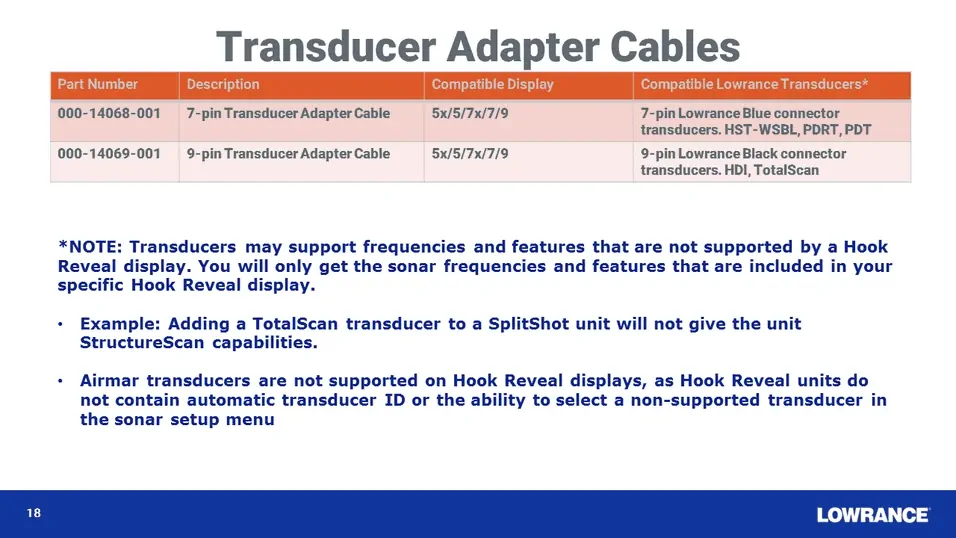

Included SplitShot transducer. This display is compatible with other 83/200 or 50/200 HDI transducers for enhanced sonar coverage area or improved depth performance.

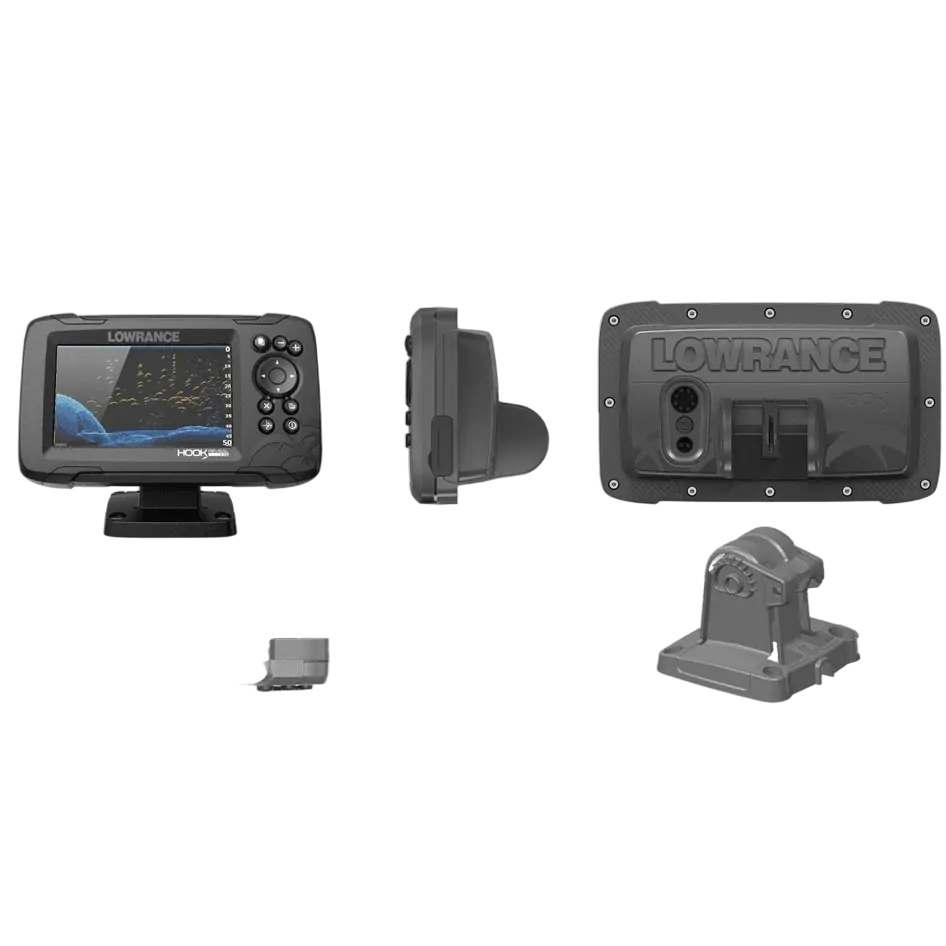

Easy front-dash or gimbal-bracket mounting installation
Physical (with bracket)
| Height | 128.7 mm (4.07") |
| Width | 185.7 mm (7.31") |
| Depth | 112.3 mm (4.42") |
| Weight | 0.46 Kg (1.01 lbs) |
Sonar
| Type | Wide Angle 200 kHz / High CHIRP 455/800 DownScan Imaging |
| Max sonar depth | 200kHz 152 m+ (500 ft+) DownScan: 91 m (300 ft) |
Display
| Size | 5 Inch |
| Resoloution | 800x480 |
| Brightness | 1100 nits |
| Technology | Sunlight readable SolarMAX™ display |
| Viewing angles | 70°/50°, top/bottom, 70°/70°, left/right |
Storage
| Memory card | 1 x Micro SD Card |
GPS
| Waypoints | 3000 |
| Routes | 100 |
| Tracks | 100 |
Mounting
| Bracket | Supplied |
| Panel mount | Optional panel mount kit required (000-14187-001) |
Power
| Supply voltage | 12 V DC (10.4-17.0 V DC) |
| Current draw | 12.2 W |
| Fuse | 3 A |
Environmental
| Operating Temperature | -15° C to +55° C (+5° F to +131° F) |
| Water proof rating | IPX6 / IPX7 |
| SKU | 000-15503-001 |
|---|---|
| Barcode # | 9420064114382 |
| Brand | Lowrance |
| Shipping Weight | 2.5000kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |

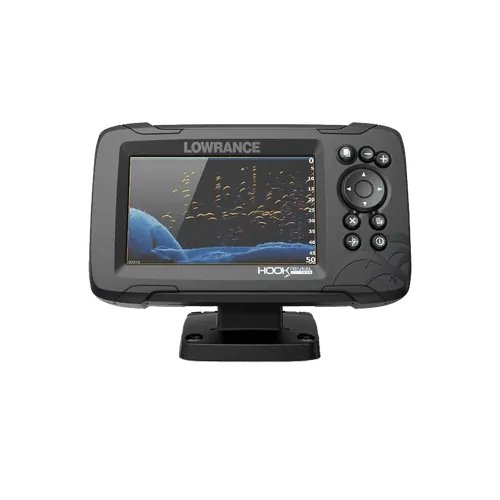

Lowrance Lowrance Hook Reveal 5X Splitshot
More infoMake 4 payments of $92.50 over 8 weeks and get it now!
