Description

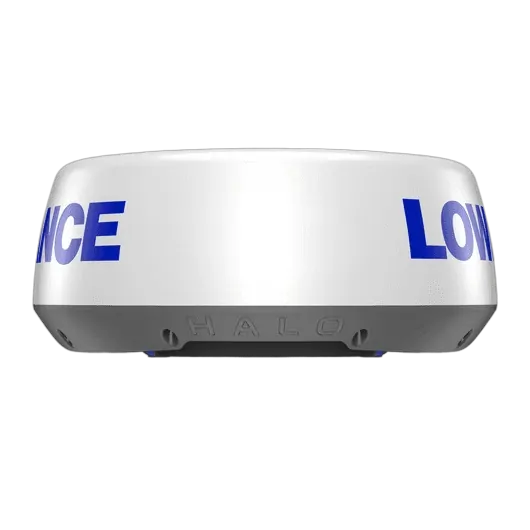

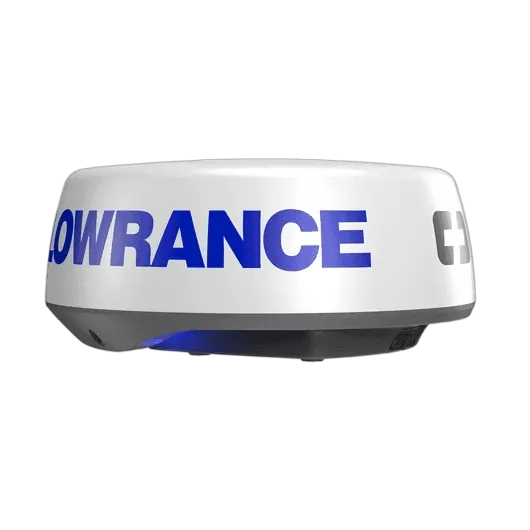

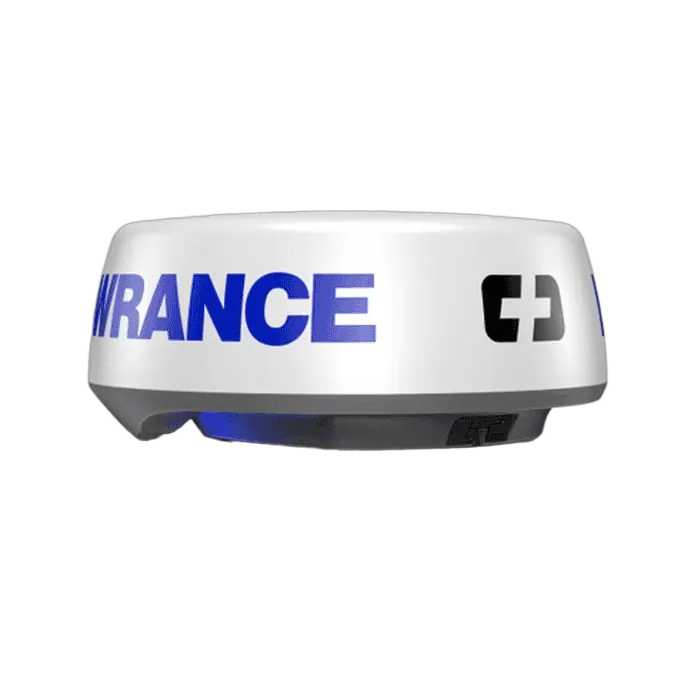

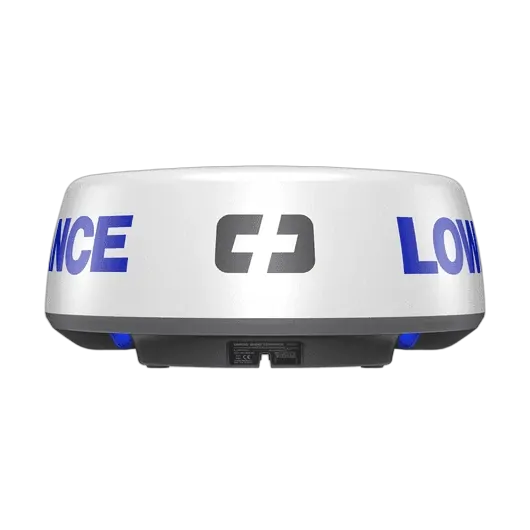

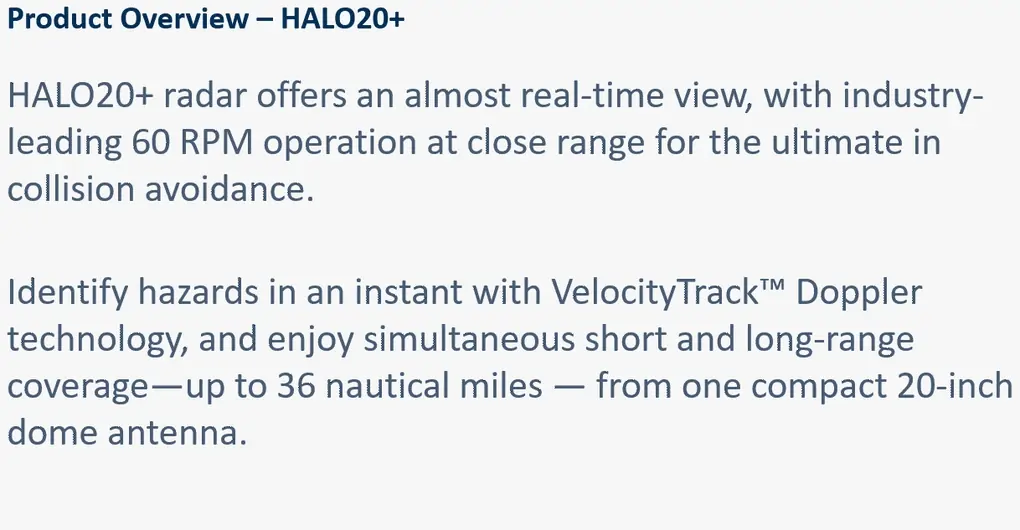

HALO20+ Radar - A compact 20'' powerful 25W Solid-State Radar, delivering 60RPM at short range and up to 36nm range. Identify hazards in an instant with VelocityTrack™ Doppler technology and can run dual scale to identify hazards long and far.
Specifications
| Compliance | CE, FCC (ID:RAYHALO20PLUS), IC: 978B-HALO20PLUS |
| Environmental | IEC60945 : 2002, |
| Operating Temperature | -25° to +55°C (-13° to +130°F) |
| Relative humidity | +35° C (95° F), 95% RH |
| Waterproof | IPX6 |
| Max relative wind velocity | 51 m/sec (100 Knots) |
Power & Dimensions
Power consumption (with 10m cable)
| Operating | 17 to 29W at 13.8 V |
| Standby | 3.9 W (Typ.) at 13.8 V DC ~ 170 mA |
| DC input (at radar end of cable) | 9 V to 31.2 V DC (12/24 V systems) |
| Reverse polarity protection | Yes |
| Minimum startup voltage | 10.75 V DC |
| Transmitter source (pre-heating time) | No magnetron – Instant On |
| Outside dimensions | Ø Diameter 510 mm (20”), Height 223 mm (8.8”) |
| Scanner weight (no cable) | 5.9kg (13 lbs) |
Radar and Antenna parameters
| Radar ranges | 100 m (328 ft) to 36nm with 18 range settings, (NM/SM/Km) |
| Rotation (mode dependent) | 20 - 60 rpm (mode and MFD dependent) |
| Transmitter frequency | X-band - 9.4 to 9.5 GHz |
| Transmitter source (warm-up time) | No Magnetron – all solid state. Instant On™ |
| Plane of polarization | Horizontal Polarization |
| Transmitter peak power output | 25W |
| Minimum range | 6 m (19.7 ft) |
| Sweep repetition frequency | 700-2400 Hz (mode dependent) |
| Pulse length | 0.04 - 64 usec |
| Sweep bandwidth | 48 MHz max |
| Horizontal beam width (Tx and Rx antenna) | 4.9° nominal (-3 dB width) |
| Target Seperation Control | OFF: 3.9°+/-10% (-3 dB width nominal), LOW: ~3.4°+/-10% (-3 dB width nominal), MED: ~2.5°+/-10% (-3 dB width nominal), HIGH: ~2.0°+/-10% (-3 dB width nominal) |
| Vertical beam width (Tx and Rx antenna) | 25° (-3B width nominal) |
| Side lobe level (Tx and Rx antenna) | Below -18 dB (within ±10°);Below -24 dB (outside ±10°) |
| Noise figure | Less than 5 dB nominal |
Communications/Cabling
| Protocol | Ethernet 100 Base T |
| Maximum inter connecting cable length | 30 m (98.5 ft) – available as option, use NEP-2 for longer cable runs |
| SKU | 000-14542-001 |
|---|---|
| Barcode # | OEBC672445 |
| Brand | Lowrance |
| Shipping Weight | 20.0000kg |

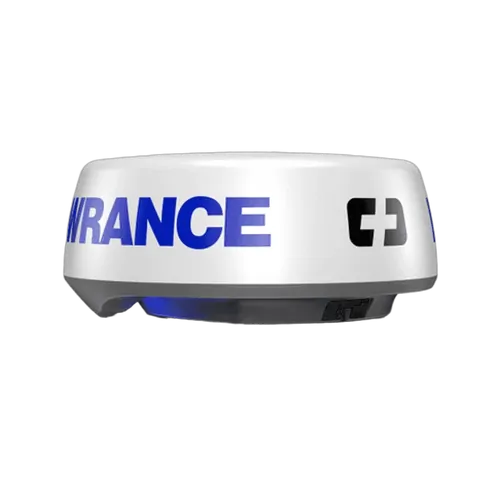

Lowrance LOWRANCE HALO20+ Radar
SKU: 000-14542-001
Sale price
$3,499.00
More infoMake 4 payments of $874.75 over 8 weeks and get it now!
