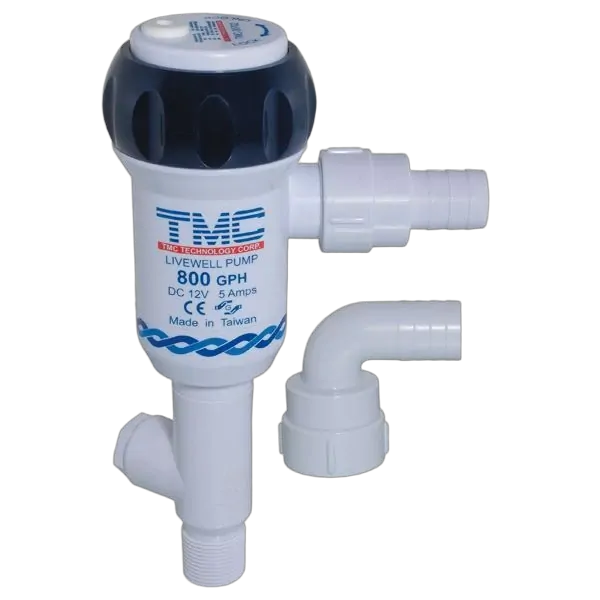

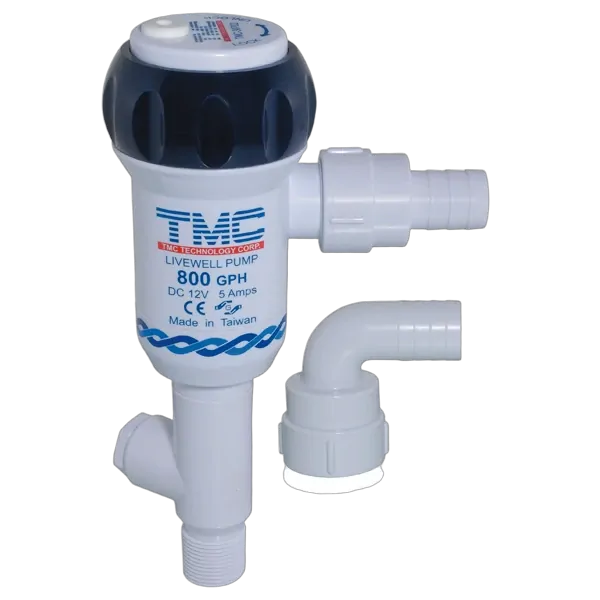

The TMC Livewell Pump is designed for easy installation, available in three different models to suit your requirements. The twin-port design provides the convenience of using one intake for both Livewell and a washdown pump connection. A breather hole allows the pump to clear trapped air while the boat is travelling through rough water or anchored.
The TMC Livewell Pump's unique design and features a removable motor which can be separated away from theport housing, allowing easy cleaning or maintenance. The motor cartridge has a simple twist-lock method that firmly attaches and holds the motor cartridge to the port housing, which sets it apart from most Livewell Pumps available on the market.
Twin PortsThe twin port design offers the convenience of using just one intake for both livewell and a water washdown pump.
Rotatable Discharge PortThe discharge port can be rotated 360° providing an easy to install design.
Replaceable Motor CartridgeLivewell pump is designed so that the motor can be remove or replace for easy maintenance.
Airlock PreventionTop breathing holes prevent airlocks.
Additional 1/2" NPT PortAn additional 1/2" NPT port allows the livewell pump to be connected to a wash down pump.
CE CertifiedMeets ISO-9001 and ISO-14001 manufacturing standards.
Part No. | 23023 |
Length | 143mm |
Width | 77mm |
Height | 226mm |
Outlet Diameter | 3/4" |
Flow Rate | 800GPH (3028LPH) |
Volts | 12V |
Amps | 5 |
SKU | 23023 |
---|---|
Barcode # | 9330420003741 |
Brand | TMC |
Shipping Weight | 2.0000kg |
Assembled Length | 0.143m |
Assembled Width | 0.077m |
