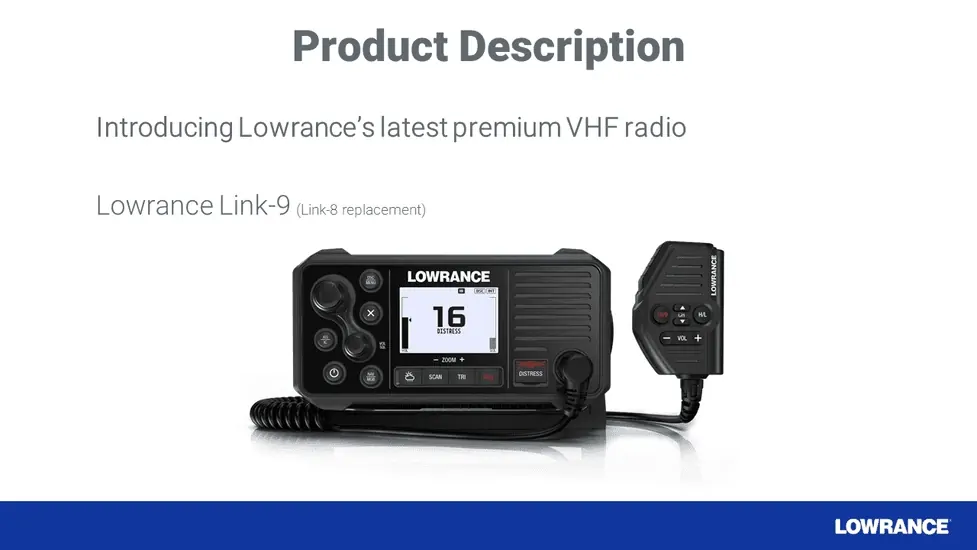

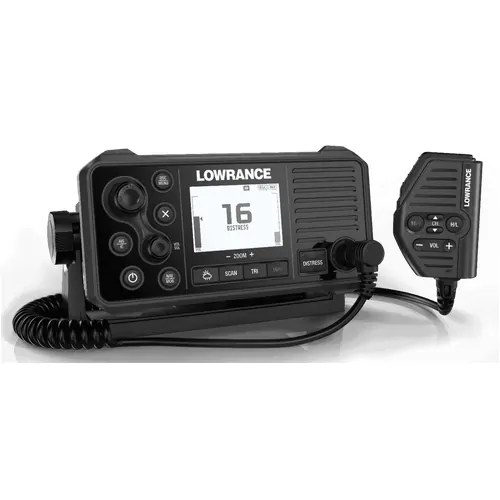

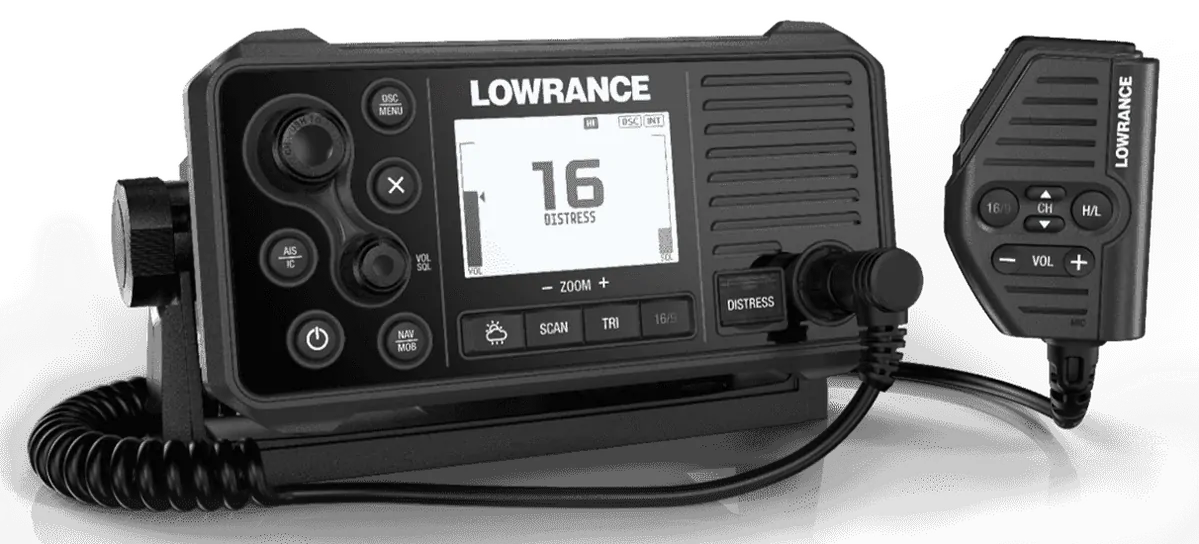

Lowrance LINK-9 marine VHF radio with DSC and AIS receiver.

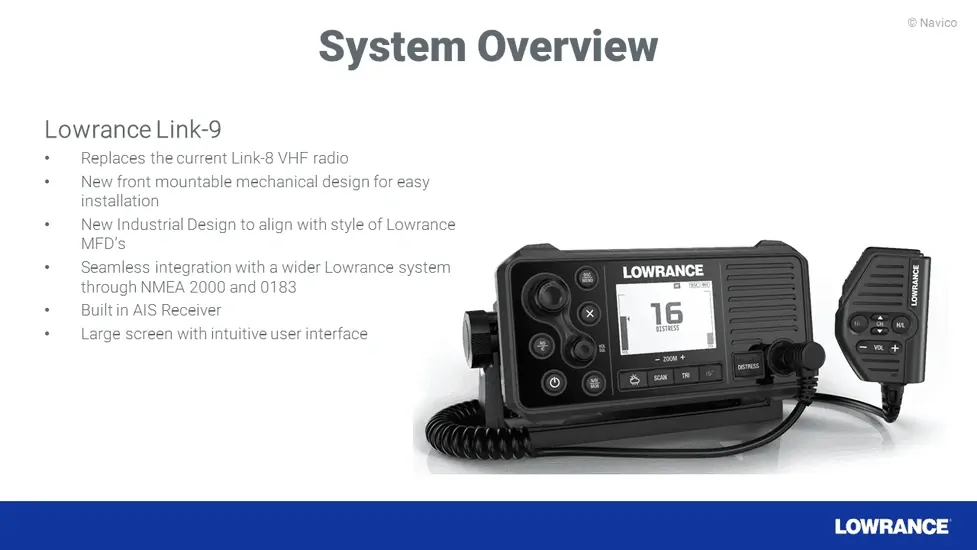

Overview
- Lowrance Link-9 Replaces the current Link-8 VHF
- New front mountable design for easy installation
- New Industrial Design to align with style of Lowrance MFD’s

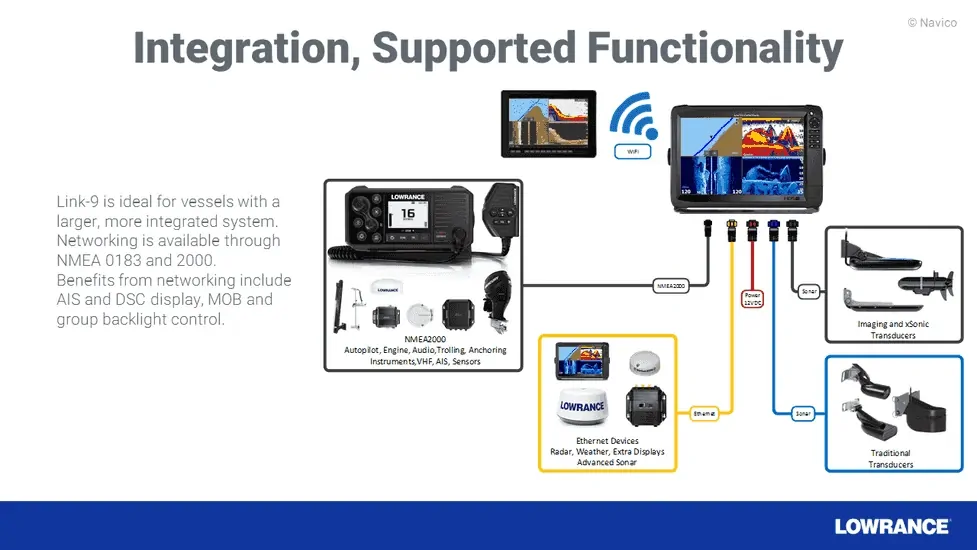

- Seamless integration with a wider Lowrance system through NMEA 2000 and 0183
- Built in AIS Receiver
- Large screen with intuitive user interface

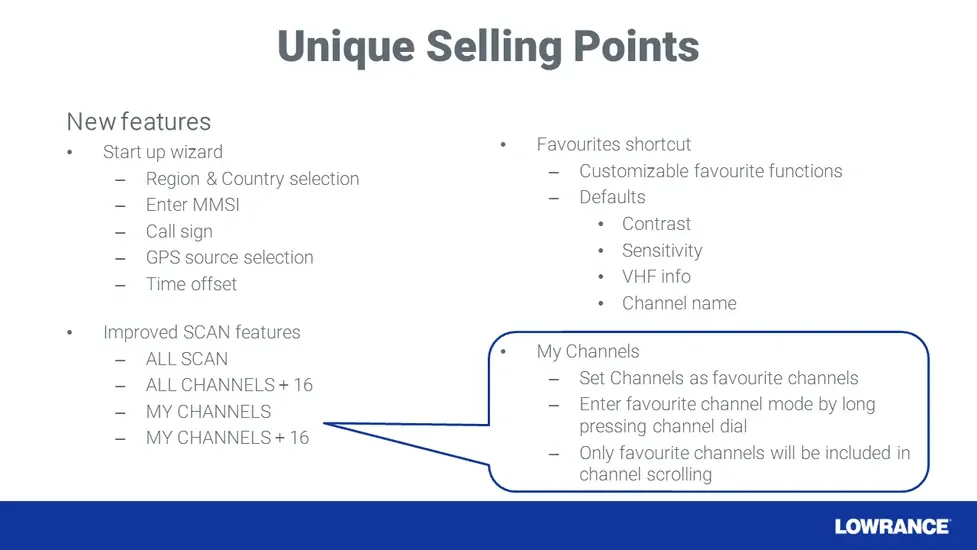

Unique Selling Points
GPS 4-Ways:
- With the integrated GPS receiver the Link-9 now has four ways to ensure you have a GPS fix in the event of an emergency.
- A GPS antenna in the face of the radio means open air installations don’t need another antenna at all
- An SMA connector on the rear case allows for connection to a GPS-500 antenna
- NMEA 0183 allows you to get GPS from a chartplotter
- NMEA 2000 means you don’t need another antenna if you already have one in your network
Built in AIS
- A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways.
- AIS information can be viewed on the Link-9’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.
Remote Mountable Fist Mic
- The Link-9’s removable fist mic can be connected to the front or rear of the radio, and optional extension cable allows the radio and mic to be mounted separately.
- This offers a simple and cost-effective solution for any mounting location, with no cable clutter.
- For example, the Link-9 can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

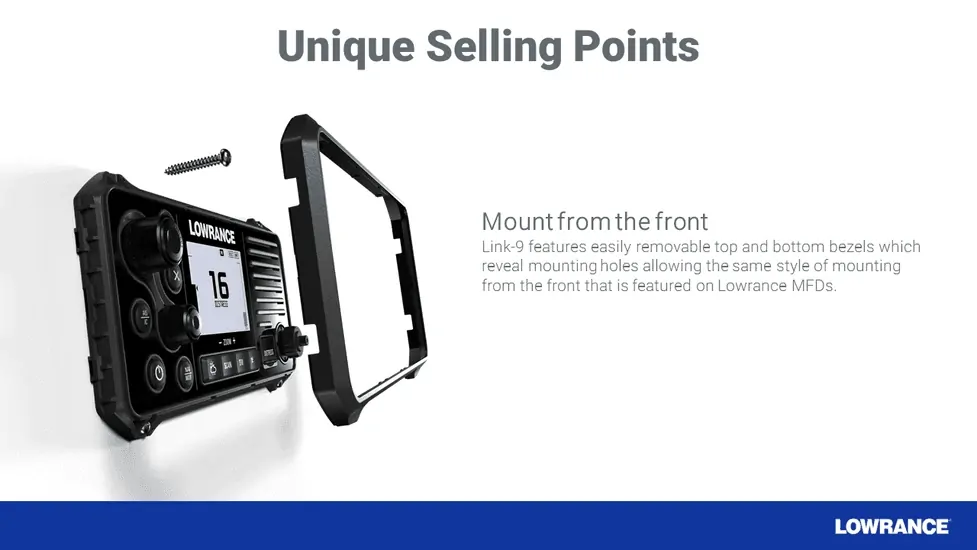

Mount From The Front
- Link-9 features easily removable top and bottom bezels which reveal mounting holes allowing the same style of mounting from the front that is featured on Lowrance MFDs.

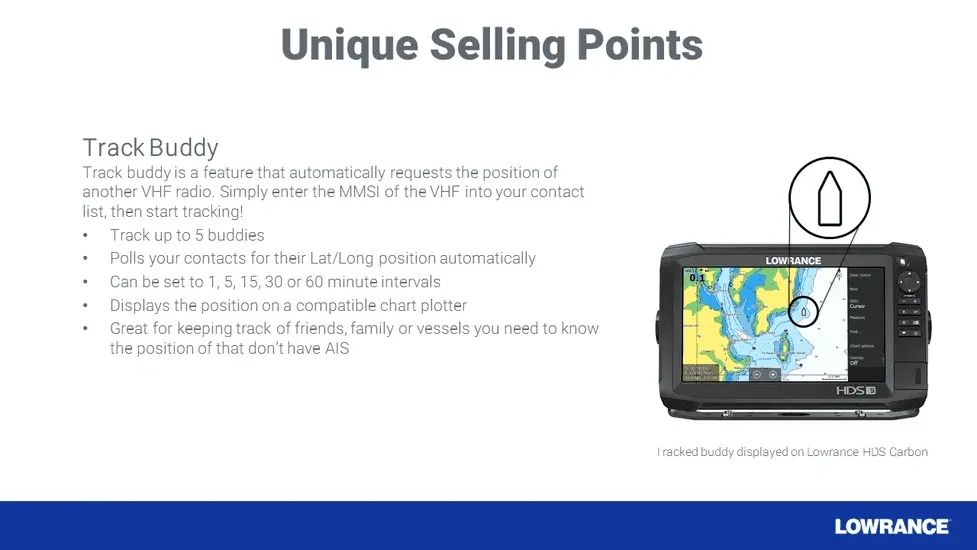

Track Buddy
Track buddy is a feature that automatically requests the position of another VHF radio. Simply enter the MMSI of the VHF into your contact list, then start tracking!
- Track up to 5 buddies
- Polls your contacts for their Lat/Long position automatically
- Can be set to 1, 5, 15, 30 or 60 minute intervals
- Displays the position on a compatible chart plotter
- Great for keeping track of friends, family or vessels you need to know the position of that don’t have AIS
Navigation Mode
- Press the NAV button on the Link-9 to turn it into a navigational instrument displaying your Speed and Course.
- V60 also contains a Man Overboard (MOB) function, hold down the NAV/MOB button to drop a waypoint on your current location and the Link-9 will enter MOB mode to show you how far away you are and where you need to steer to get back to the position of the MOB event. The MOB waypoint is also transmitted over NMEA 2000 to the rest of your network.
Enviromental
Temperature range | -15 to +55°C (+5 to +131°F) |
Waterproof | IPX7 |
Power
Normal Working Voltage | +13.6 V DC |
Minimum operating Voltage | ≤10 V DC |
Low battery detect Voltage | 10.5 ± 0.5 V DC |
Over Voltage Protection | >15.8 ± 0.5 V DC |
Hailer Audio Power Out | 30 W |
Current Drain RX Max Audio Power | ≤1.5 A |
Current Drain Stand-By RX | ≤0.45 A |
Current Drain At 12V DC : Hi Power TX | ≤6 A |
Current Drain At 12V DC : Lo Power TX | ≤1.5 A |
General
Frequency Range: Transmit | 156.025?157.425 MHz |
Frequency Range: Receive | 156.050?163.275 MHz |
Channels | INT / US / CAN / EU |
Oscillate Mode | PLL |
Modulation | FM(16KOG3E) DSC(16K0G2B) |
Channel Spacing | 25 KHz |
Frequency Stability | ±5 PPM |
Digital Selectivity Calling (DSC) | Class D |
LCD Display | FSTN 256x160 Pixels |
AIS Max Targets | 150 |
RECEIVER
Intermediate Frequency : 1st | 38.85/21.7 MHz |
Intermediate Frequency : 2nd | 450 KHz |
Sensitivity : 12dB SINAD | ≤-6 dBuV(EMF) |
Squelch Sensitivity: at tight | ≤ 6 dBuV(EMF) |
Spurious Response Rejection Ratio | ≥70 dB |
Adjacent Channel Selectivity | ≥70 dB |
Intermodulation Response | ≥68 dB |
S/N at 3KHz Dev. | ≥40 dB |
Audio Output Power At THD 10% | ≥2.5 W |
Audio Distortion | ≤10 % |
Audio Response | +1 to -3dB of 6dB/octave from 300hz to 3kHz |
Current Drain Max Audio Power | ≤1.5 A |
Current Drain Stand-By | ≤0.45 A |
2ND RX Sensitivity For 12dB SINAD | ≤ 0 dBuV(EMF) |
2ND RX bit error ratio@-107dBm | ≤ 10-2 |
TRANSMITTER
Frequency error | ≤±1.5KHz KHz |
RF Power : Hi | 23 ± 2 W |
RF Power : Lo | 0.8 ± 0.2 W |
Maximum Deviation | ≤± 5 KHz |
S/N at 3KHz Dev. | ≥40 dB |
Modulation Distortion | ±3KHz ≤10 % |
Audio Response at 1KHz Dev. | +1 to -3dB of 6dB/octave from 300hz to 3KHz dB |
Spurious/Harmonic Emissions: Hi/LO | ≤0.25 uW |
Modulation Sensitivity | ≤15 mV |
DSC TX deviation at 1.3K | 2.6±0.26 KHz |
DSC TX deviation at 2.1K | 4.2±0.42 KHz |
ATIS TX deviation at 1.3 KHz | 1.3±0.13 KHz |
ATIS TX deviation at 2.1 KHz | 2.1±0.21 KHz |
SKU | 000-14472-001 |
---|---|
Barcode # | 9420024172490 |
Brand | Lowrance |
Shipping Weight | 2.4000kg |
Shipping Width | 0.265m |
Shipping Height | 0.165m |
Shipping Length | 0.235m |
