Description

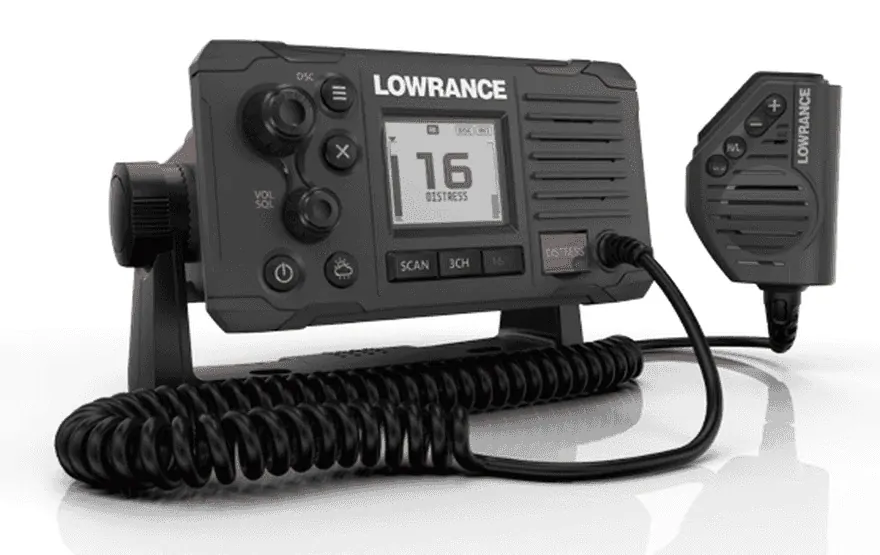

Lowrance Link-6S Marine DSC VHF Radio. With built in GPS.
Overview
- Built in GPS Antenna
- NMEA0183
- New front mountable mechanical design for easy installation
Key Selling points
- Built in GPS antenna
- Easy front mount solution
- Low profile to style match Lowrance MFD’s, 2 colour options
- Clear white dot matrix LCD
- Inverted LCD night mode for reduced light emission
- Dimmable to 0.5 nits for night operation
- Four button fist mic
- Full inbuilt country specific channel banks no requirement for programming
New features
Start up wizard
- Region & Country selection
- Enter MMSI
- Call sign
- GPS source selection
- Time offset_x000B_
Improved SCAN features
- ALL SCAN
- ALL CHANNELS + 16
- MY CHANNELS
- MY CHANNELS + 16
Favourites shortcut
- Customizable favourite functions
- Defaults
- Contrast
- Sensitivity
- VHF info
Channel name_x000B_
- My Channels
- Set Channels as favourite channels
- Enter favourite channel mode by long pressing channel dial
- Only favourite channels will be included in channel scrolling
Night Mode
- Invert the LCD display
- Minimizes light emitted for night mode operation
- Dimmable to 0.5 NITS
- LED’s dim with backlight control
Specifications
General
| Frequency Range: Transmit | 156.025~157.425 MHz |
| Frequency Range: Receive | 156.050~163.275 MHz |
| Number Of Channels | US / INT |
| Oscillate Mode | PLL |
| Modulation | FM(16KOG3E) DSC(16K0G2B) |
| Channel Spacing | 25KHz |
| Frequency Stability | ±5 PPM |
| Temperature range | -15°C to +55°C (5°F to 131°F) |
| Normal Working Voltage | +13.6 V DC |
| Minimum operating Voltage | 10 V DC |
| Low battery detect Voltage | 10.5 ± 0.5 V DC |
| Digital Selectivity Calling (DSC) | Class D |
RECEIVER
| Intermediate Frequency : 1st | 38.85/21.7 MHz |
| Intermediate Frequency : 2nd | 450 KHz |
| Sensitivity : 12dB SINAD | -6 dBuV(EMF) |
| Squelch Sensitivity: at tight | 6 dBuV(EMF) |
| Spurious Response Rejection Ratio | 70 dB |
| Adjacent Channel Selectivity | 70 dB |
| Intermodulation Response | 68 dB |
| S/N at 3KHz Dev. | 40 dB |
| Audio Output Power At THD 10% | 2.5 W |
| Audio Distortion | 10 % |
| Audio Response | +1 to -3dB of 6dB/octave from 300hz to 3kHz dB |
| Current Drain : Max Audio Power | 1.5 A |
| Current Drain : Stand-By | 0.5 A |
| 2ND RX Sensitivity For 12dB SINAD | 0 dBuV(EMF) |
| 2ND RX bit error ratio@-107dBm | 10-2 |
Transmitter
| Frequency error | ±1.5KHz |
| RF Power | Hi23W ± 2W :Lo 0.8W ± 0.2W |
| Maximum Deviation | ± 5 KHz |
| S/N at 3KHz Dev. | 40 dB |
| Modulation Distortion ±3KHz | 10 % |
| Audio Response at 1KHz Dev. | +1 to -3dB of 6dB/octave from 300hz to 3KHz |
| Spurious/Harmonic Emissions: Hi/LO | 0.25uW |
| Modulation Sensitivity | 15 mV |
| Current Drain At 12V DC | Hi Power 6A: Lo Power 1.5A |
| DSC TX deviation at 1.3K | 2.6±0.26 KHz |
| DSC TX deviation at 2.1K | 4.2±0.42KHz |
| ATIS TX deviation at 1.3 KHz | 1.3±0.13 KHz |
| ATIS TX deviation at 2.1 KHz | 2.1±0.21 KHz |
| SKU | 000-14493-001 |
|---|---|
| Barcode # | 9420024172810 |
| Brand | Lowrance |
| Shipping Weight | 2.2000kg |
| Shipping Width | 0.265m |
| Shipping Height | 0.165m |
| Shipping Length | 0.235m |
Lowrance LINK-6S Marine VHF Radio w/ DSC
SKU: 000-14493-001
In stock
Sale price
$409.99
More infoMake 4 payments of $102.50 over 8 weeks and get it now!
