Description
PLEASE NOTE: DUE TO COVID19 A LOT OF OUR SUPPLIERS ARE HAVING ISSUES WITH STOCK. THE ETA FOR THIS PRODUCT IS MID SEPTEMBER 2021.
Lightforce performance is now available in our new black-bezel LED Bars, extruded from aluminium and finished in a UV resistant anodised coating to face the harshest conditions in the world.
The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.
Product features:
- Extruded aluminium body with black anodized coating
- IP69K rated to protect against moisture / contaminant ingress
- Hard coated, scratch and high impact resistant polycarbonate lens
- Custom moulded strain relief connector fitted to military spec cable
- Genuine Gore® waterproof membrane with mechanical seal
- Over, under and reverse voltage protection
- Pulse width modulation thermal management circuitry
- Protected against electromagnetic and radio frequency interference (RFI)
- Stainless steel brackets and mounting hardware
- Comprehensive wiring harness
- Broad operating voltage range of 10 ~ 36 volts
- Input cable length: 450mm (17.72?).Wiring Harness Length 2.5m (92.43?)
- Deutsch waterproof connectors
- RoHS certified
- 3 Year warranty.
Kit contains:
- 1 x Lightforce Dual Row LED Bar
- 1 x Full wiring harness (including relay and switch connector)
- 2 x Stainless steel brackets and hardware
- 1 x User instructions
Product specifications:
- Distance: 1 lux at 569m
- Distance: 0.25 lux at 1138m
- Effective Lumens 7472
- Raw Lumens 14,080
- Colour Temperature 5000K
- Current Draw 10.8Amps @ 13.2V
- Voltage Range 10V - 36V DC
- Wattage 176W
- Ingress Protection Rating IP69K
- Weight 3.17kg
Specifications
| SKU | D20XP |
|---|---|
| Barcode # | 9335712031709 |
| Brand | Lightforce |
| Shipping Weight | 3.8000kg |
| Assembled Length | 0.640m |
| Assembled Height | 0.140m |
| Assembled Width | 0.140m |

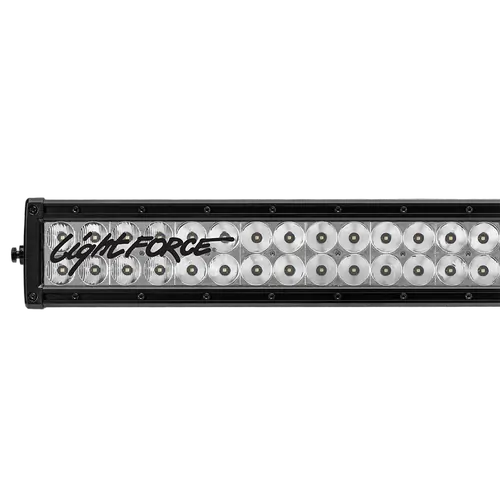

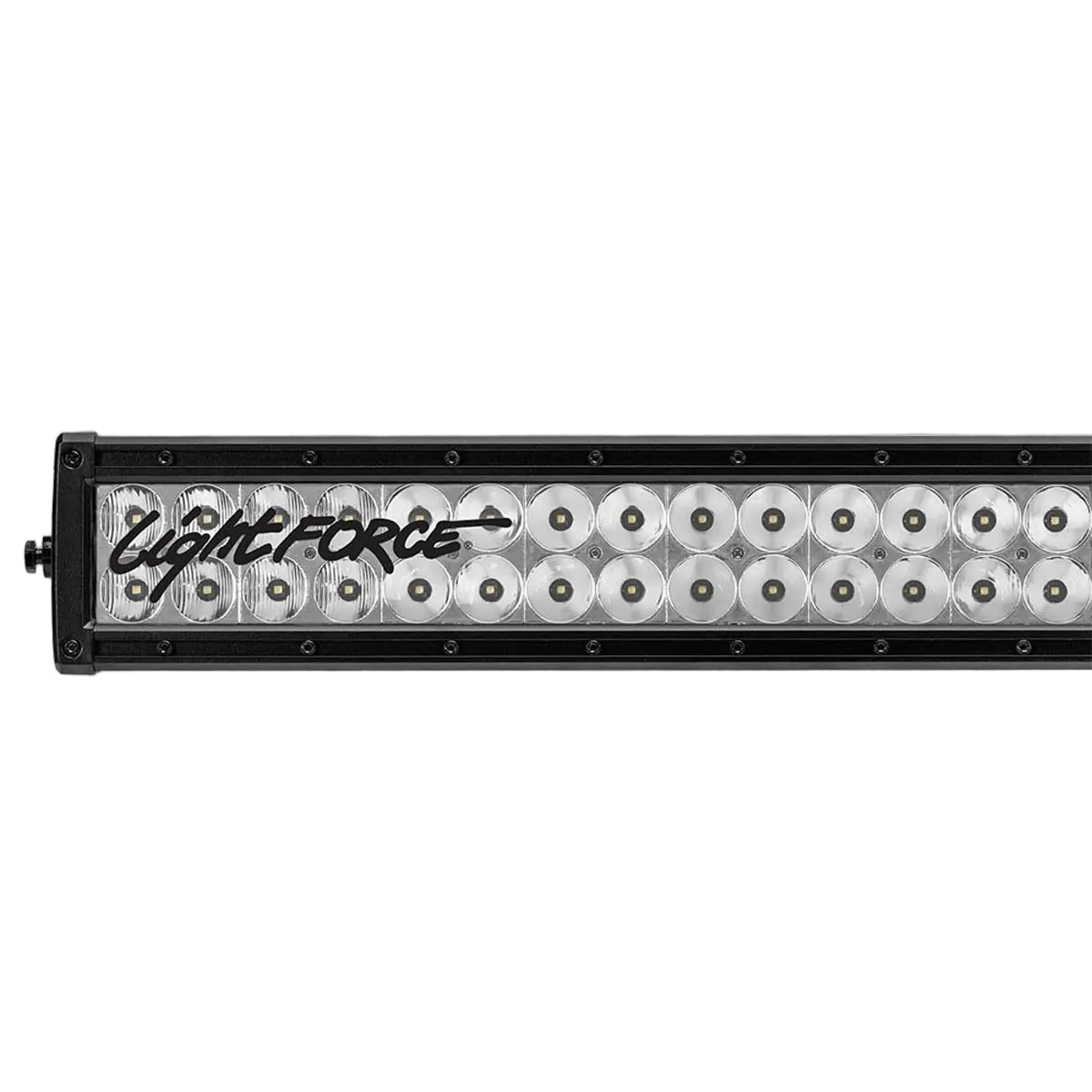

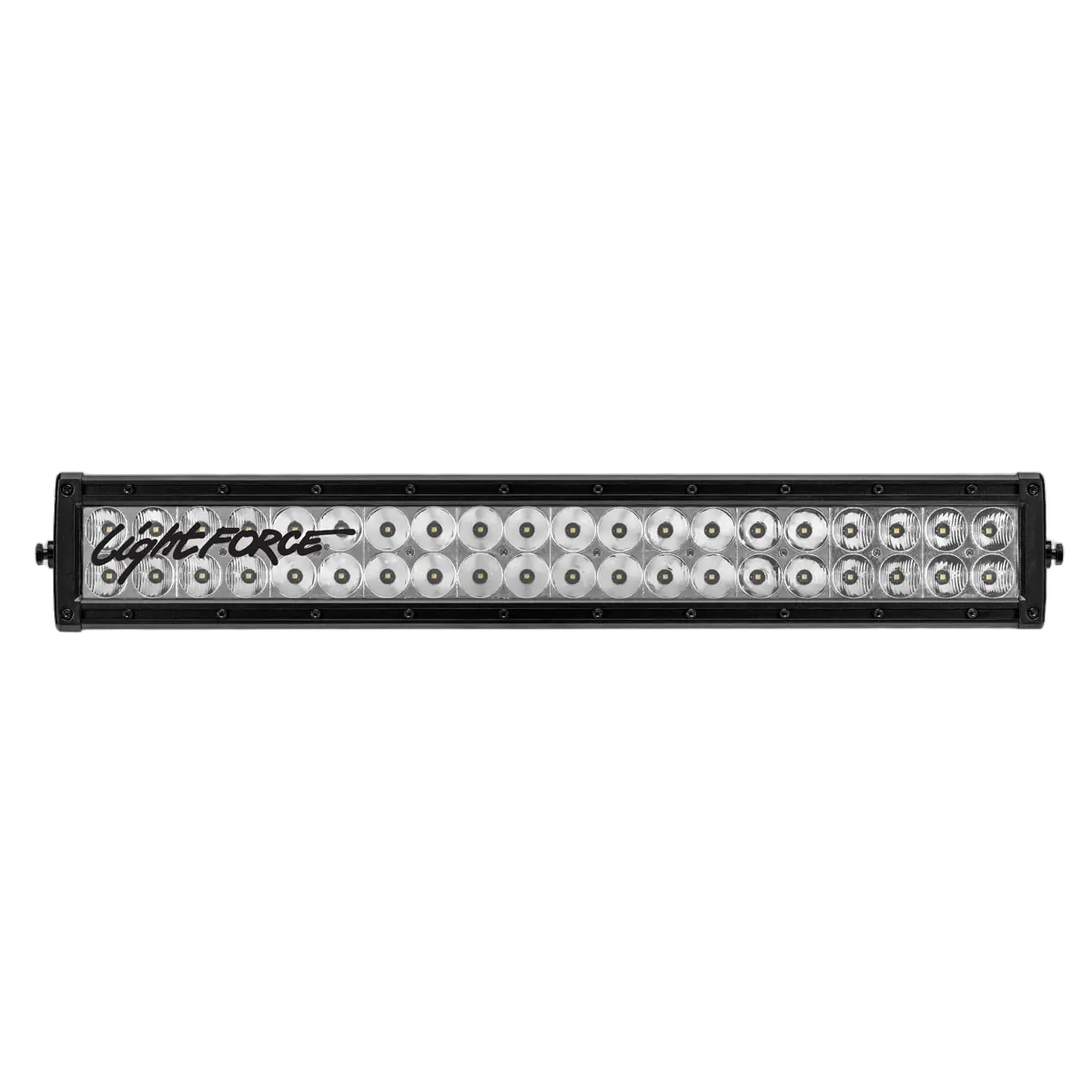

Lightforce XP 20 (508mm) Dual Row LED Bar Black 32 x 3W + 8 x 10W
SKU: D20XP
More infoMake 4 payments of $164.50 over 8 weeks and get it now!
The new and improved range of XP 20" Dual Row Light Bars from Lightforce feature extra durable lens, a waterproof design and a comprehensive wiring harness.
