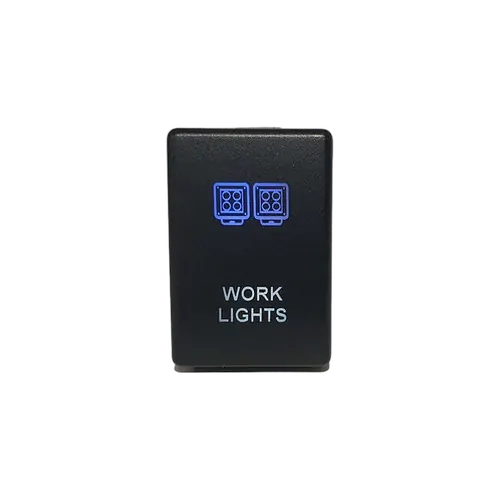

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.
This factory-style work lights switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.
Specifications include:
- Switch cut out size is 20mm x 31mm
- Housing material black PVC
- Single switch input
- Dual LED illumination
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v (must be used in conjunction with a relay)
Harness compatibility:
Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).
Switch connectivity:
VEHICLE COMPATIBILITY
MAKE | MODEL | COMPATIBLE FROM | COMPATIBLE TO |
---|---|---|---|
Isuzu | D-max | 2020 | 2023 |
Isuzu | Mux | 2021 | 2023 |
Mazda | BT50 | 2020 | 2023 |
SKU | CBSWDC3W |
---|---|
Barcode # | 9335712035196 |
Brand | Lightforce |
Shipping Weight | 0.1000kg |
Shipping Width | 0.150m |
Shipping Height | 0.100m |
Shipping Length | 0.050m |
