UNIVERSAL SUPPORTED MODELS
Nissan:
- GU Patrol Series 1-7 1997 – Current CBCOB75X35
- Navara D40 2008-2014 CBCOB75X35
- NP300 2015-2014 – Current CBCOB75X35
Toyota:
- 79 Series 1997 – Current CBCOB50X35
- 100 Series 1998 – 2007 CBCOB64X35
- 200 Series 2008 – 2018 CBCOB50X35, CBCOB64X35, CBCOB75X35
- Prado 150 2009 – Current CBCOB50X35, CBCOB64X35, CBCOB75X35
- Prado 120 1996 – 2002 CBCOB50X35
- Prado 90 2002 – 2009 CBCOB50X35
- Hilux 2005 – 2015 CBCOB50X35
- HiAce 2005 – 2013 CBCOB50X35
Holden:
- Colorado RG/7 2012 – Current CBCOB64X35, CBCOB75X35
- Rodeo RA 2003 – 2008 CBCOB64X35, CBCOB75X35
Isuzu:
- D Max 2009 – Current CBCOB64X35, CBCOB75X35
- MUX 2009 – Current CBCOB64X35, CBCOB75X35
COB (Chips On Board) is the latest technology in packaging LEDs together to produce a combined light source, resulting in a very broad and uniform light being emitted over 180°.
With a colour temperature of 4300k (natural white), COB produces increased light output without compromising on light quality while minimising current draw.
FEATURES
- COB panels have many advantages over standard single placed SMD’s
- Even lighting distribution being emitted over 180°
- Up to 3 times more intensity than standard 5050 SMD’s
- More light output per surface area
- Super thin, less than 2.8mm in total thickness
- Not polarity sensitive so all the supplied adaptors can be fitted in any orientation
- Fully regulated IC controlled external driver circuit
- Wide voltage range of 9V-36V DC
SPECIFICATIONS :
|
SIZE |
Power (Watts) |
Amps @ 12V |
Lumen (Effective) |
Chip Quantity |
Voltage range |
|
50×35mm |
3.5W |
0.29 |
249 |
76 |
9-36V |
|
64×35mm |
3.7W |
0.31 |
282 |
97 |
9-36V |
|
75×35mm |
4.9W |
0.41 |
359 |
111 |
9-36V |
A standard 28mm long halogen festoon generates 3 watts of power, produces 29 lumens of light and consumes 0.25 Amps @12v (reference Osram P# 6428)

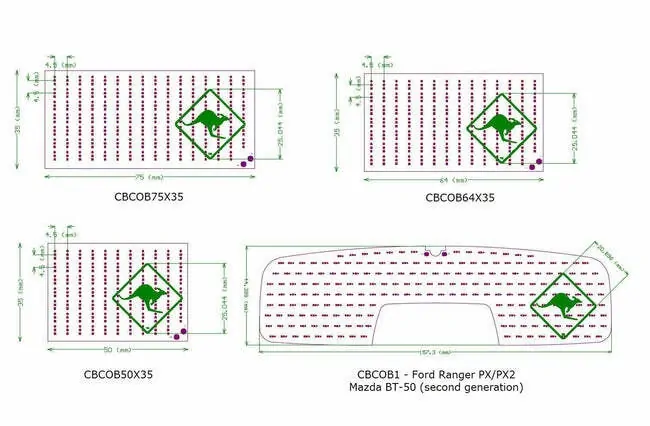

NEED TO DETERMINE THE IDEAL COB PANEL SIZE FOR YOUR VEHICLE?
- Step 1: Remove the existing interior light cover
- Step 2: Measure for the optimum vertical space as shown
- Step 3: Measure for the optimum horizontal space as shown
- Step 4: Reattach the cover of your interior light
- Step 5: Refer to the above COB panel sizing and ensure your optimum allowable space does not exceed the Lightforce options.
| Globe Type | LED |
|---|---|
| Effective Lumens | 359 |
VEHICLE COMPATIBILITY
| MAKE | MODEL |
|---|---|
| Universal | Universal |
| SKU | CBCOB75X35 |
|---|---|
| Barcode # | 9335712027726 |
| Brand | Lightforce |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.050m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |

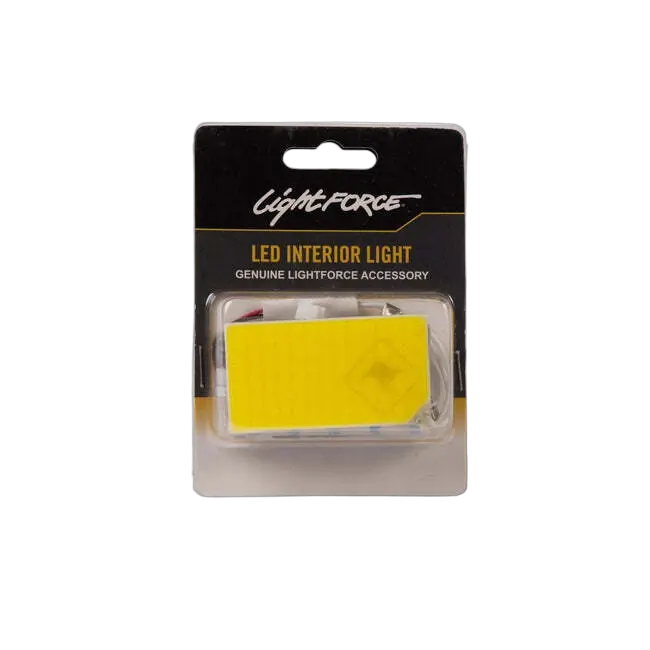

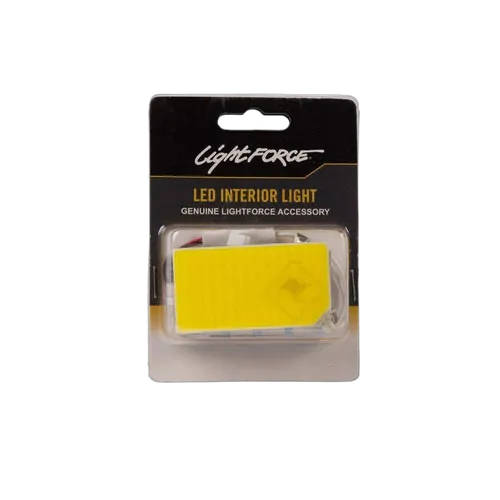

Lightforce Universal Led Interior Lighting Panel
More infoMake 4 payments of $8.78 over 8 weeks and get it now!
Calculate Shipping
